MD-11 Flight Crew Operations Manual
k
FMS -
Controls and Displays
FMS.30.83

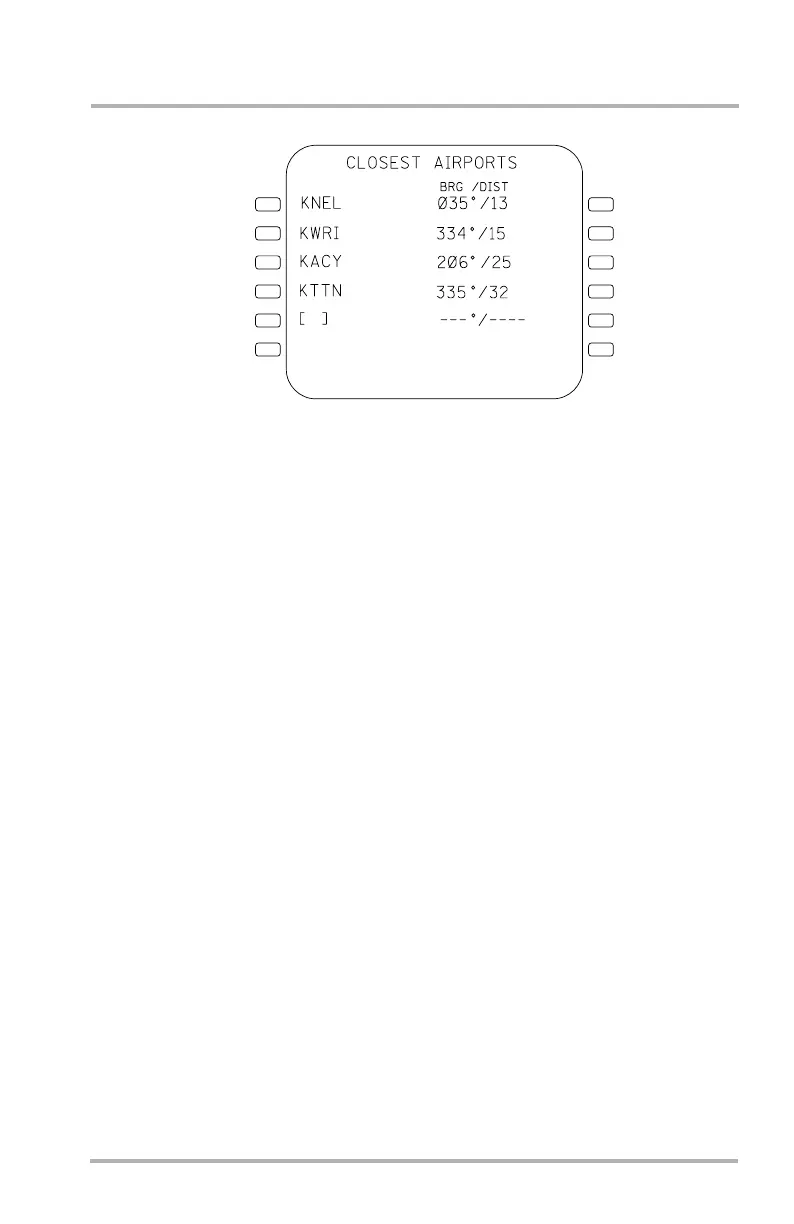

CLOSEST AIRPORTS Page
The airports are displayed in lines 1 through 4, in approximate order of distance
from the aircraft, along with the bearing/distance from the aircraft. Only those
airports within a 4000 nautical mile radius of the aircraft are shown. If there are
no airports within this limit, the message NONE WITHIN 4000 NM will be
displayed across the center of the page.
Airport identifiers may be entered by the flight crew in 5L. Entries into this field
are not restricted by the 4000 NM limit.
Similar to the NONE WITHIN 4000 NM display, CHECK A/C POSITION will
be displayed across the center of the page when the aircraft's position is considered
to be invalid.
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
LB1-3-0109
October 02, 2006
To Next Page
