MD-11 Flight Crew Operations Manual
k
Landing Gear and Brakes -
Controls and Displays
Land.30.2

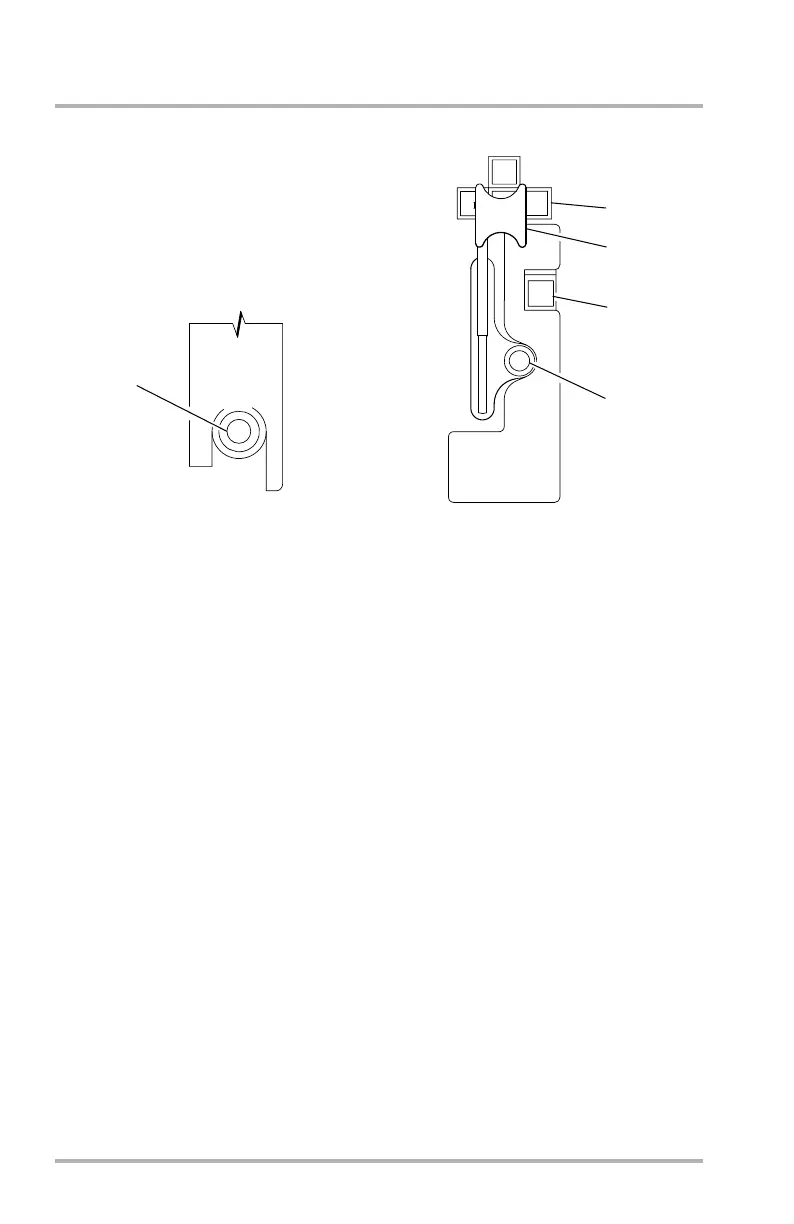

Landing Gear Control Panel
1. GEAR Lights - green/red
Green illuminates when:
• GEAR handle is down and landing gear is down and locked.
• GEAR handle is up and landing gear is down and locked via the alternate
gear extension lever.
Red illuminates when:
• Landing gear is not down and locked and GEAR handle is down.
• Landing gear is in transit or not in agreement with GEAR handle.
• Any unsafe gear condition exists.
All lights are extinguished when the GEAR handle is up and the landing gear
is up and locked.
Red and green illuminate when the respective main gear door maintenance
safety hook is installed.
An unsafe condition on one of the two gear indicating systems does not
require a mandatory visual inspection. Any green indication indicates a safe
gear.
NOTE: Improved gear lights that are red on top and green on bottom.
They are easier to read in direct sunlight.
CENTER INSTRUMENT PANEL
FORWARD PEDESTAL
DB1-2-1769
NOSE
UP
DOWN
260 kias .70m
1
2
3
4
GEAR
HORN
OFF
5
GEAR
UP
CTR
NORM/UP
GE
HANDLE
REL
LE
GHT
GEAR
LIMIT
SPD
EXT
DOWN
RET
300 kias .70m
230 kias .70m
October 02, 2006
