Emergency Equipment -
Controls and Displays
Emer.30.5
Cabin Attendant Oxygen

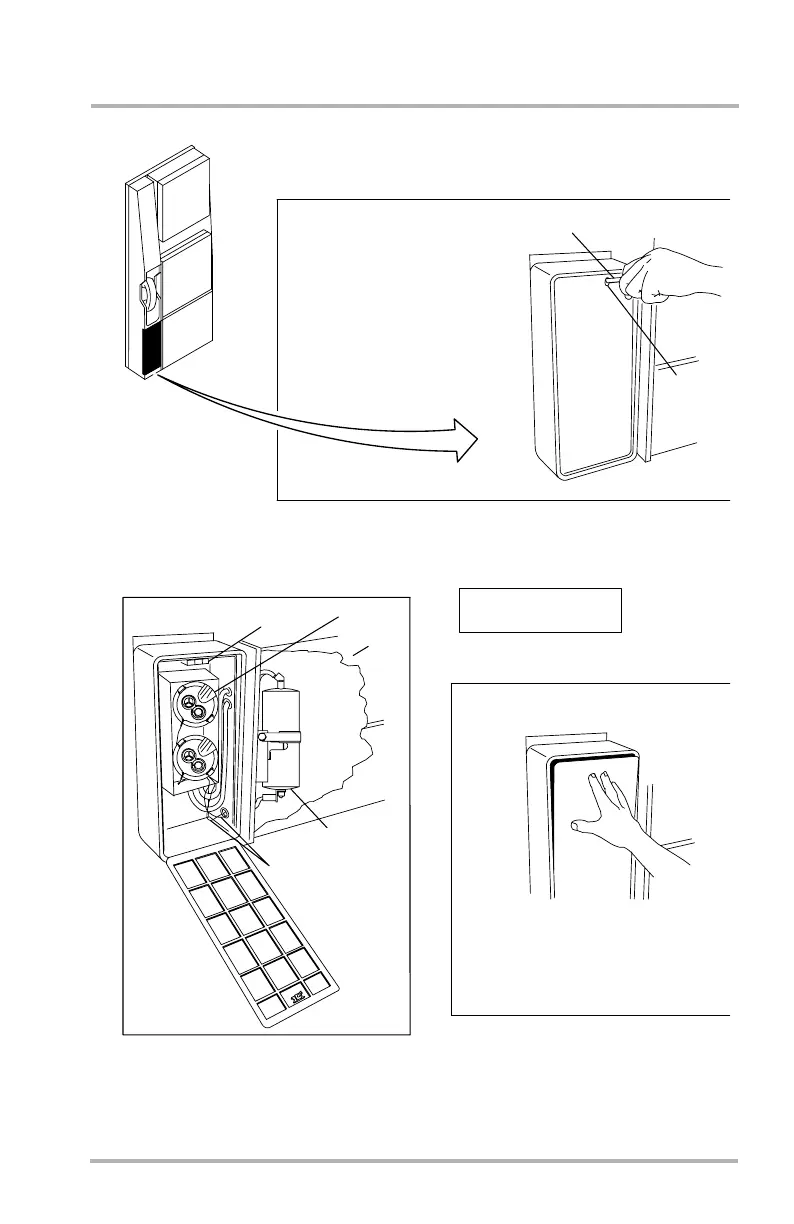

CABIN ATTENDANT
STATION (TYPICAL)
A. OPEN COMPARTMENT
LATCH
RELEASE
HOLE
INSERT SMALL ROUND ROD IN LATCH
B. MASK AVAILABLE
LATCH
SEAT
C. RESET LATCH
D. CLOSE DOOR
1.
ENGAGE DOOR SPRING HINGE AT BOTTOM
OF COMPARTMENT.
2.
MAKE CERTAIN THERE ARE NOT KINKS IN
HOSE AND MASK AND HOSE ARE NOT
BETWEEN DOOR AND GENERATOR.
3.
PUSH DOOR UNTIL LATCH ENGAGES.
Not installed on freighters.
RELEASE HOLE AND PUSH TO RELEASE
LATCH.
DB1-2-1691
NOTE:
SMALL ROUND ROD
OXYGEN
MASK
OXYGEN
GENERATOR
GENERATOR
LANYARDS
October 02, 2006
