Emergency Equipment -
Controls and Displays
Emer.30.14
1. Slide Arming Lever
Arms and disarms the associated escape slide. Lever is normally in the SLIDE
ARMED position for emergency operation with slide deployment. When
lever is held in emergency interlock override position, door may be opened
pneumatically without slide deployment.
2. Door Control Handle
When slide is armed for emergency operation, or slide arming lever is held in
emergency interlock override position, rotating door control handle to
emergency EXIT OPEN position will activate the pneumatic power to open
the door.
NOTES: Door control handle will stay in the emergency door EXIT
OPEN position.
Aft six cabin door control handles will return to stowed position
when released.
3. Slide Mode Indication Window
Indicates whether the escape slide is armed or disarmed.

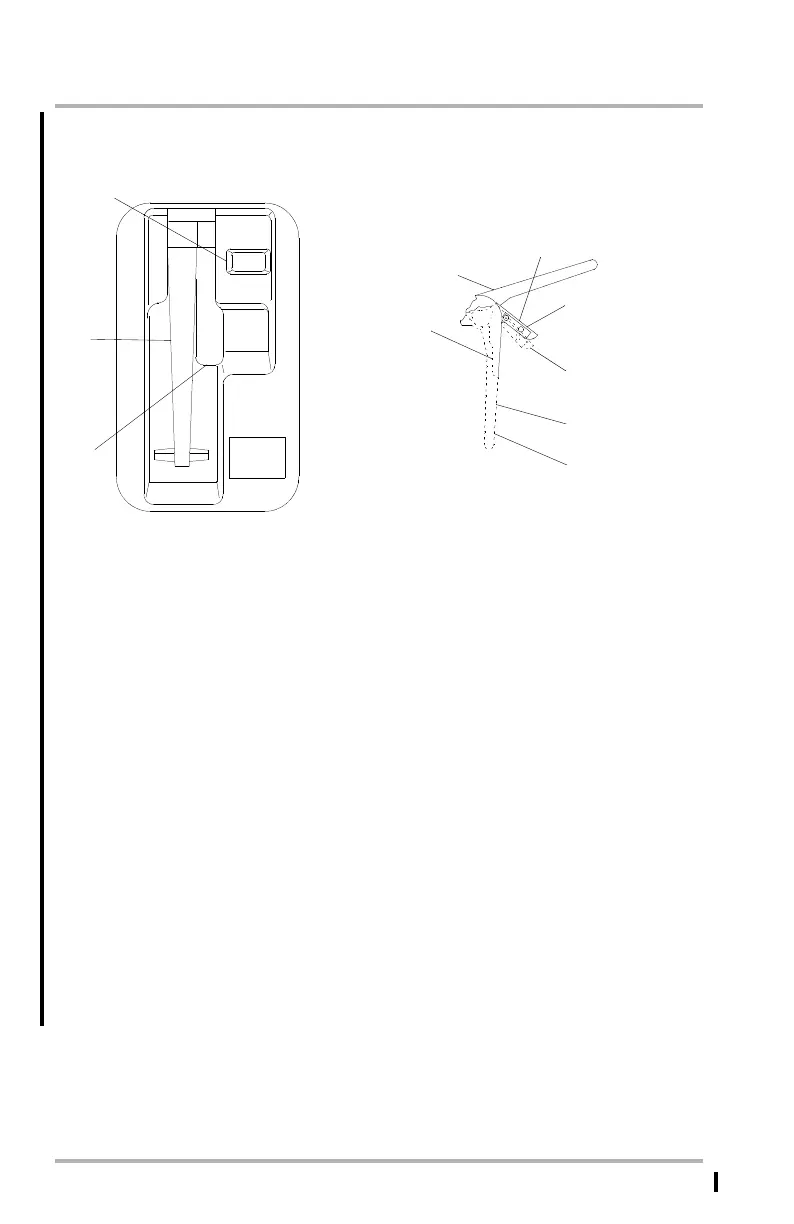

DOOR CONTROLS (Side View)
SLIDE
ARMED
LIFT
HANDLE
TO OPEN
DOOR
PULL PULL
CABIN DOOR INTERIOR CONTROLS (Aft Six)
EMERGENCY
DOOR OPEN
POSITION
ARMED
POSITION
STOWED
POSITION
DISARMED
POSITION
EMERGENCY
INTERLOCK
OVERRIDE
POSITION
3
2
1
DOOR
CONTROL
HANDLE
SLIDE ARMING
LEVER
DB1-2-1696
(View Looking Outboard)
November 16, 2009
