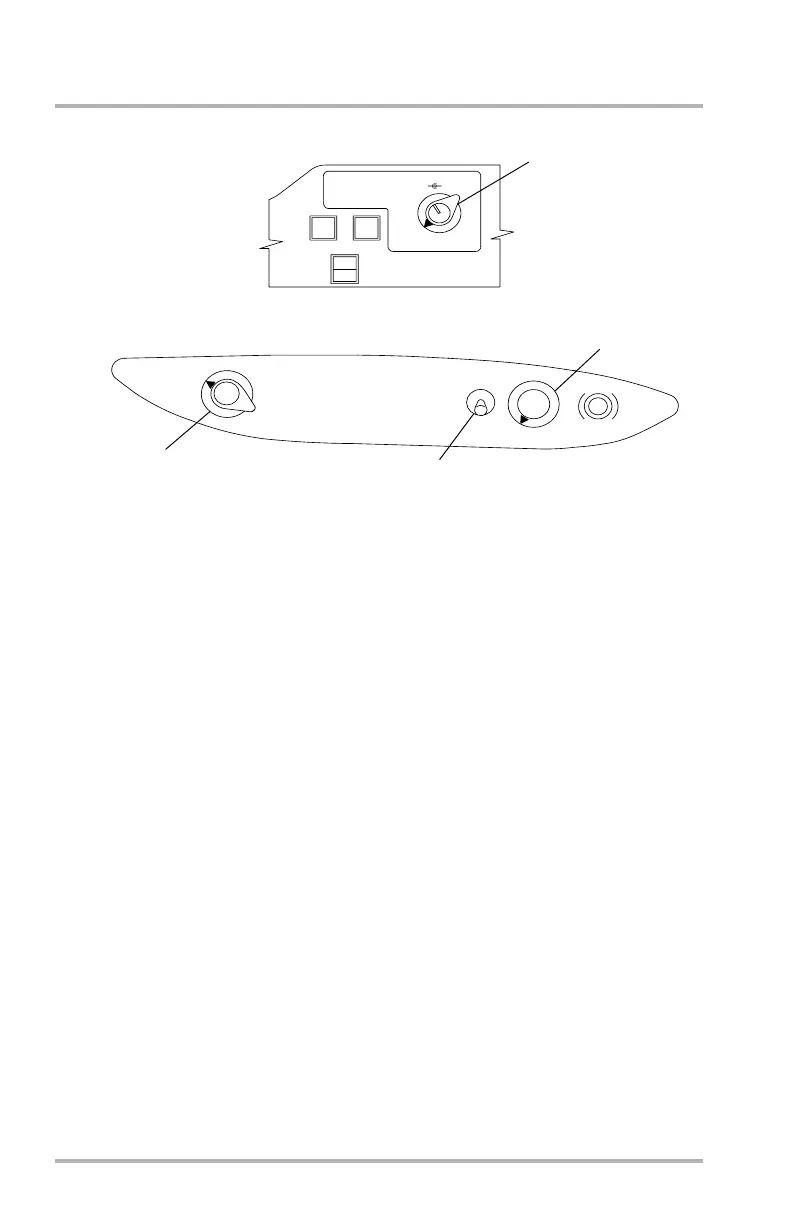

Lighting - Light Control Panel
1. FGS PNL and FLOOD Rheostat
Controls backlighting and floodlighting of flight guidance control panel.
Outer rheostat regulates intensity of flight guidance control panel
backlighting.
Inner rheostat regulates intensity of flight guidance control panel floodlights.
Both rheostats are off when turned completely counterclockwise. Light
intensity increases by turning in a clockwise direction.
2. BRIEFCASE Rheostat
Controls on/off and intensity of briefcase area lighting.
3. LT FLOOR Switch
BRT - Floor lights go to full intensity.
DIM - Floor light intensity is reduced.
OFF - Turns floor lights off.
4. TIMER Knob
Push one starts the clock timer on ND. Push two stops the clock timer. Push
three resets clock timer to 00:00.
UP - Timer on ND counts up from 0.
DN - Timer counts down from a preselected time. Preselected time is set on
the MCDU Approach page and will also appear on the ND.
