MD-11 Flight Crew Operations Manual
k
FMS -
Controls and Displays
FMS.30.63
Flight Reference Information Pages

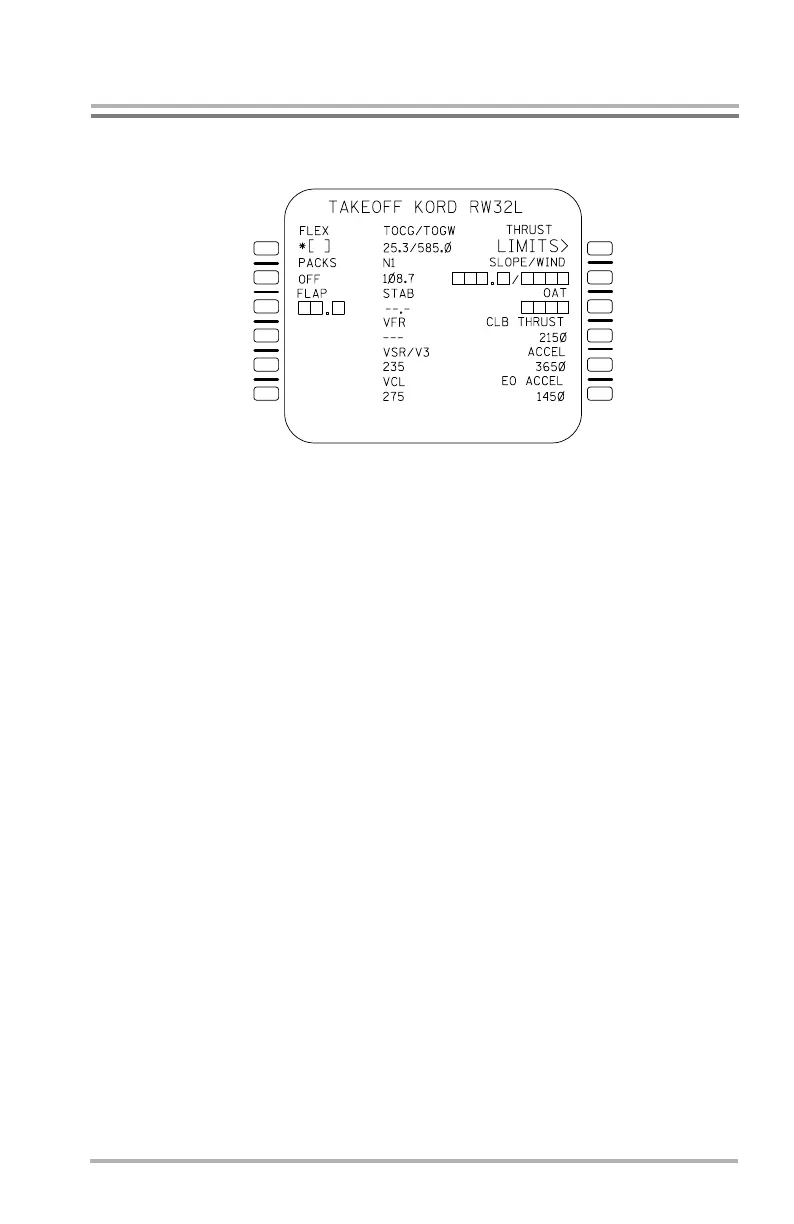

TAKEOFF Page
This page is accessed by pushing the TO/APPR mode key prior to or during
takeoff. It displays pilot-entered and calculated takeoff data. Once this page is
exited it will no longer be accessible after the takeoff phase.
Line 1L allows the flight crew to enter an assumed temperature for a FLEX TO
thrust rating. FLEX entries on this page will also be entered on the THRUST
LIMITS page, and vice versa. Range is from TAT to 70 degrees C. TAT from the
ADC will be displayed to the right of FLEX values. TAT is not pilot alterable. To
regain full thrust the assumed FLEX temperature may be cleared.
Line 2L displays the expected packs setting which may be toggled from OFF
(small font) to ON (large font) by pushing LSK 2L. The PACKS OFF or ON
signal controls automatic pack operation during takeoff. To the right of the
PACKS field, the N1/EPR computed thrust rating will be displayed (small font)
and cannot be changed.
Line 3L allows the flight crew to enter the flap setting. Range is from 10 degrees
to 25 degrees. For aircraft equipped with takeoff deflected ailerons there is also a
28 degrees flap setting. To the right of FLAP values, the stabilizer (STAB)
position is displayed in small font and cannot be altered. If, after inserting a FLEX
temperature for a reduced thrust takeoff, full power takeoff is desired, pushing the
GA button will reset all takeoff data and thrust settings to full power. Changing
the active runway in the MCDU will accomplish the same actions. Either of these
actions will require reconfirming takeoff data in the FMS.
TOCG/TOGW - These values are the same numbers as on the WEIGHT INIT
page. After engine start, the TOGW on the WEIGHT INIT page changes to GW.
As fuel is used, both pages reflect the change.
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
V1
---
VR
---
V2
---
LB1-3-0102
October 02, 2006
