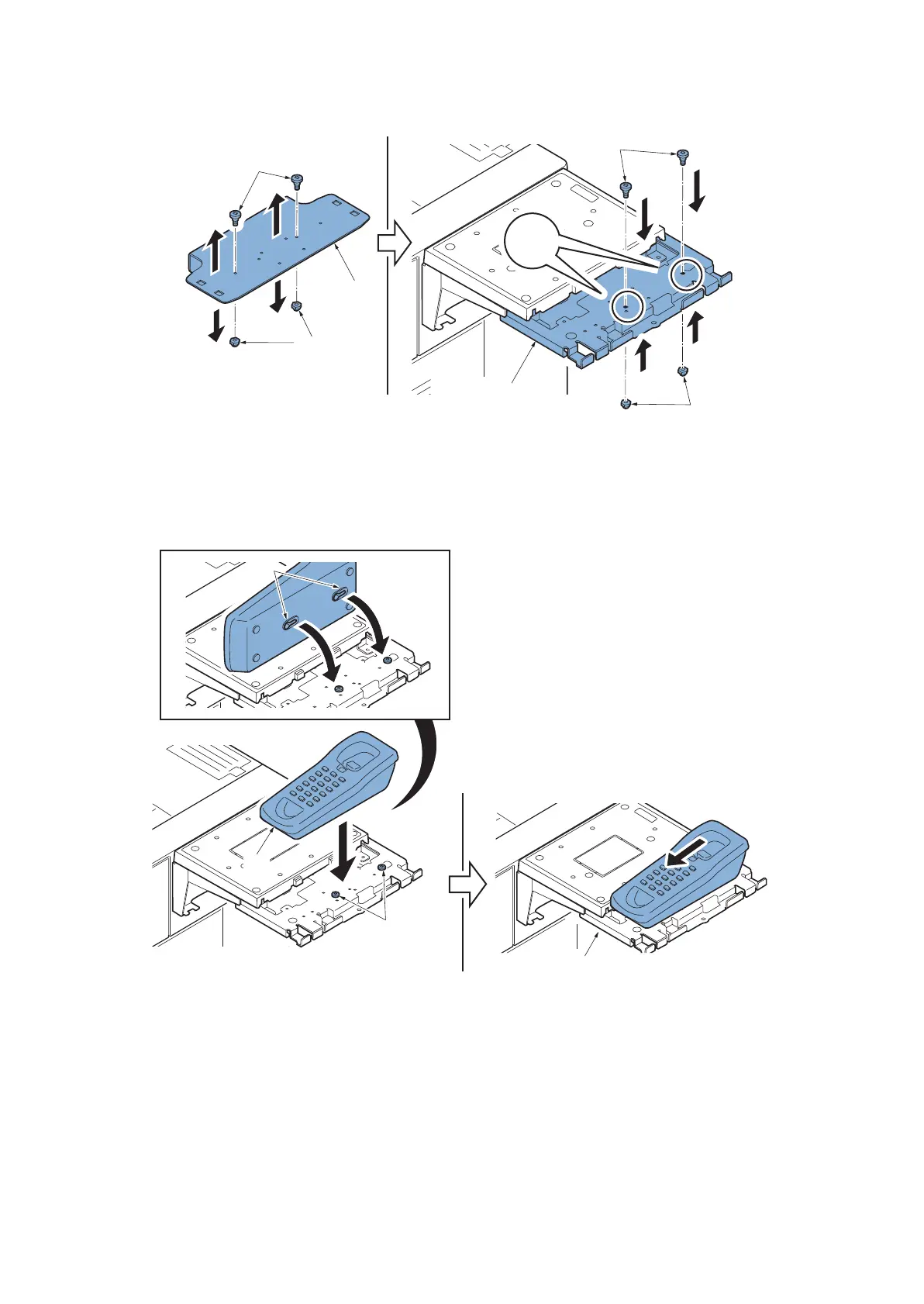

17. Remove two pins (b) and two nuts (c) from the handset mounting plate (a).
18. Secure the original tray (d) with two pins and two nuts once removed.
Figure 2-180
19. Put two catches (c) at the backside of the handset holder (b) into two pins (a) and slide it toward you to fix it on the
document tray (d).
Figure 2-181
