(2-5) Left cassette paper feed
As well as the right-hand cassette, the paper fed by the left-hand cassette is transferred by the rotation of PF
forwarding pulley 2 (a) and PF paper feed pulley 2 (b) which are driven by the PF paper feed clutch 2.
The fed paper (c) is prevented from multiple-page feeding by PF separation pulley 2 (d), and is fed out by PF
paper feed roller 2 (e), and then is fed into the main unit by PF left conveying roller (f) and PF right conveying
roller (g).
The PF separation roller 2 (d) is equipped with a torque limiter which prevents multi-page feeding to the main
unit.

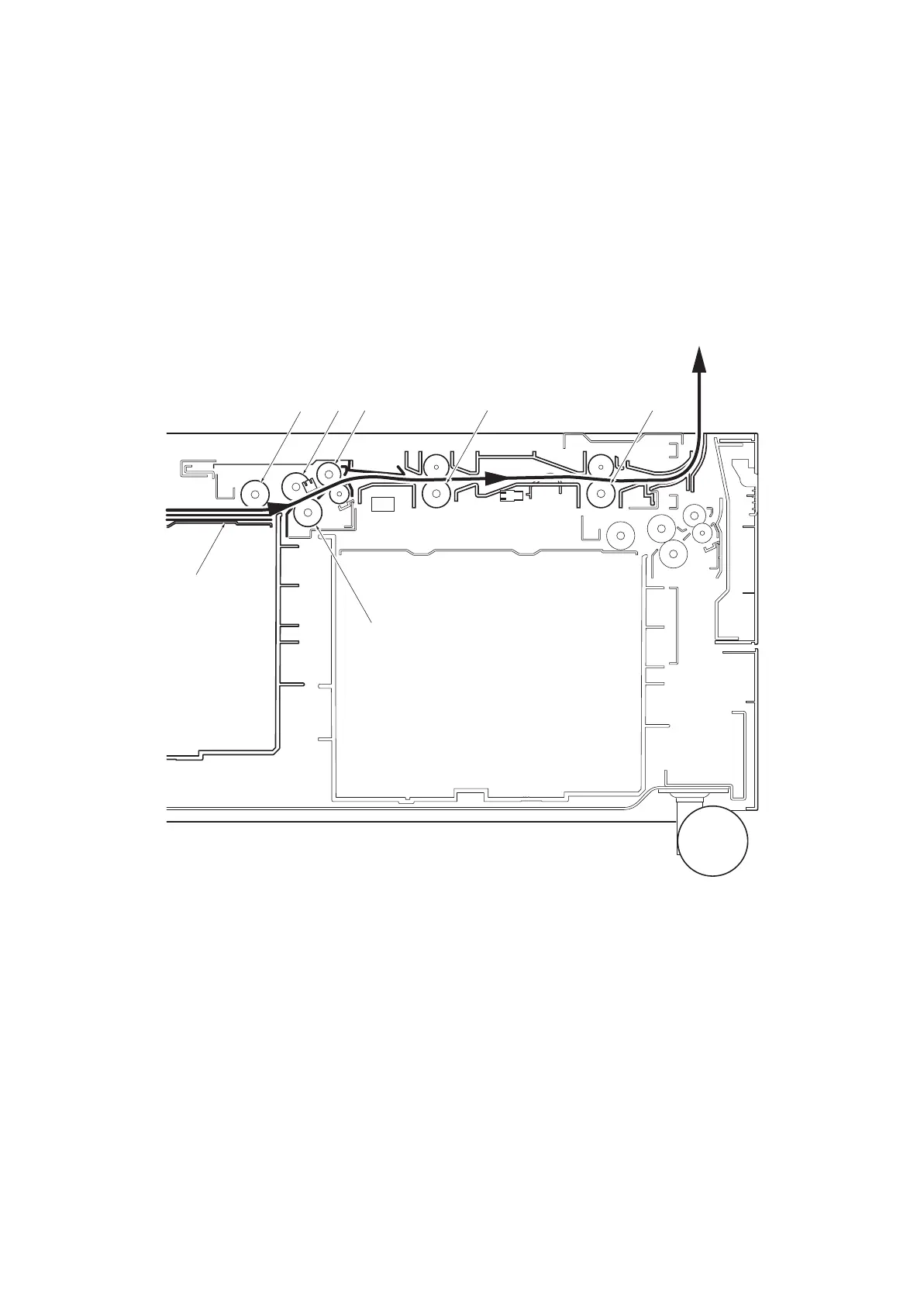

Figure 3-70
b
a
d
c
e
g
f
