2WA/2NJ/2RK
4-125
(4-3) Detaching and reattaching the fuser drive unit and feed drive unit
Detaching the fuser drive unit
Procedures

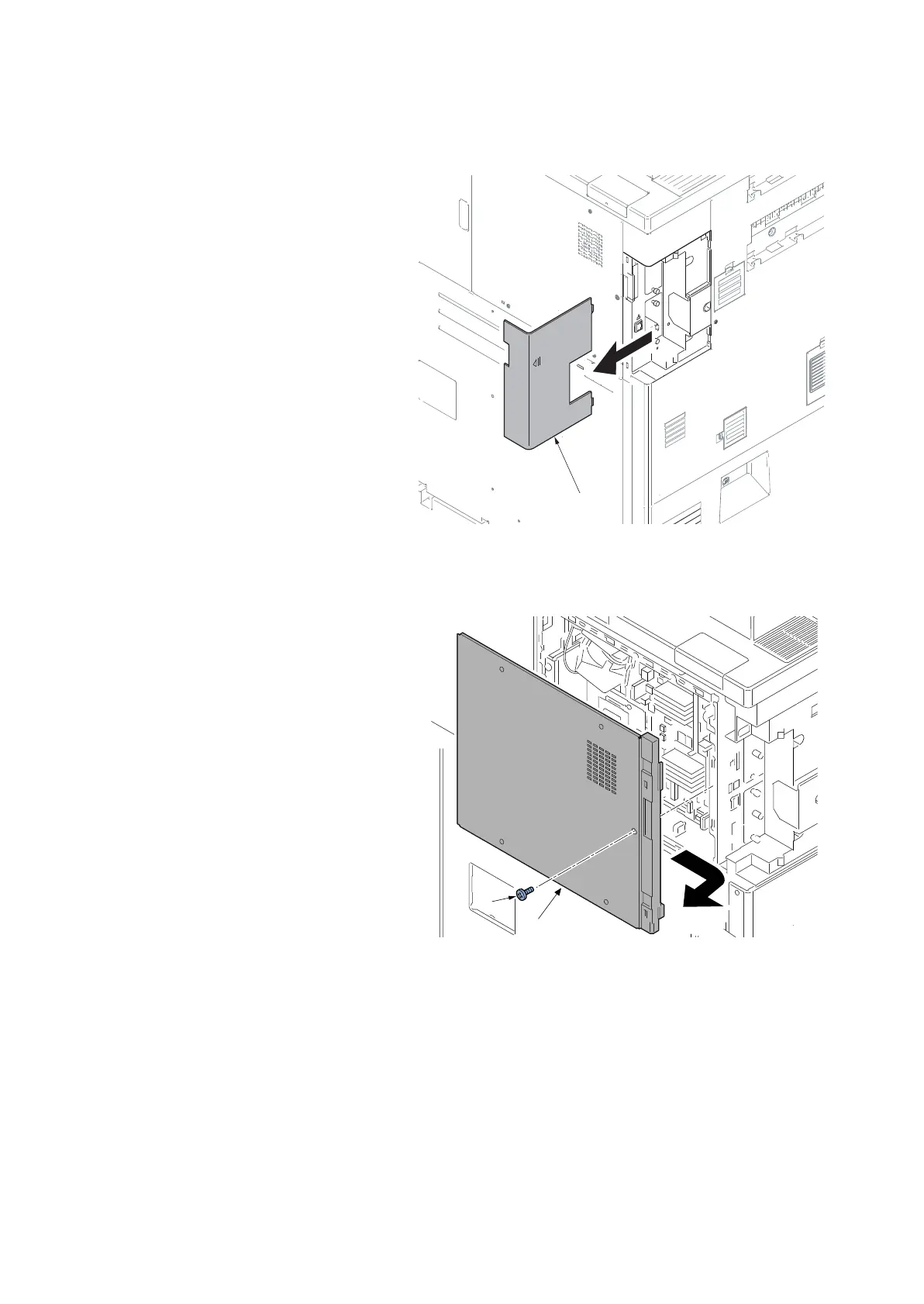

1. Remove the controller cover (a).
Figure 4-187
2. Remove the screw (a)(M3x8TP) and
remove the rear left cover (b) by sliding
it in the direction of the arrow.
Figure 4-188
OPT1
a
14j0200
b
a
14j0201
To Next Page
