Kyocera TASKalfa 8002i

2WA/2NJ/2RK
4-184
(7-3) Detaching and reattaching the power source PWB
Procedures
1. Remove the screw (a)(M3x8TP) and
remove the rear left cover (b) by sliding
it in the direction of the arrow.

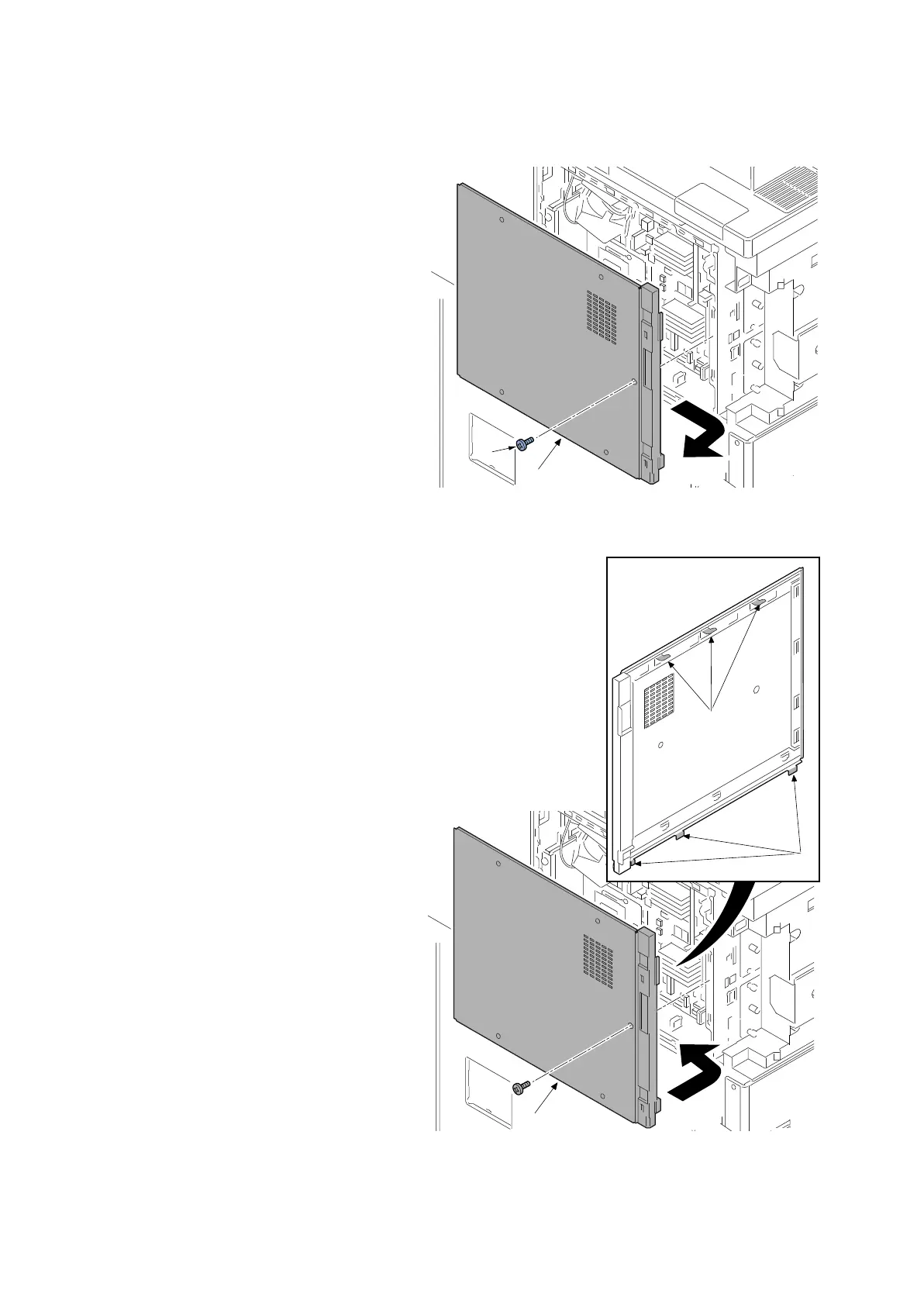

Figure 4-269
*: When reattaching the rear left cover (c),
latch three lower hooks (a) and then
latch three upper hooks (b) while sliding
in the direction of the arrow.
Figure 4-270
b
a
14j0201
a
c
b
14j0202
