2NJ/2RK
2-115
(9-3) In case of Paper Feeder (PF-740(B))
Cassette heater installation requires the following parts:
Cassette heater 100 set (303NF9412_) 1 pc
Cassette heater 120 set (303NF9413_)
Cassette heater 240 set (302NF9414_)
Bundled parts of cassette heater 100/120/240 set
Cassette heater 100 (302H74507_) 1 pc
Cassette heater 120 (302H74509_)
Cassette heater 240 (302H74508_)
High temperature caution label 1 pc
Wire saddles 3 pcs
Screws (M3x8 S-tite) 2 pcs
Screw (M4x8 S-tite) 1pc
Connector cover 1pc
Procedures
1. Turn the power switch off and disconnect the power plug.

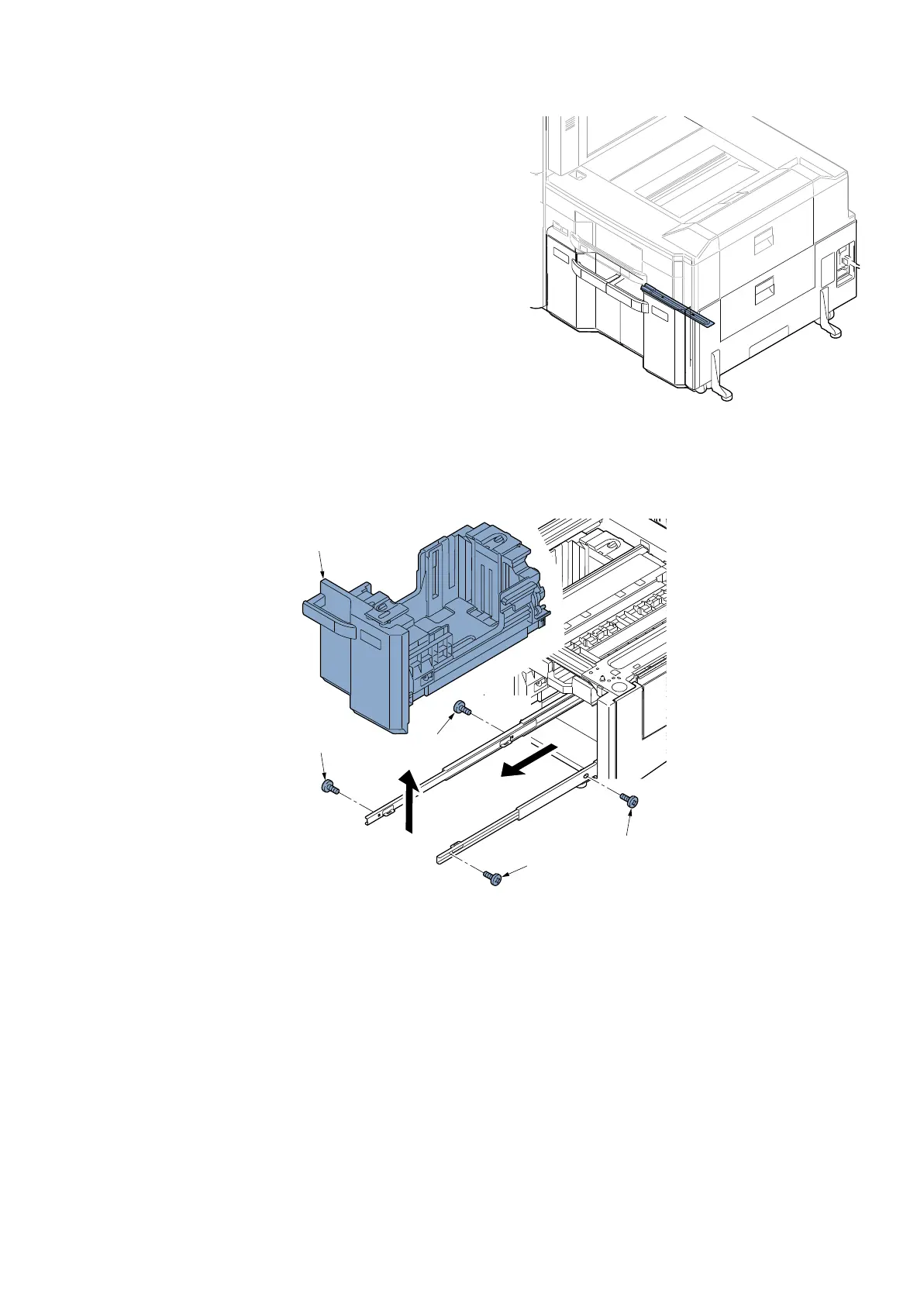

2. Pull out the right cassette (a).
3. Remove the four screws(b)(M4×8) and detach the right cassette (a).
Figure 2-220
To Next Page
