(2) Paper feed section
(2-1) Detaching and reattaching the primary paper feed unit
Procedures
1. Pull out the paper cassette 1, 2, 3 and
4.
2. Pull out the conveying unit (a).
3. Open the conveying cover (b).
4. Remove the strap (c) and then remove
the conveying cover (b).

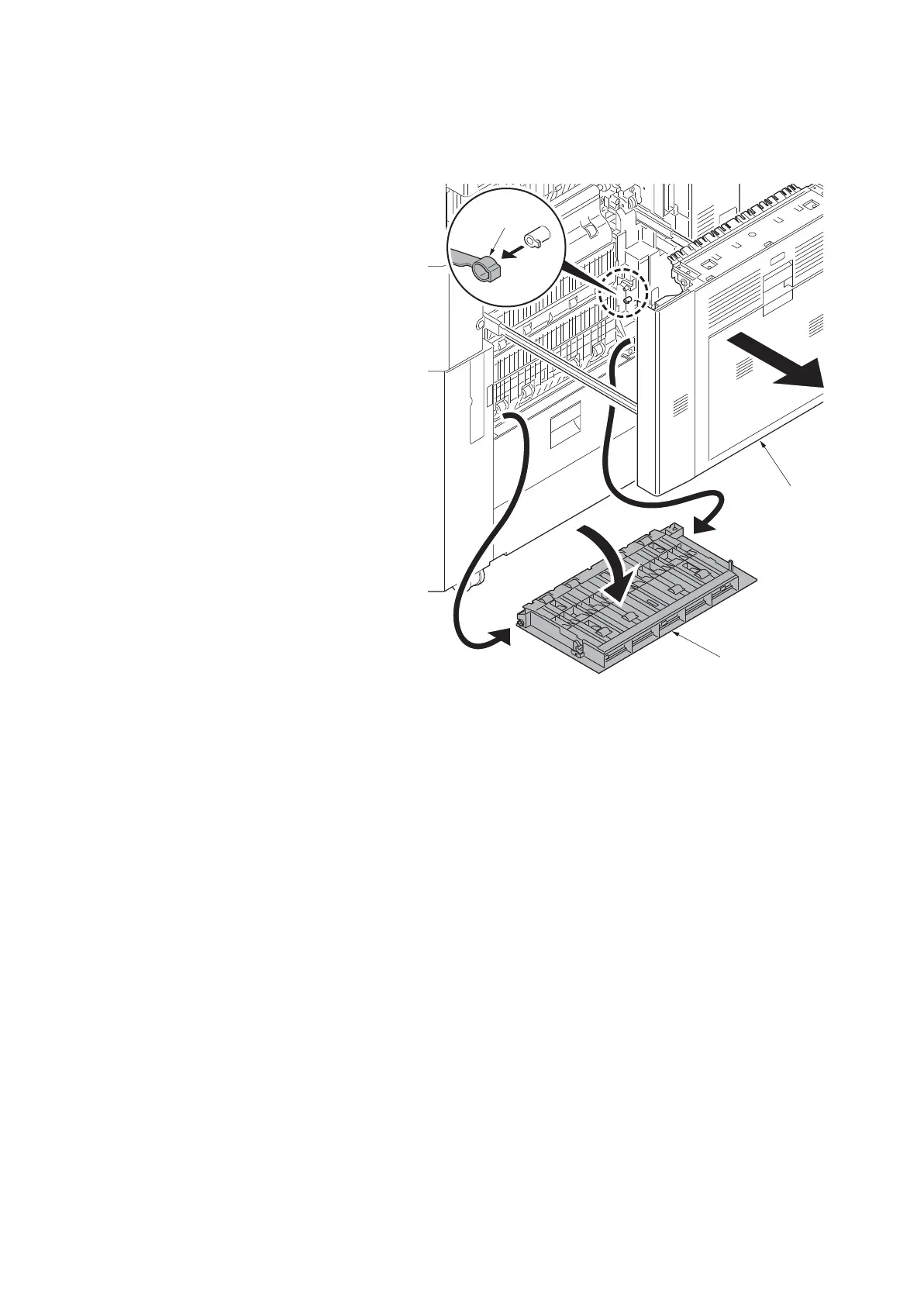

Figure 4-130
a
b
c
14j0207
