(3) Side feeder (PF-7120)
(3-1) Detaching and reattaching the PF drive unit
Procedures
1. Remove four screws (a)(M4x8).
2. Remove PF rear cover (c) from the
paper feed unit (b).

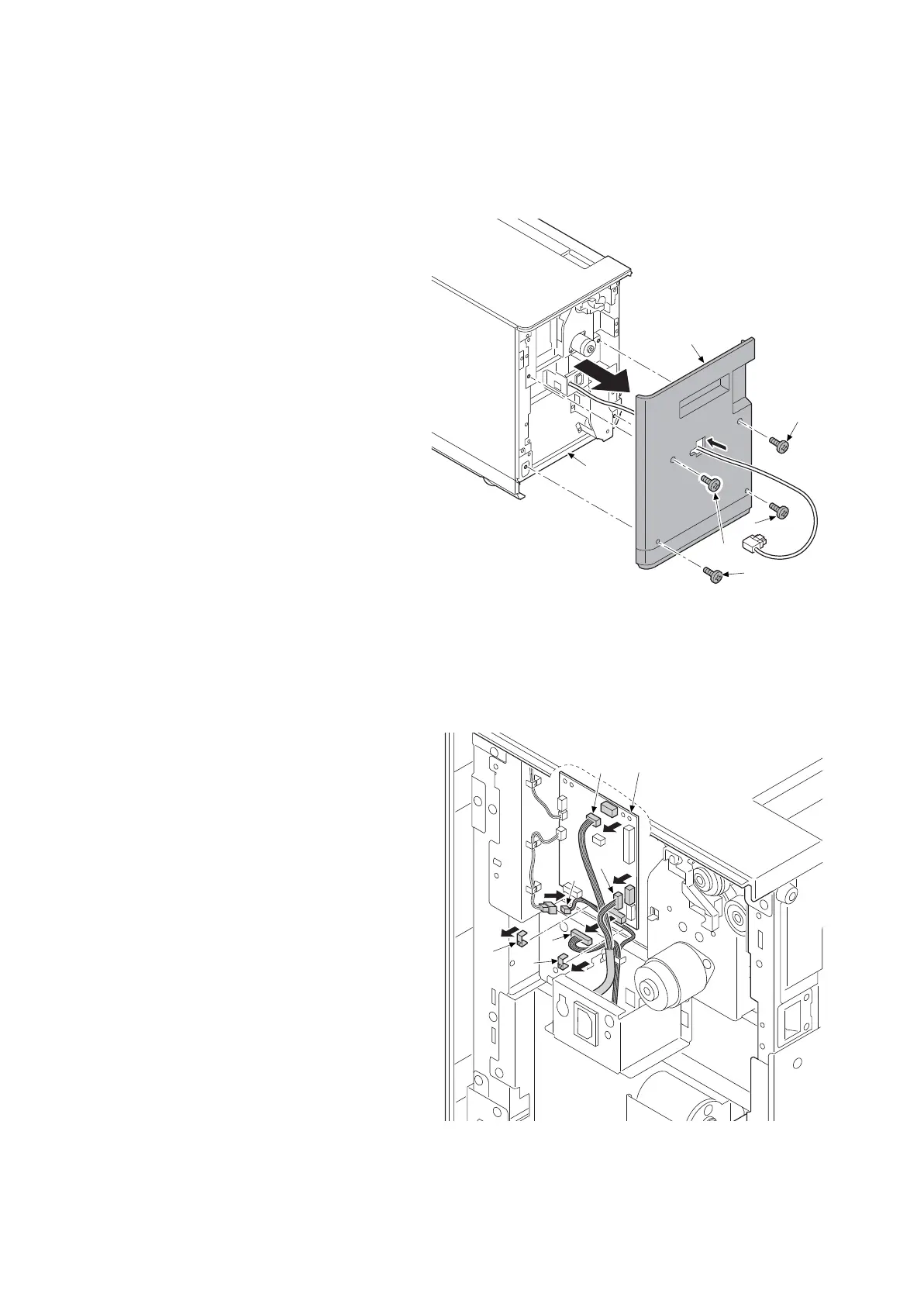

Figure 4-353
3. Disconnect the three connectors (a)
and the connector (b) from the PF main
PWB (d).
4. Remove two wire stoppers (c) and
remove the wire.
Figure 4-354
a
a
a
b
c
a
14j0537
a
a
b
c
c
a
d
14j0538
