2NJ/2RK
2-12

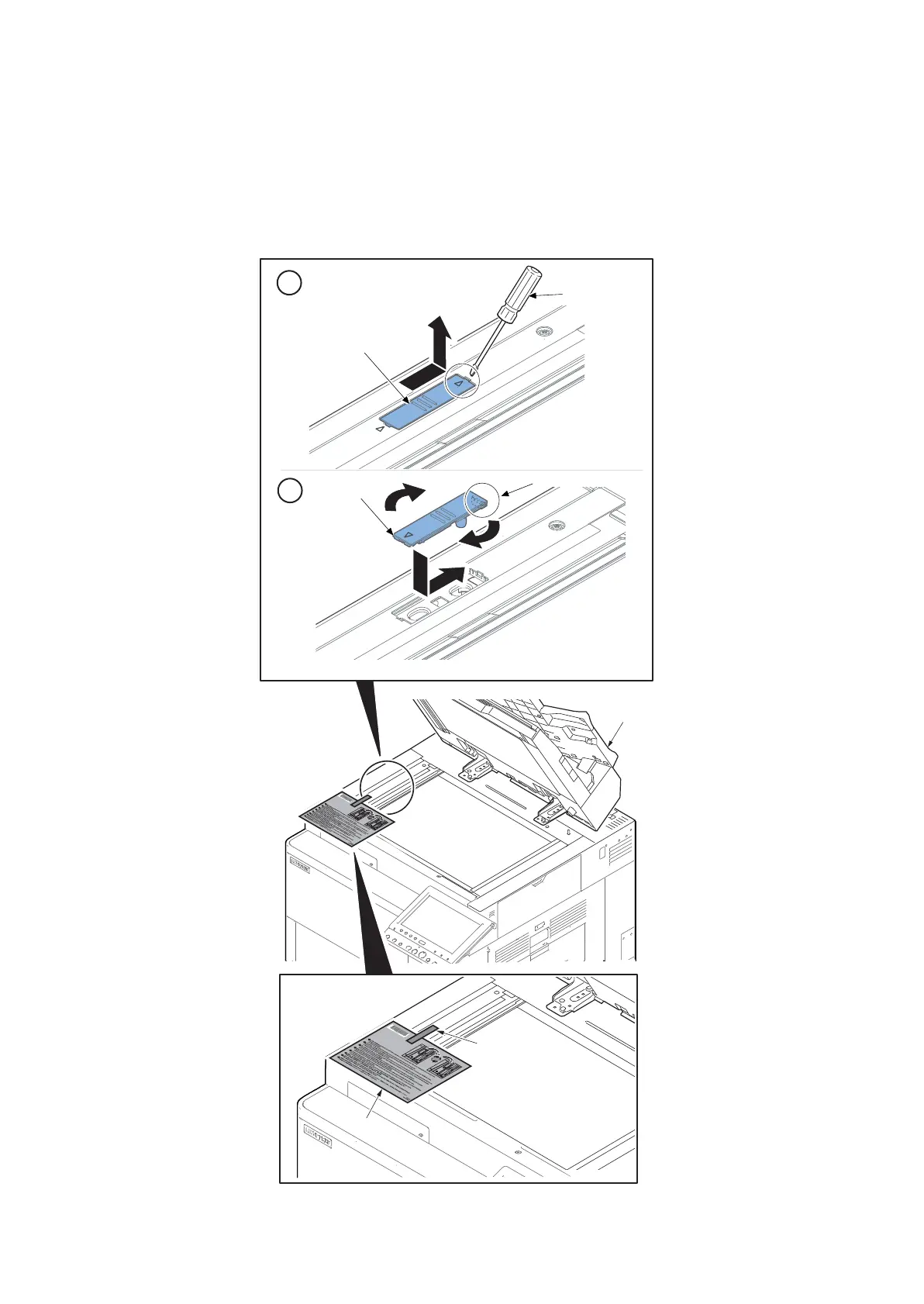

(5) Release the lock of the scanner mirror frame
1. Open the document processor(a).
2. Detach the tape(e) and then detach the ISU lock leaflet(f).
3. Raise the triangle mark side of the optical lock cover (c) with a flat-blade screwdriver (b) and slide it in the direction
of the arrow to remove it.
4. Place it reversely and put the optical lock cover (c) into the aperture of the hook (d) to fit in the direction of the
arrow.
*: Unless unlocking is performed, C3100 is caused.
Figure 2-15
c
c
d
22
1
2
b
a
f
e
