2WA/2NJ/2RK
4-228

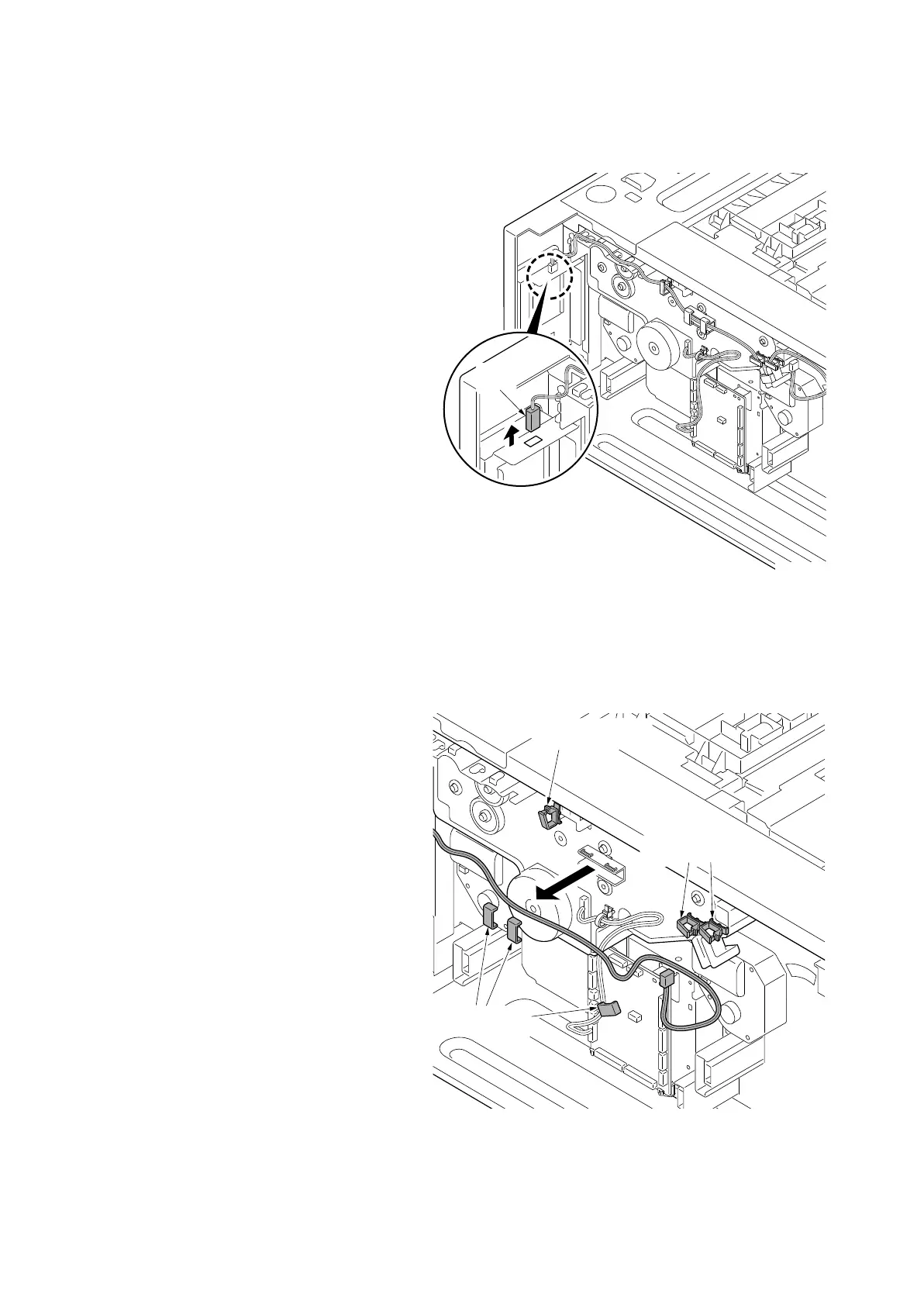

(2-2) Detaching and reattaching the PF drive unit
Procedures
1. Remove the rear cover.
2. Remove one end of AC wire connector
(a) from the paper feeder.
Figure 4-348
3. Remove three wire holders (a).
4. Release three wire saddles (b) and
remove the wire.
Figure 4-349
a
14j0532
b
a
b
14j0533
To Next Page
