Kyocera TASKalfa 8002i - (13) Duplex conveying section

2WA/2NJ/2RK
3-73
(13)Duplex conveying section
The duplex conveying section consists of the paper conveying path to forward the paper from the feedshift/
switchback section in the duplex print to the conveying section.

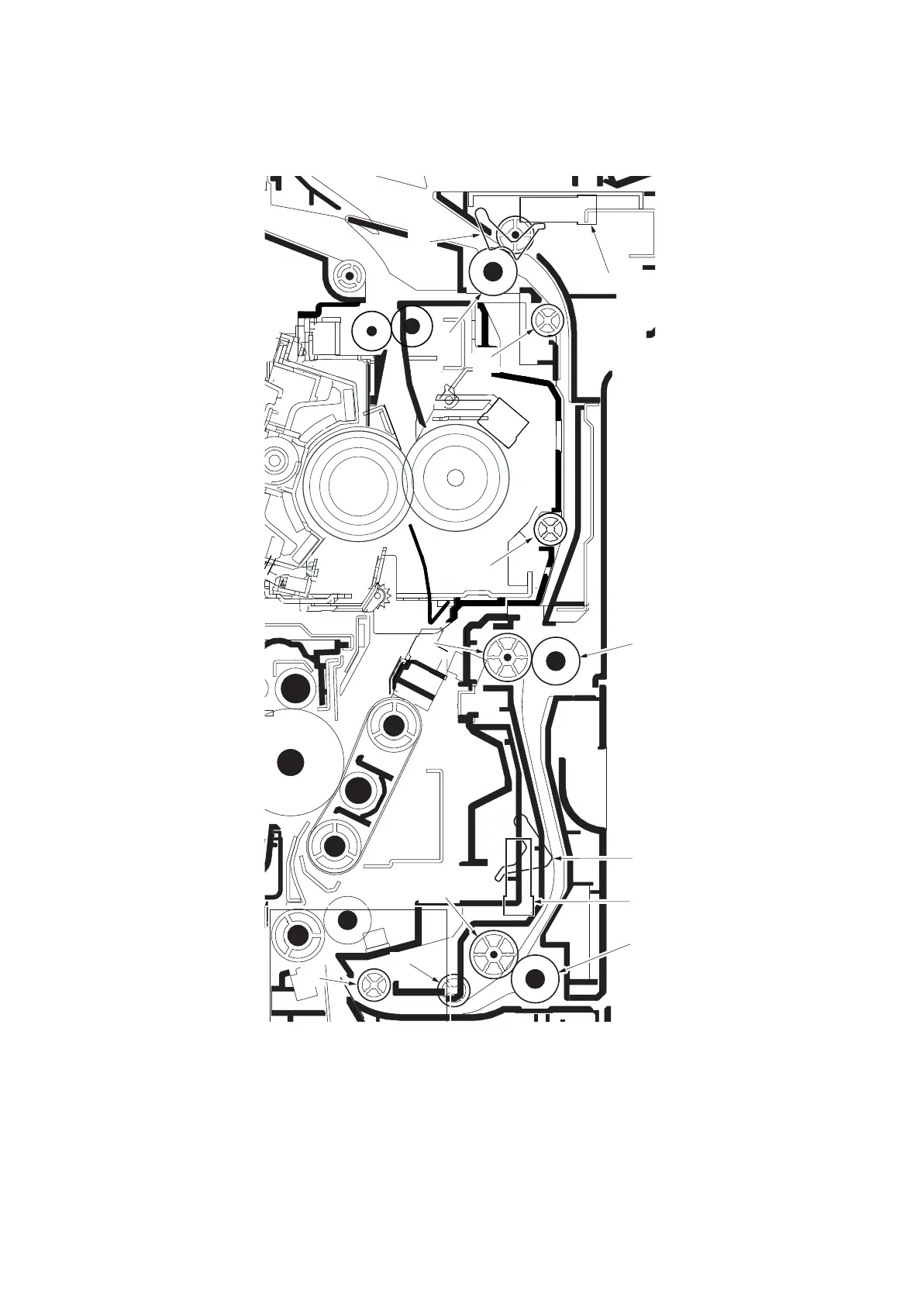

Figure 3-57
6
4
4
2
5
9
8
3
5
7
4
4
1
1. Upper duplex roller
2. Middle duplex roller
3. Lower duplex roller
4. Duplex pulley A
5. Duplex pulley B
6. Duplex sensor 1
7. Actuator(Duplex sensor 1)
8. Duplex sensor 2
9. Actuator(Duplex sensor 2)
