(3) Side feeder (PF-7120)
(3-1) Detaching and reattaching the pickup pulley and paper feed roller
Procedures
1. Pull out the deck.
2. Remove the screw (a)(M3x8) and
detach the wire cover (b).

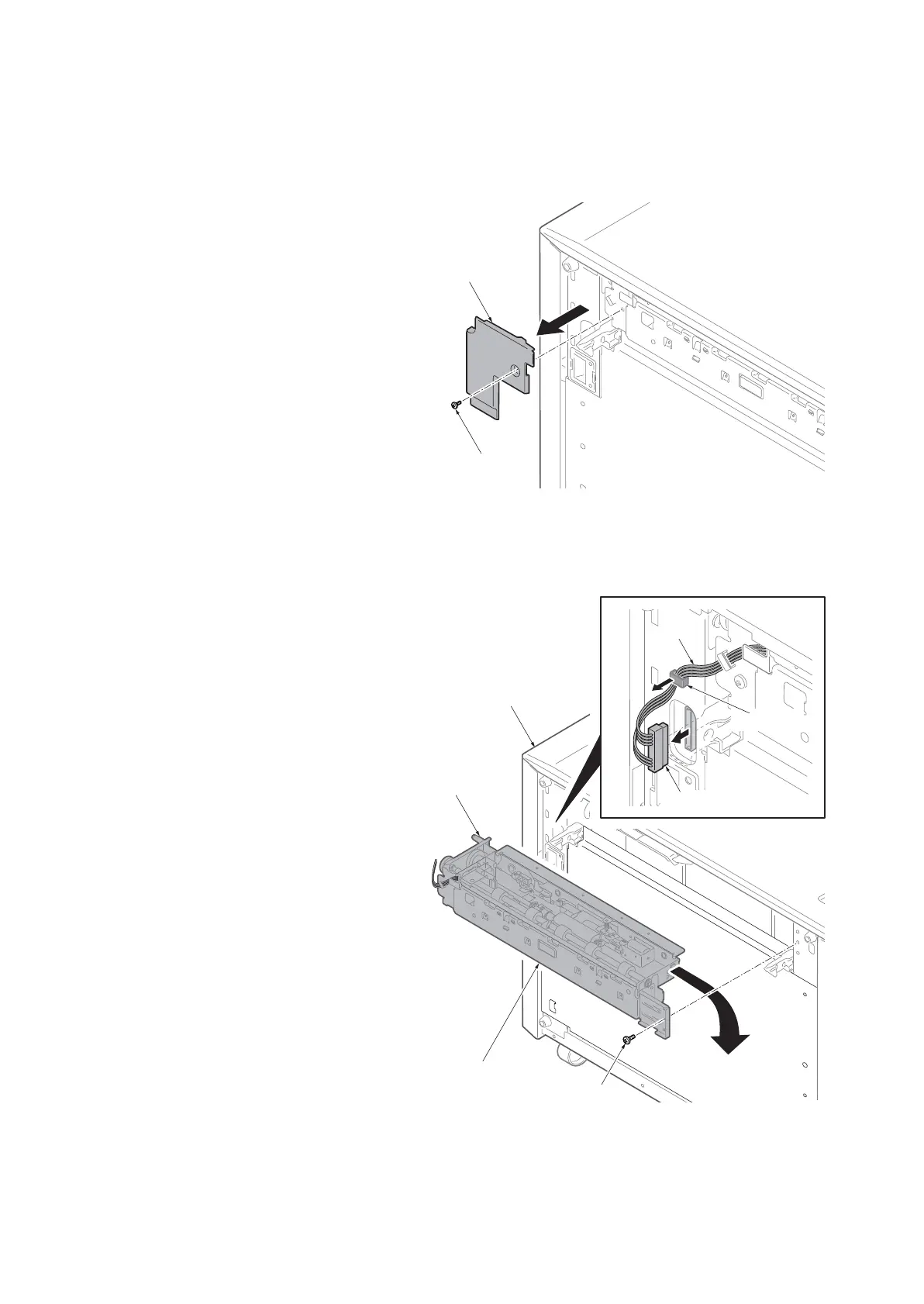

Figure 4-90
3. Disconnect the connector (b) of the
main unit (a).
4. Release the wire (d) from the clamp (c).
5. Remove the screw (e)(M3x8).
6. Slide the PF feed unit (f) frontward and
remove it while rotating it by using the
positioning shaft (g) as fulcrum.
Figure 4-91
14j0104
b
a
a
b
c
d
e
f
g
14j0105
