Kyocera TASKalfa 8002i

2WA/2NJ/2RK
4-174
Notes when replacing the engine PWB
When replacing the engine PWB, make sure to remove the EEPROM (U1) from the old board and install it in
the new board.

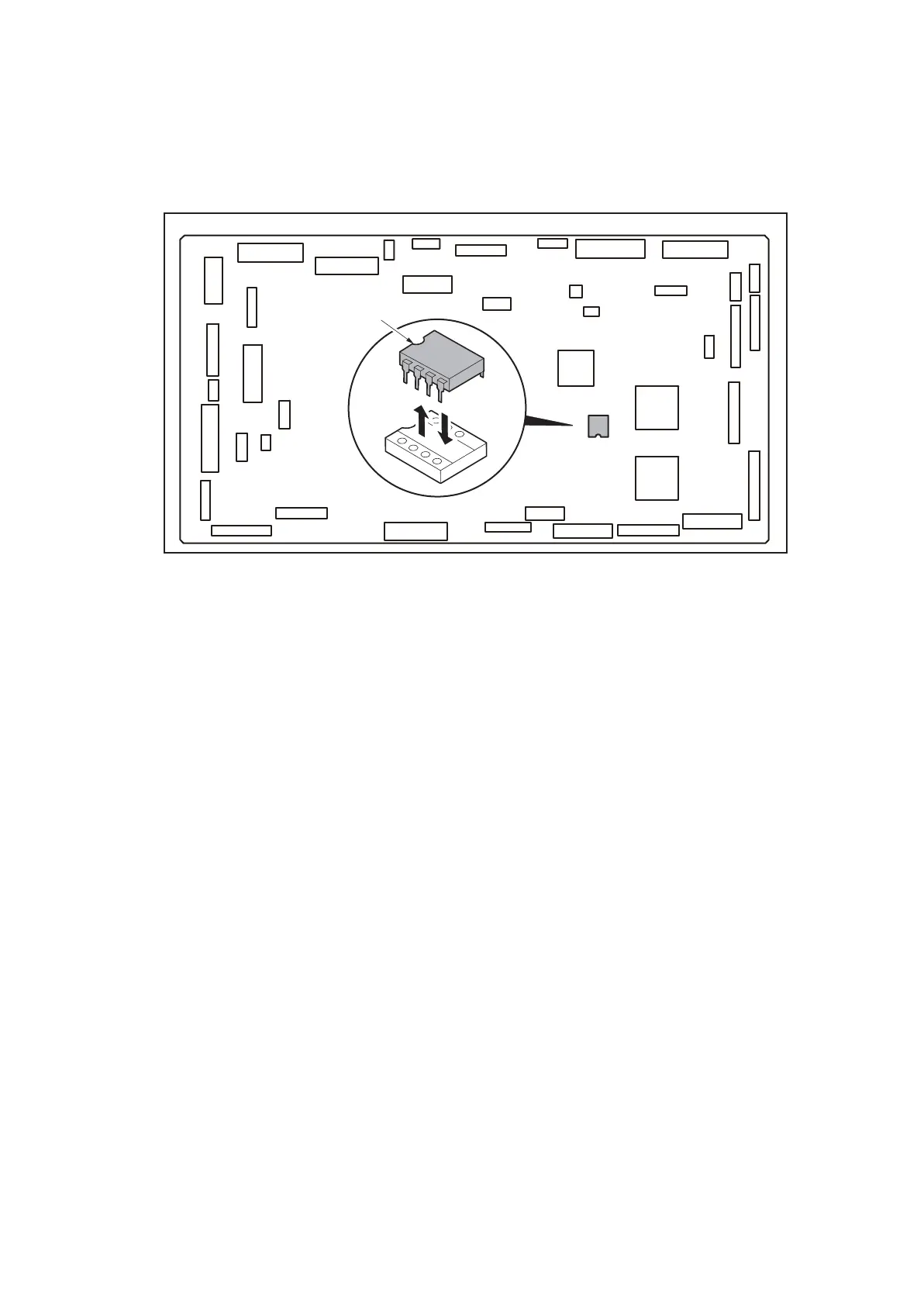

Figure 4-256
Execute the following setting after replacing the engine PWB.
Auto scanner adjusting (maintenance mode U411): Table(ChartA)
Adjust using the digital color chart (part number: 7505000005).
U1
YC18
YC39
YC38
YC37
YC7
YC4
YC6
YC17
YC20
YC33
YC16
YC43
YC42
YC40
YC21
YC13
YC35
YC12
YC34
YC11
YC10
YC5
YC9
YC8
YC36
YC19
YC41
YC23
YC28
YC13
YC1
YC24
YC25
YC44
YC27
YC22
YC32
YC29
14j0409
EEPROM
