M–20
LOCATION INDEX

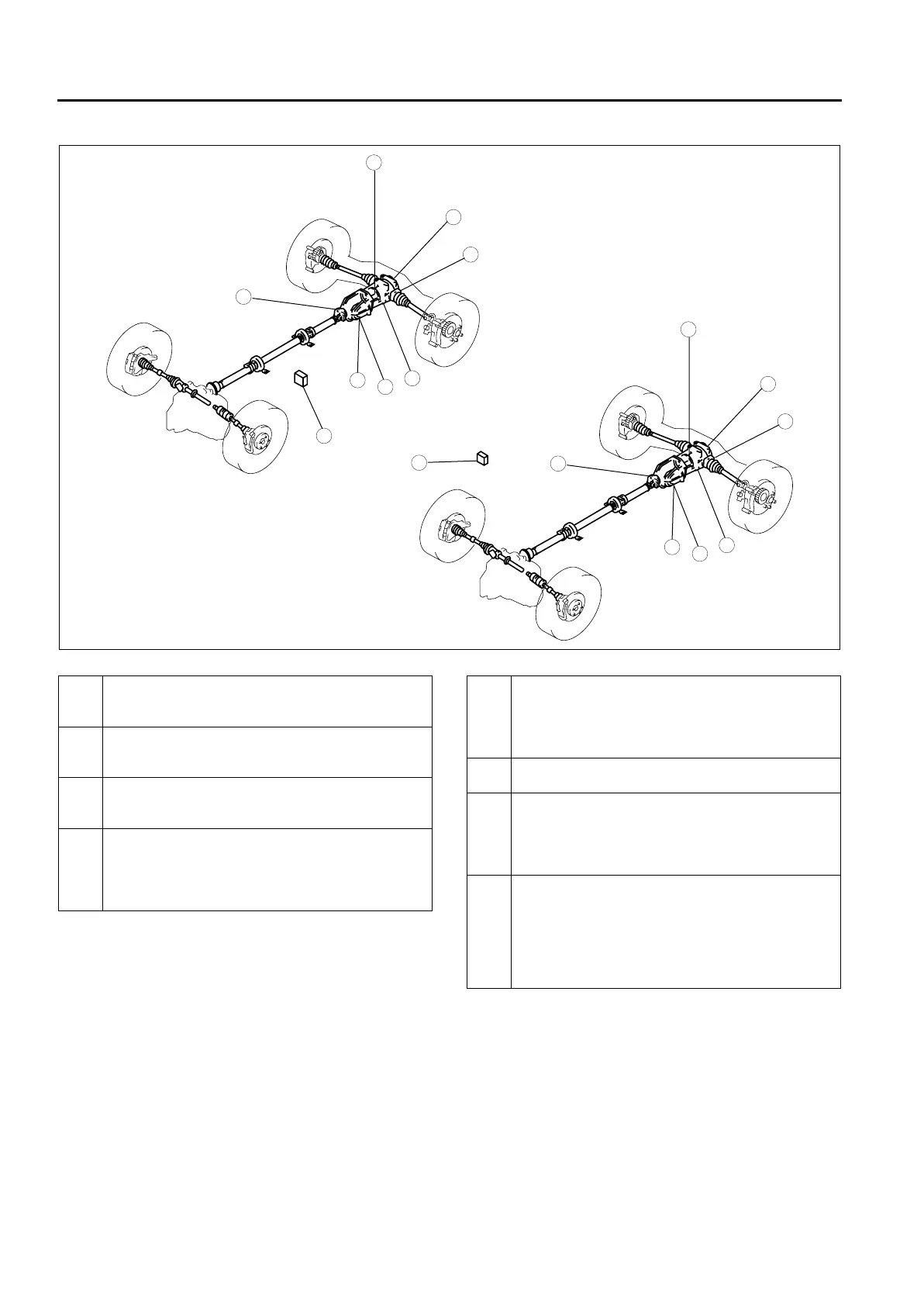

REAR DIFFERENTIAL/ELECTRONIC 4WD CONTROL SYSTEM LOCATION INDEX
A6E630027100201
.
End Of Sie
8
7
5
4
3
6
1
2
8
7
5
4
3
6
1
2
L.H.D.
R.H.D.
A6J63002002
1 Differential oil
(See M–48 DIFFERENTIAL OIL INSPECTION)
(See M–48 DIFFERENTIAL OIL REPLACEMENT)
2 Oil seal (side gear)
(See M–49 OIL SEAL (SIDE GEAR)
REPLACEMENT)
3 Oil seal (companion flange)
(See M–49 OIL SEAL (COMPANION FLANGE)
REPLACEMENT)
4 Rear differential
(See M–51 REAR DIFFERENTIAL REMOVAL/
INSTALLATION)
(See M–52 REAR DIFFERENTIAL DISASSEMBLY)
(See M–56 REAR DIFFERENTIAL ASSEMBLY)
5 Differential oil temperature sensor
(See M–65 DIFFERENTIAL OIL TEMPERATURE
SENSOR INSPECTION)
(See M–65 DIFFERENTIAL OIL TEMPERATURE
SENSOR REMOVAL/INSTALLATION)
6 4WD solenoid
(See M–66 4WD SOLENOID INSPECTION)
7 4WD control module
(See M–66 4WD CONTROL MODURE
INSPECTION)
(See M–67 4WD CONTROL MODURE REMOVAL/
INSTALLATION)
8 Coupling component
(See M–68 COUPLING COMPONENT REMOVAL/
INSTALLATION)
(See M–69 COUPLING COMPONENT
DISASSEMBLY)
(See M–72 COUPLING COMPONENT
ASSEMBLY)
