EGR COOL ER AND TUBING 101

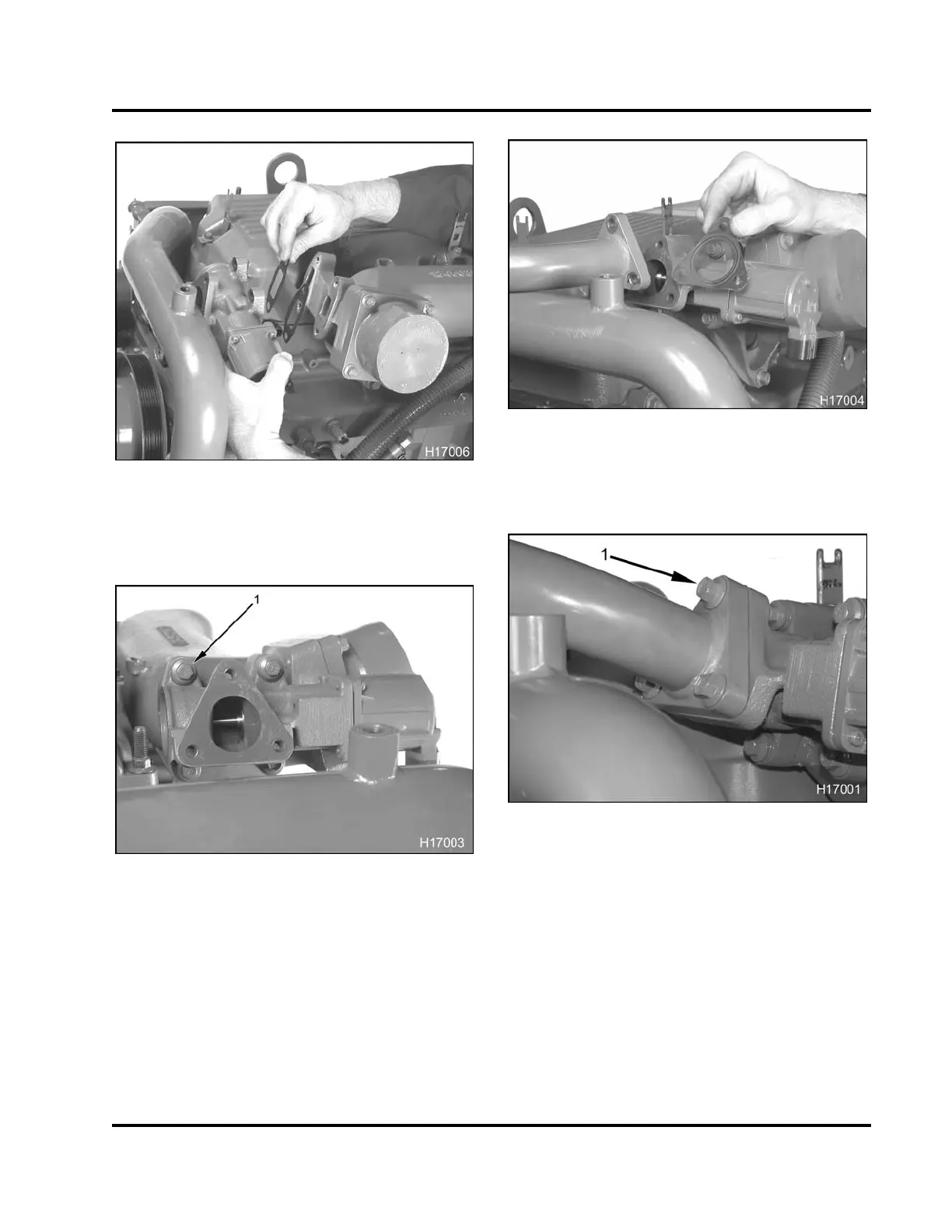

Figure 110 EGR valve gasket at EGR mixer duct
12. Place a new gasket between the EGR mixer duct
and EGR valve assembly.
Figure 111 EGR valve
mounting bolts
1. Bolt, M8 x 35 (4)
13. Secure EGR valve as
sembly with four bolts (M8 x
35) finger tight.
Figure 112 EGR gasket at EGR valve
14. Position a new gasket between the EGR tube
assembly and EGR valve assembly.
Figure 113 EGR tube ass
embly at EGR valve
1. Bolt, M8 x 25 (3)
15. Install three EGR tube
assembly bolts (M8 x 25)
finger tight.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
