220 POWER CYLINDERS
1. Use pliers to remove the two piston pin retaining
rings.

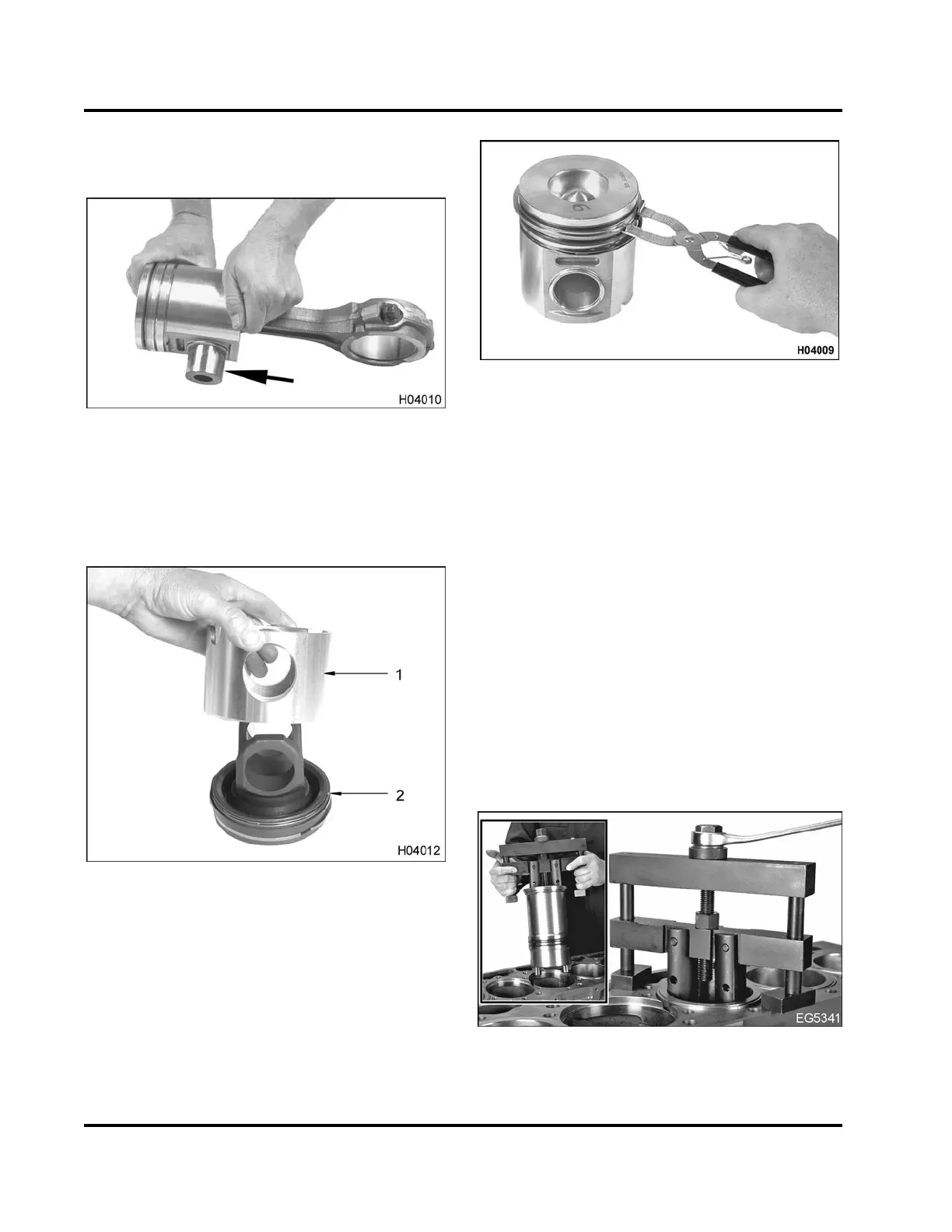

Figure 306 Removing piston pin
2. Remove the piston pin from the bore by hand.
Separate the piston from the connecting rod.
Mark the front of the piston pin with the cylinder
number from which it was removed.
Figure 307 Removing piston skirt from crown
(570 engine only)
1. Skirt
2. Crown
3. For 570 engines only: Mark the orientation of the
piston skirt to the crown for installation purposes.
Remove the piston skirt from the crown.
Figure 308 Removing piston rings (DT 466
piston shown)
4. Use a piston ring expander tool (Table 34) to
remove the piston rings.
Cylinder Sleeve Removal
NOTE: Before installing the puller, bar the engine over
so the crankshaft journal is located at the bottom (low
point) of its travel. This prevents possible damage
to the journal by the puller lifting jaws during puller
installation.
NOTE: When you remove the sleeve from puller,
mark the sleeve with its cylinder bore number. Also
mark the sleeve position in the engine block for the
purposes of inspection and assembly.
1. Position the cylinder sleeve puller in the sleeve
and spread the lifting jaws so the tangs grip the
bottom of the sleeve (Figure 309).
Figure 309 Removing cylinder sleeve from
crankcase
EGES-265-2
