412 AIR COMPRESSOR, POWER STEERING PUMP, AND POWER
TAKE-OFF
7. Remove caps and install oil supply hose to elbow
assembly (M10) (Figure 652). Tighten oil supply
line fitting.
8. Install oil drain hose elbow and clamps.
Power Steering Pump with Air Compressor
2
1
3
H16019

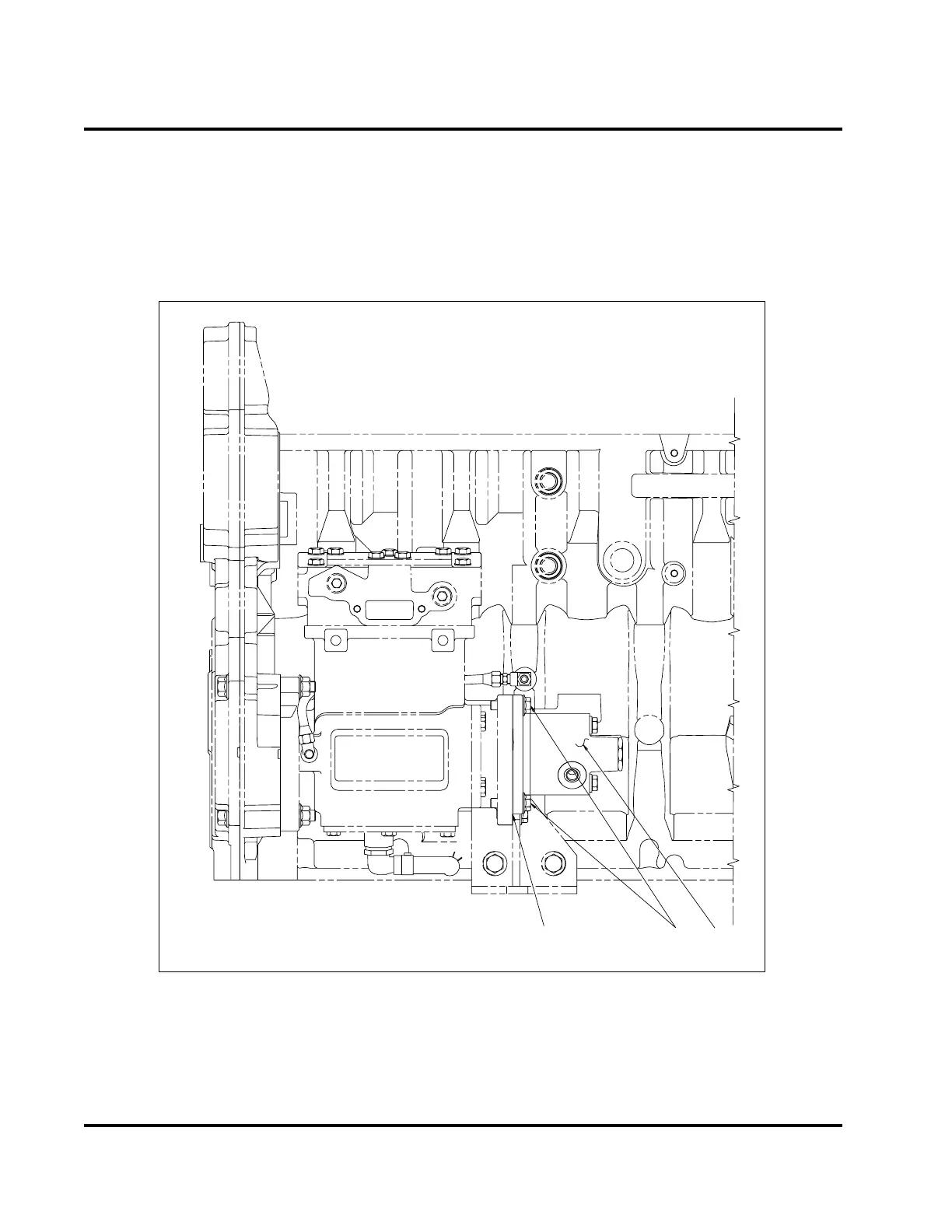

Figure 653 Power steering pump with air compressor
1. Power steering pump gasket 2. Hex flange bolt, M10 x 35 3. Power steering pump assembly
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
