232 POWER CYLINDERS
Reconditioning
Resurfacing the Counterbore
The following steps will require the use of the cylinder
sleeve counterbore tool kit. See piston, piston ring,
and connecting rod special service tools (Table 34).

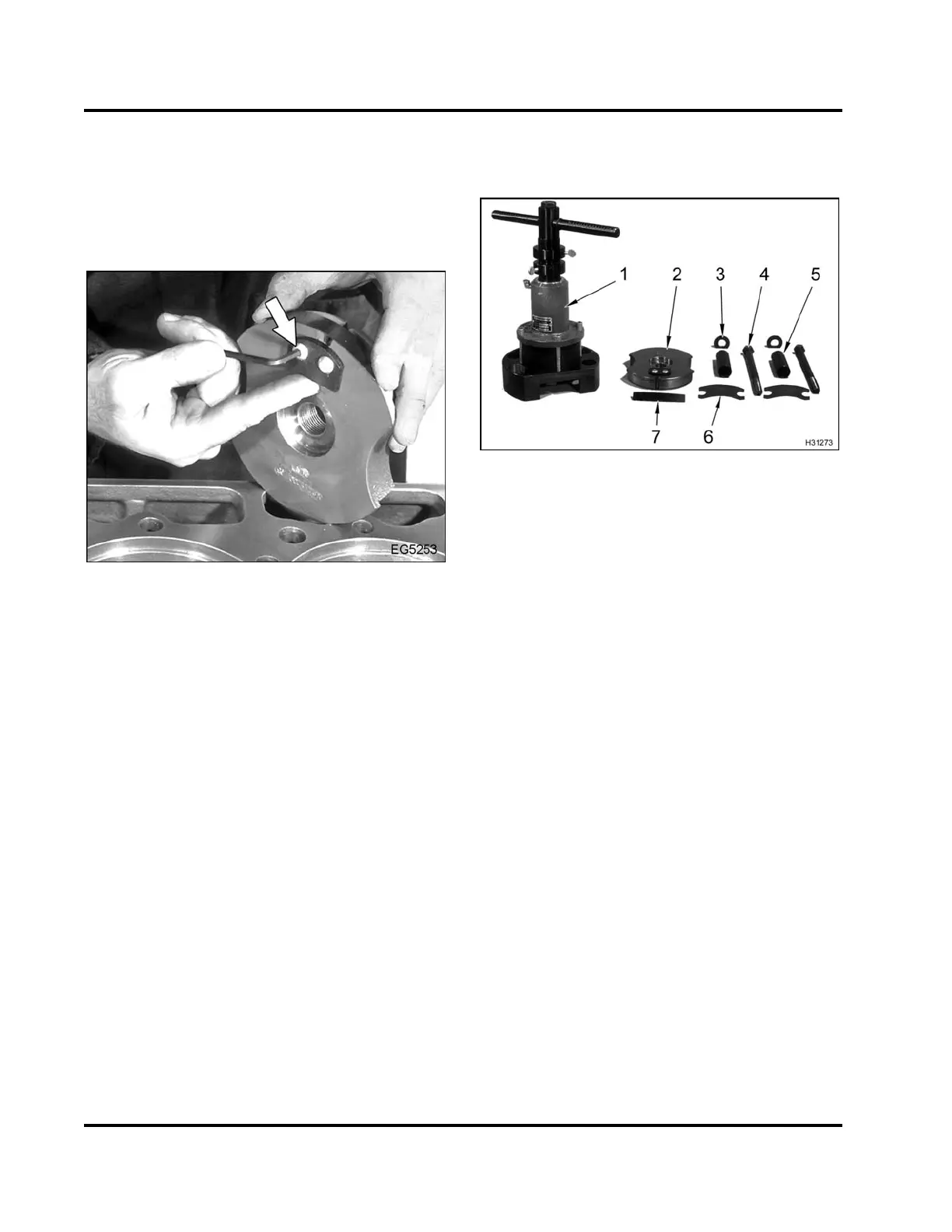

Figure 331 Setting tool bit
1. To set the tool bit for the counterbore cutting head
(Table 34), place a 0.20-0.25 mm (0.008-0.010 in)
feeler gauge on the outside diameter of the cutting
head. Push the tool bit out until it touches the
feeler gauge. Use a hex head wrench to lock the
tool bit in place.
Figure 332 Counterboring tool components
1. Driver unit and adapter plate
2. Cutting head
3. Washer (2)
4. Mounting bolt (2)
5. Spacer (2)
6. Locking plate (2)
7. Feeler gauge
2. Install the cutting head on the driver unit and
adapter plate of the counterboring tool.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
