OIL SYSTEM MODULE A SSE MBLY A ND SECONDARY FILTRATION 289
Disassembling the Secondary Filtration Filter

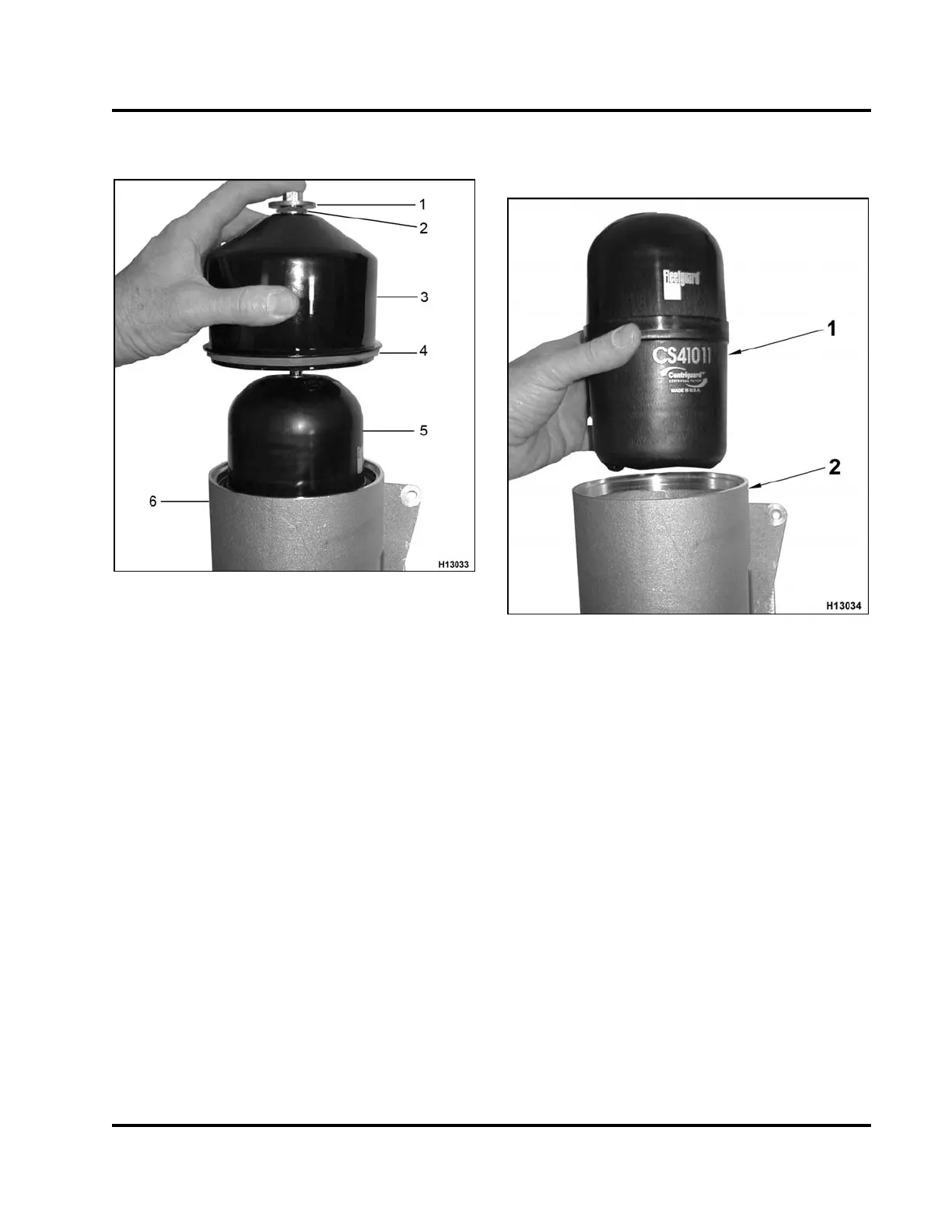

Figure 420 Secondary filter components
1. Stud assembly
2. O-ring
3. Cover
4. O-ring gasket
5. Filter element
6. Filter header
1. Remove stud assembly from the top of the
secondary filtration fi lter and O-ring.
2. Lift cover off of filter header and discard O-ring
gasket.
Figure 421 Secondary filter removed
1. Filter removed
2. Filter header
3. Lift out filter and dispose of properly.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
