190 FRONT COVER AND RELAT ED COMPONENTS
POSE Dust Seal and Wear S leeve

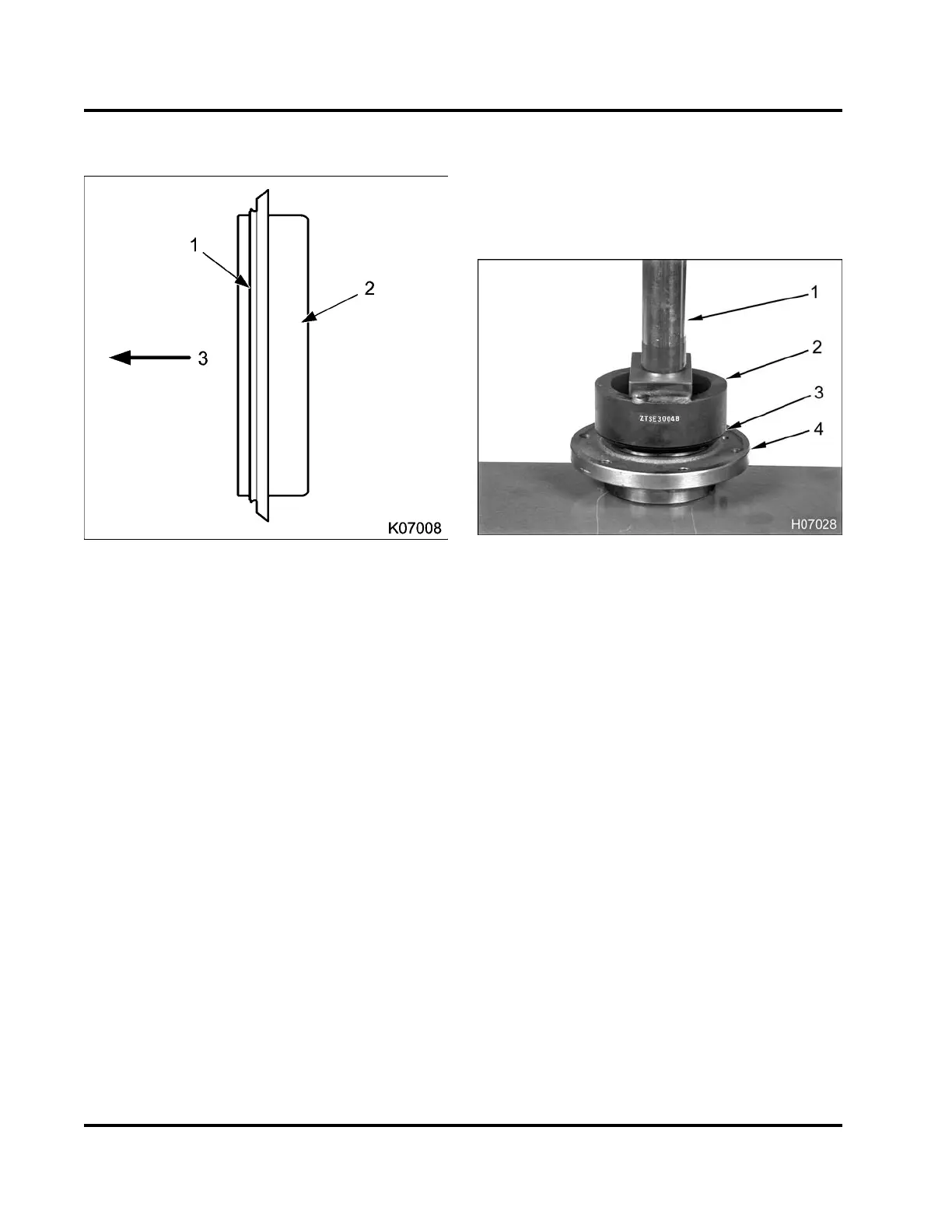

Figure 261 Wear sleeve with POSE dus
tseal
1. POSE dust seal
2. Wear sleeve
3. Frontofengine
NOTE: DT 466 engines equipped wit
han8lobeoil
pump use a wear sleeve without a PO
SE dust seal.
DT 466 engines equipped with a 10
lobe oil pump use
a wear sleeve with a POSE dust se
al. All DT 570 and
HT 570 engines equipped with an
8 lobe oil pump use
a wear sleeve with a POSE dust s
eal.
NOTE: If service kit contai
ns more than one wear
sleeve, use sleeve that has
the same width as the
current wear sleeve.
CAUTION: A new front oil se
al and wear sleeve (with a
POSE dust seal) must be ins
talled as a set for engines
equippedwitha10lobeoi
l pump.
NOTE: The chamfer (rounded edge) of the wear
sleeve outside diameter must face in, toward the
engine.
1. Apply Loctite® 569 Hydraulic Sealant (Table 21)
to the inside diameter of a new wear sleeve.
Figure 262 Front seal and wear sleeve
installation
1. Press ram
2. Front Seal and Wear Sleeve Installer
3. POSE dust seal
4. Damper hub
2. Center the damper hub, new wear sleeve (with
or without a POSE dust seal as appropriate for
application), and Front Seal and Wear Sleeve
Installer (Table 21) under press ram.
3. Carefully press the new wear sleeve on the
damper hub until sleeve is fully seated.
4. Wipe any excess sealant off the outside diameter
of the wear sleeve.
EGES-265-2
