348 FUEL SYSTEM

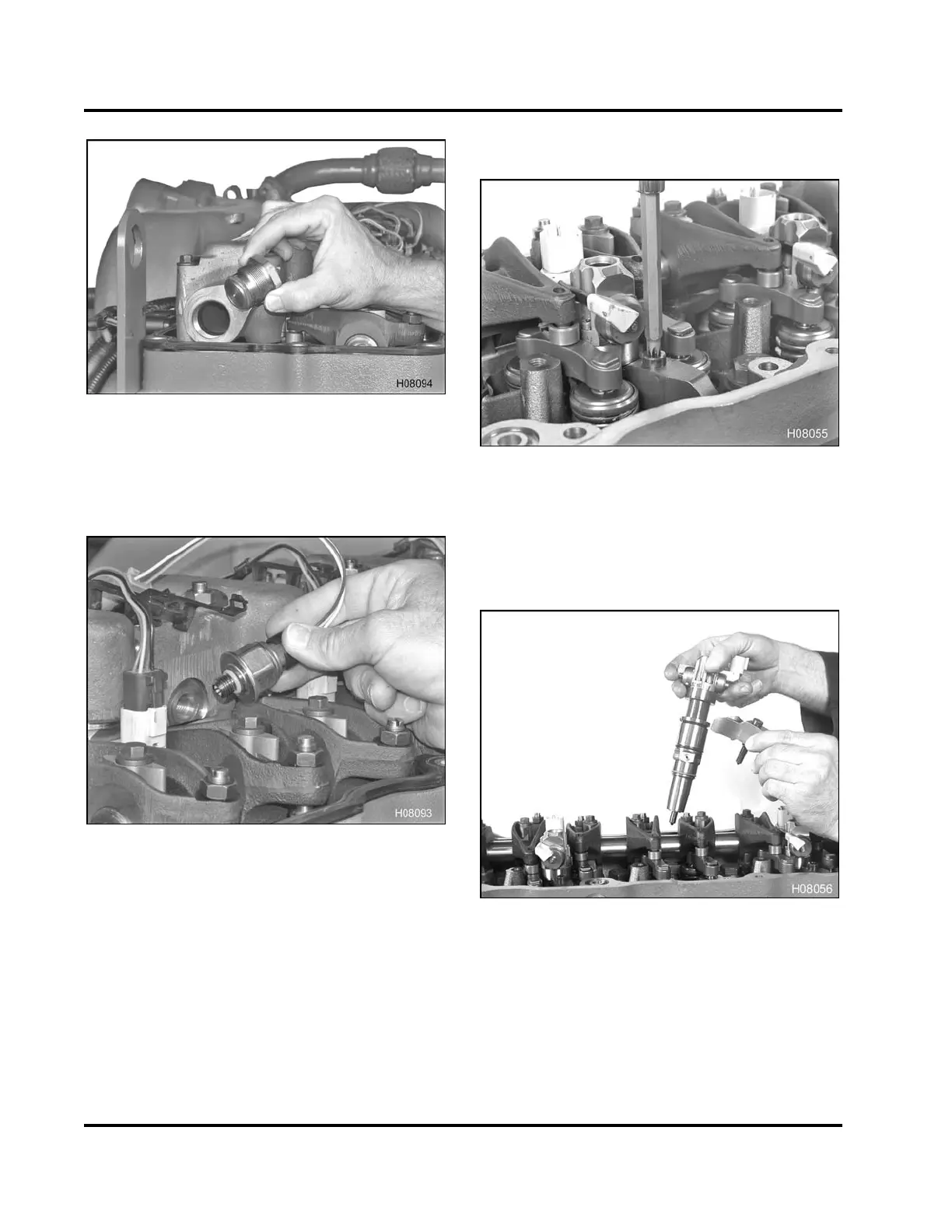

Figure 545 Rail end plug assembly
8. If necessary, remove rail end plug or attenuator.
See (TSI-05-12-28 New High-pressure Oil Rails,
page465).
Figure 546 ICP sensor assembly
9. Remove ICP sensor assembly and discard O-ring.
Fuel Injector Assemblies
Figure 547 Removing the injector clamp and
injector
1. Use the fuel injector remover tool (#40 Torx®)
(Table 48) to extract the injector clamp and
injector.
Figure 548 Removing the fuel injector assembly
CAUTION: To prevent engine damage, do not clean
fuel injectors with parts solvents or chemicals.
CAUTION: To prevent engine damage, put
hydraulically actuated fuel injectors in an oil
filled closeable plastic container; this prevents
contamination or oxidation damage.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
