CYLINDER HEAD AND VALVE TRAIN 139
Inspecting Valve Springs
1. Clean all of the valve springs in a suitable solvent.
CAUTION: To prevent engine damage, do not wire
brush or grind valve springs. Disruption of surface
may result in fatigue cracks and spring failure.
2. Check the valve springs for rust, cracks, and
pitting. Replace any damaged valve springs.

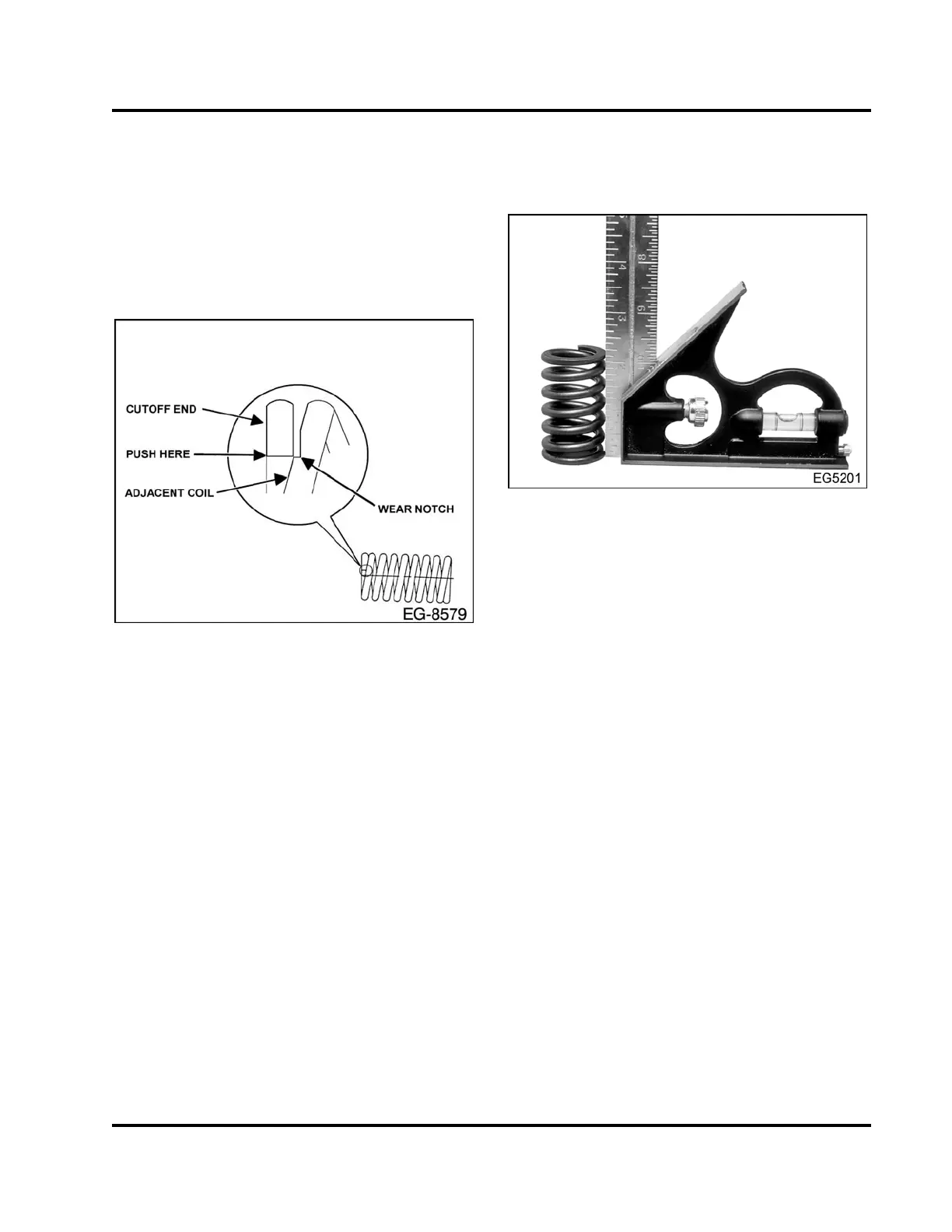

Figure 184 Valve spring inspection
3. Check both ends of each valve spring at the
contact point between the cutoff end of the last
coil and the adjacent coil. If the cutoff end has
worn a notch in the adjacent coil, replace the
spring.
NOTE: These wear notches can also be detected
by compressing the spring and listening for a
clicking sound.
Figure 185 Checking perpendicularity and
flatness of valve spring
NOTE: Valve springs that are not perpendicular to a
flat surface place an unequal lateral load on the valve
stem during operation, causing premature valve guide
wear.
4.Useasquaretocheckflatness and
perpendicularity of spring ends. If the end
of any valve spring is not flat and square, replace
spring.
