FRONT COVER AND RELATED COMPONENTS 171

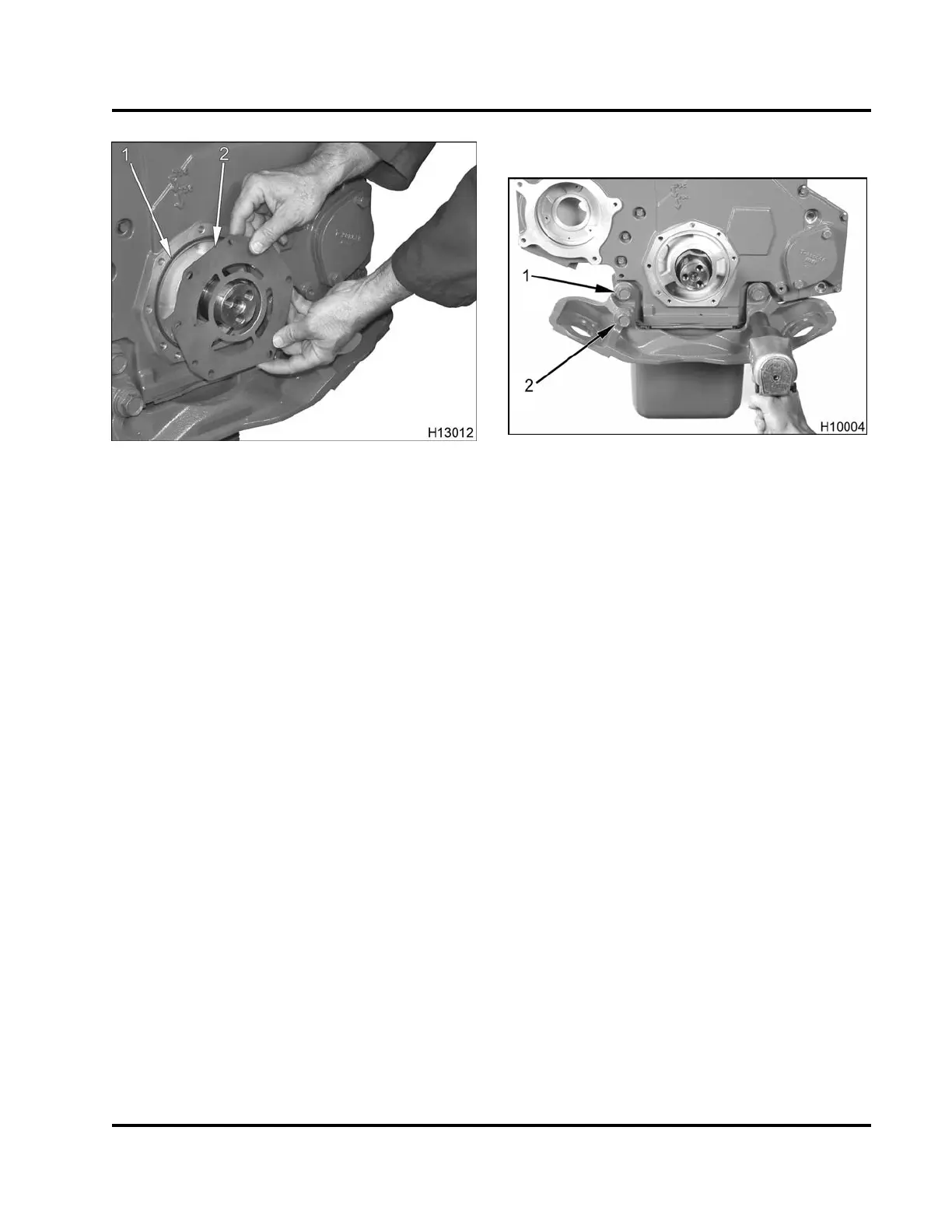

Figure 231 Oil pump housing plate and seal
1. Oil pump (housing plate) seal
2. Oil pump housing plate
9. Remove oil pump housing plate and discard oil
pump (housing plate) seal.
10. See disassembly of crankshaft oil pump drive
(spline) (Crankshaft Disassembly, page 256)for
procedure relating to oil pump drive.
Front Engine Mount
Figure 232 Front engine mounting bracket
1. Bolt, M18 x 70 (2)
2. Bolt, M18 x 100 (2)
1. Remove two upper bolts (M18 x 70).
2. Support engine mounting bracket and remove two
lower bolts (M18 x 100).
3. Remove front engine mounting bracket.
