MOUNTING ENGINE ON ENGINE STAND 63
2. Remove turbocharger assembly, oil drain tube,
and turbo mounting O-ring from engine. Discard
oil drain tube O-rings.
3. Cap all openings on turbocharger assembly.
NOTE: If plastic caps are not available, use duct tape
to cover openings.
Oil Filter

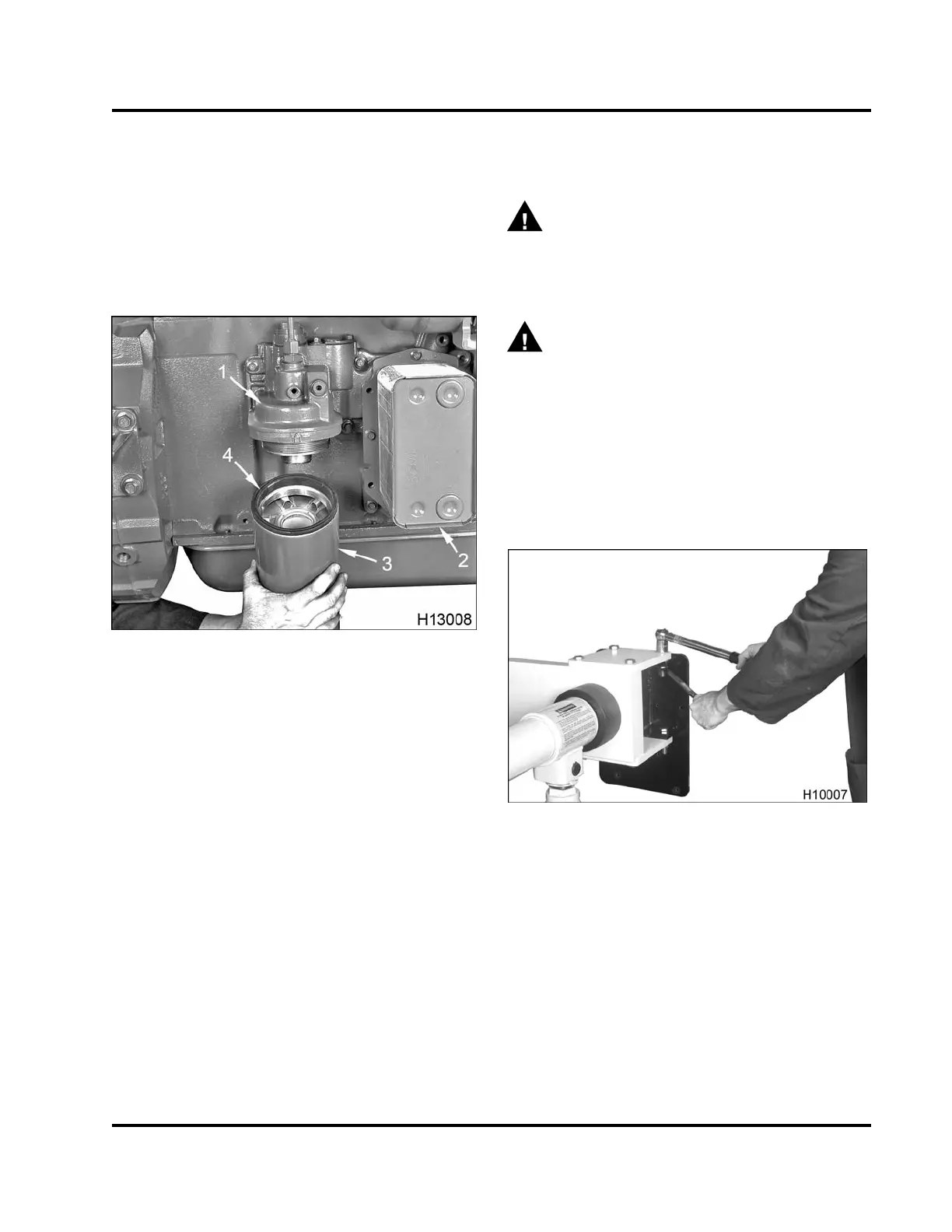

Figure 54 Removing the oil filter
1. Oil filter header
2. Oil cooler
3. Oil filter (spin-on)
4. Oil filter gasket
Remove oil filter from oil cooler filter header. Discard
oil filter.
Oil System Module
1. Remove one bolt (M8 x 16) securing oil cooling
drain tube assembly to crankcase.
2. Remove eight bolts (M8 x 30) securing oil system
module to crankcase.
3. Remove oil system module and oil cooler drain
tube as an assembly from crankcase and discard
O-rings. The oil cooler drain tube is trapped
between the oil system module and the front
cover.
Mounting Adapter Plate and Engine
Adapter Plate
WARNING: To prevent personal injury or
death, use a chain hoist rated for the weight of
the engine, follow manufacturer’s installation and
safety instructions, and attach safety latch lifting
hooks to lifting eyes on the engine.
WARNING: To prevent serious personal
injury, possible death or damage to the engine or
vehicle, use only m etric grade 10.9 or SAE grade
8 bolts when mounting adapter plate to engine
as well as the engine stand. See instructional
literature included with adapter plate for specific
directions of its safe use.
1. Match Engine Mounting Plate (Table 4) with bol
t
holes on right side of engine to determine ada
pter
plate orientation to the Engine Stand (Tabl
e4).
Figure 55 Installing the adapter plate to engine
stand
2. Install recommended Engine Mounting Plate
(Table 4) to engine stand and secure by using
eight (grade 8) bolts and nuts. Tighten bolts
to the standard torque value (General Torque
Guidelines, page445).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
