12 ENGINE SYSTEMS
Engine Component Locations

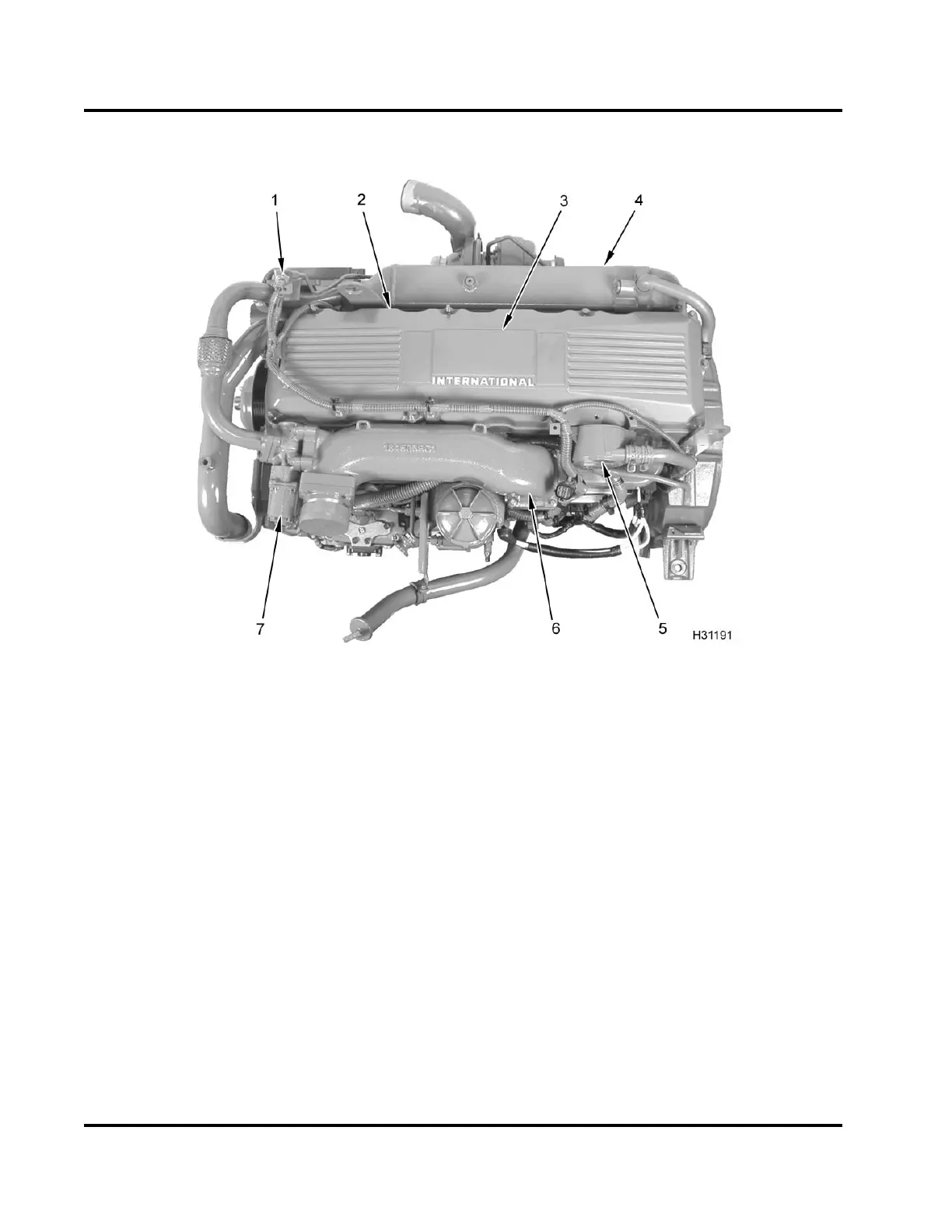

Figure 4 Component location – top
1. Exhaust Back Pressure (EBP)
sensor
2. Valve cover
3. Exhaust emission label (location)
4. EGR cooler assembly
5. Breather assembly
6. Inlet and EGR mixer duct
7. EGR control valve
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
