ENGINE SYSTEMS 45
Exhaust Gas Recirculation (EGR) Control Valve
The EGR valve controls the ow of exhaust gases into
the inlet and EGR mixer duct.
The EGR drive module controls the EGR actuator.
The EGR drive module receives the desired EGR
actuator position from the ECM across the CAN
2 datalink to activate the valve for exhaust gas
recirculation. The EGR drive module provides
feedback to the ECM on the valve position.
The EGR drive module constantly monitors the EGR
actuator. When an EGR control error is detected, the
EGR drive module sends a message to the ECM and
aDTCisset.
Brake Shut-off Val ve
The brake shut-off valve controls pressure in the oil
gallery of the high-pressure oil rail. When the engine
brake is activated, the ECM provides power to activate
the brake shut-off valve to allow oil from the injector
oil gallery to ow to the brake oil gallery. High oil
pressure activates the brake actuator pistons to open
the exhaust valves.
Injection Pressure Regulator (IPR)
The IPR valve controls pressure in the Injection
Control Pressure (ICP) system. The IPR valve is a
variable position valve controlled by the ECM. This
regulated pressure actuates the fuel injectors. The
valve position is controlled by switching the ground
circuit in the ECM. The voltage source is supplied by
the ignition switch.
Inlet Air Heater (IAH)
The IAH system warms the incoming air supply prior to
cranking to aid cold engine starting and reduce white
smoke during warm-up.
TheECMisprogrammedtoenergizetheIAH
elements through the IAH relays while monitoring
certain programmed conditions for engine coolant
temperature, engine oil temperature, and atmospheric
pressure.
Injection Drive Module (IDM)

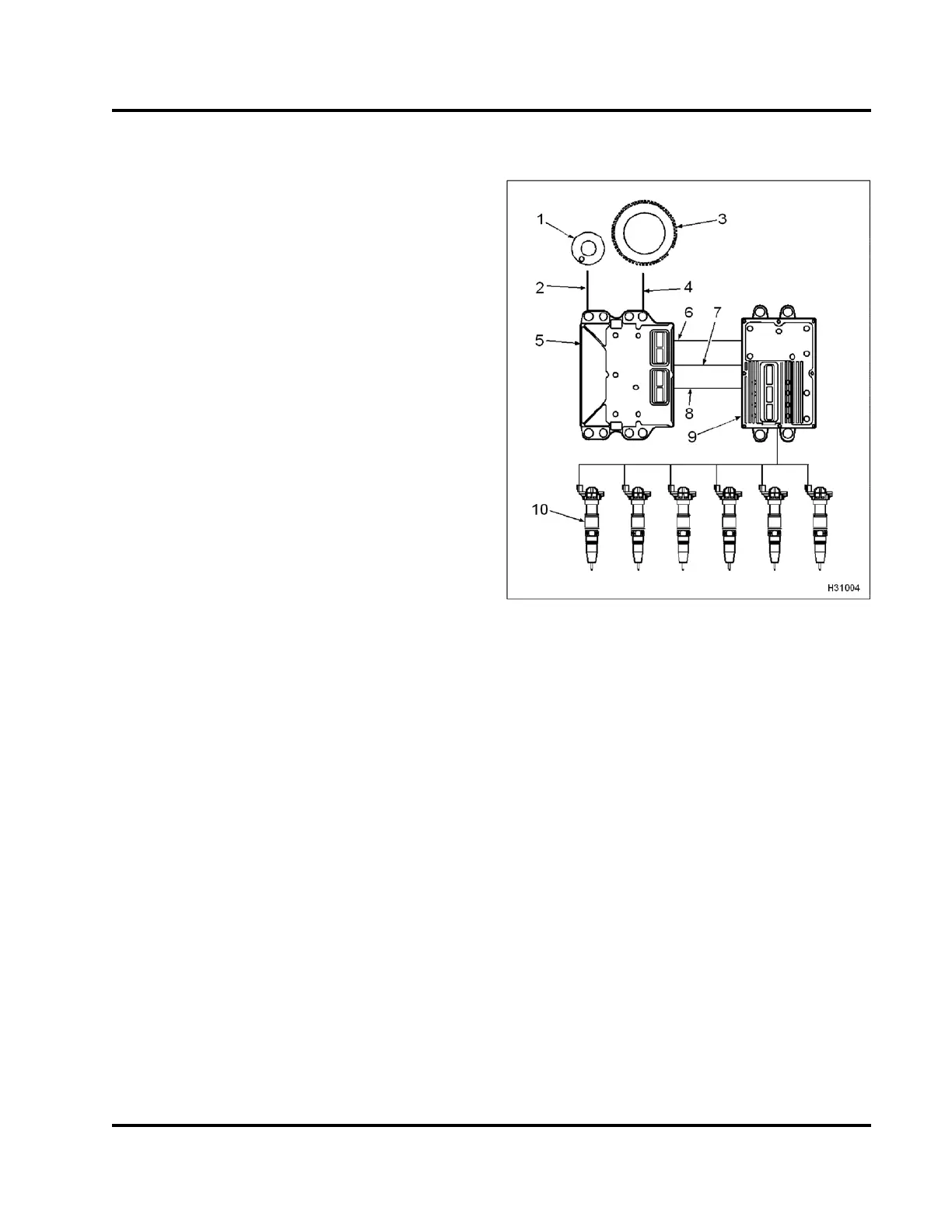

Figure 38 Injection Drive Module (IDM)
1. Camshaft with peg
2. Camshaft Position (CMP) signal
3. Crankshaft position sensor timing disk
4. Crankshaft Position (CKP) signal
5. Electronic Control Module (ECM)
6. Camshaft Position Output (CMPO) signal
7. Crankshaft Position Output (CKPO) signal
8. Controller Area Network (CAN 2) communication
9. Injection Drive Module (IDM)
10. Fuel injectors
The IDM has three functions:
Electronic distributor for injectors
Power source for injectors
IDM and injector diagnostics
Electronic Distributor for Injectors
The IDM distributes current to the injectors. The IDM
controls fueling to the engine by sending high voltage
pulses to the OPEN and CLOSE coils of the injector.
The IDM uses information from the ECM to determine
the timing and quantity of fuel for each injector.
EGES-265-2
