FRONT COVER AND RELATED COMPONENTS 185
Generation 1 (Mounting Bolts)
A
H06078
1
2
2
3, 4
5, 4
3, 4
5, 4
6
7
A
A

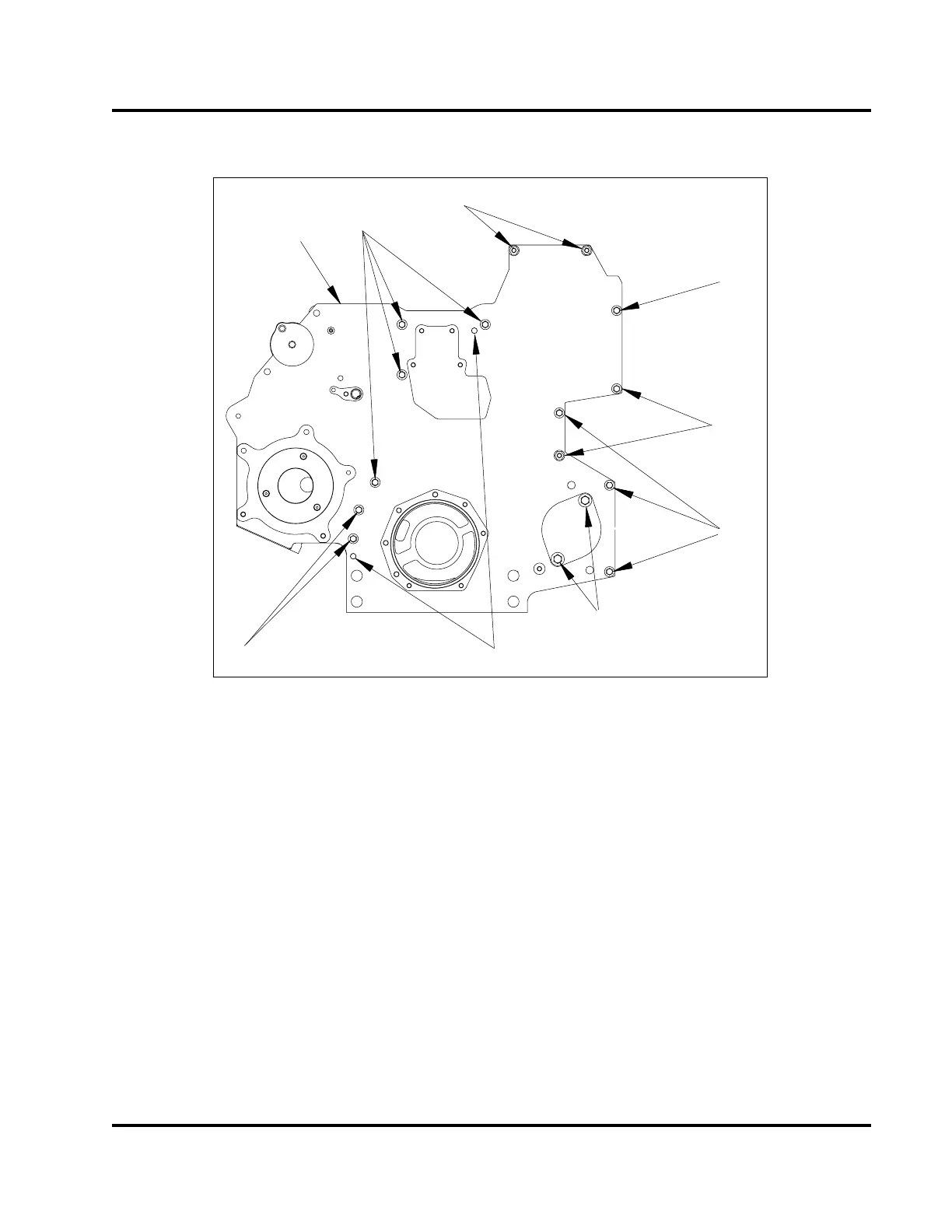

Figure 252 Front cover mounting bolts – front half (Generation 1)
1. Front cover (front half)
2. Hex flange bolt, M8 x 45 (6)
3. Hex flange bolt, M8 x 40 (4),
Note: Bolts marked A to be
inserted from rear side of cover.
4. Hex flange nut, M8 (8)
5. Hex flange bolt, M8 x 30 (4)
6. Heavy hex flange bolt, M10 x 25
(2) (PTO equipped engines only)
7. Dowel hole
1. Position the forward half of the front cover onto the
rear half of the front cover using the two dowels as
a guide.
Thread all mounting bolts finger tight, then tighten
bolts to the standard torque value (General
Torque Guidelines, page445).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
