258 CRANKCASE, C RAN KSHAFT, AND CAMSHAFT

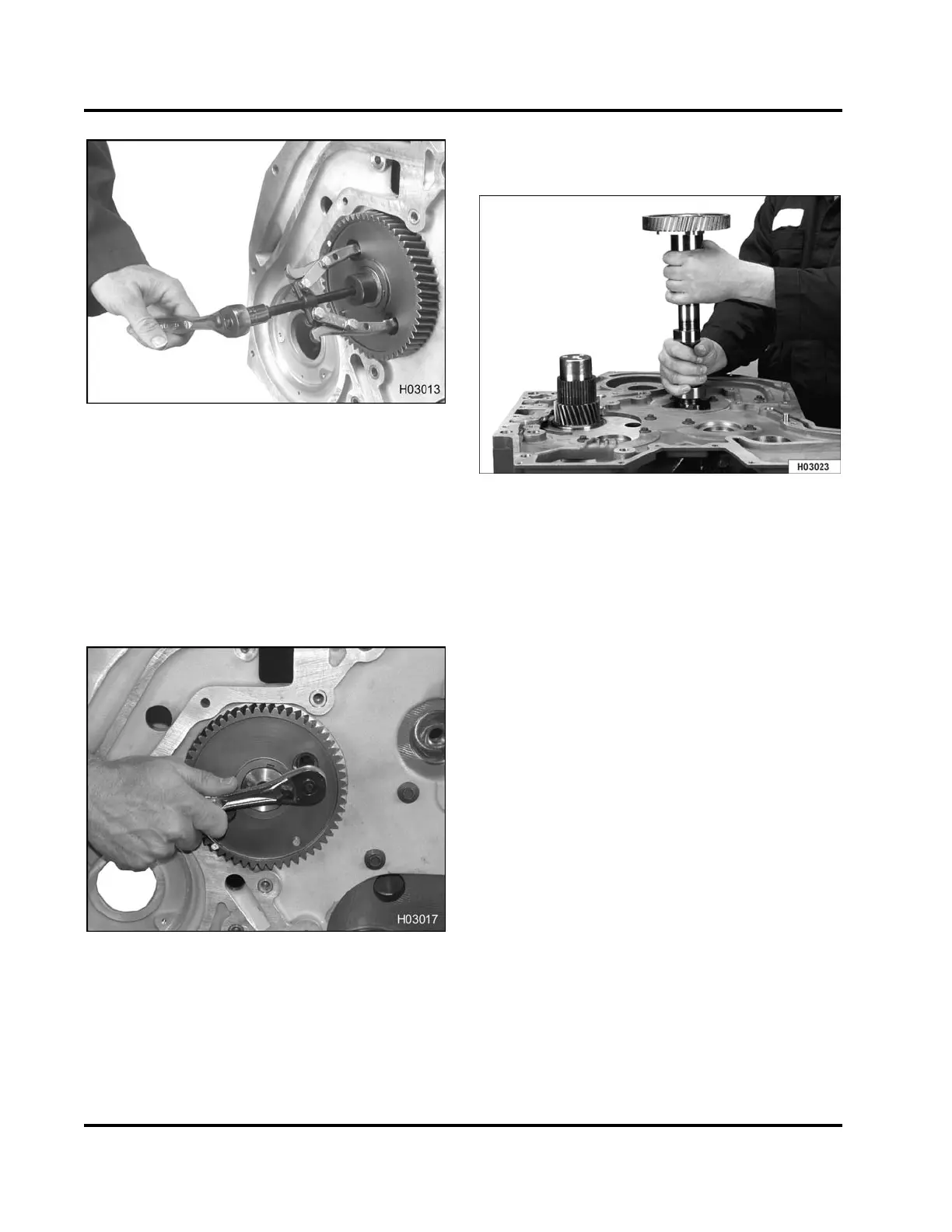

Figure 369 Removing camshaft gear
2. Using a socket or wrench apply force to tool until
gear is just about off. Use both hands to remove
cam gear and tool.
Camshaft Disassembly
NOTE: Use this procedure to remove the cam gear
and camshaft as a unit.
Figure 370 Removing camshaft thrust plate
bolts
1. Remove the two camshaft thrust plate bolts (M8 x
20).
Figure 371 Removing the camshaft assembly
2. Carefully remove the camshaft assembly from the
crankcase.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
