382 FLYWHEEL A ND F LYWHEEL HOUSING

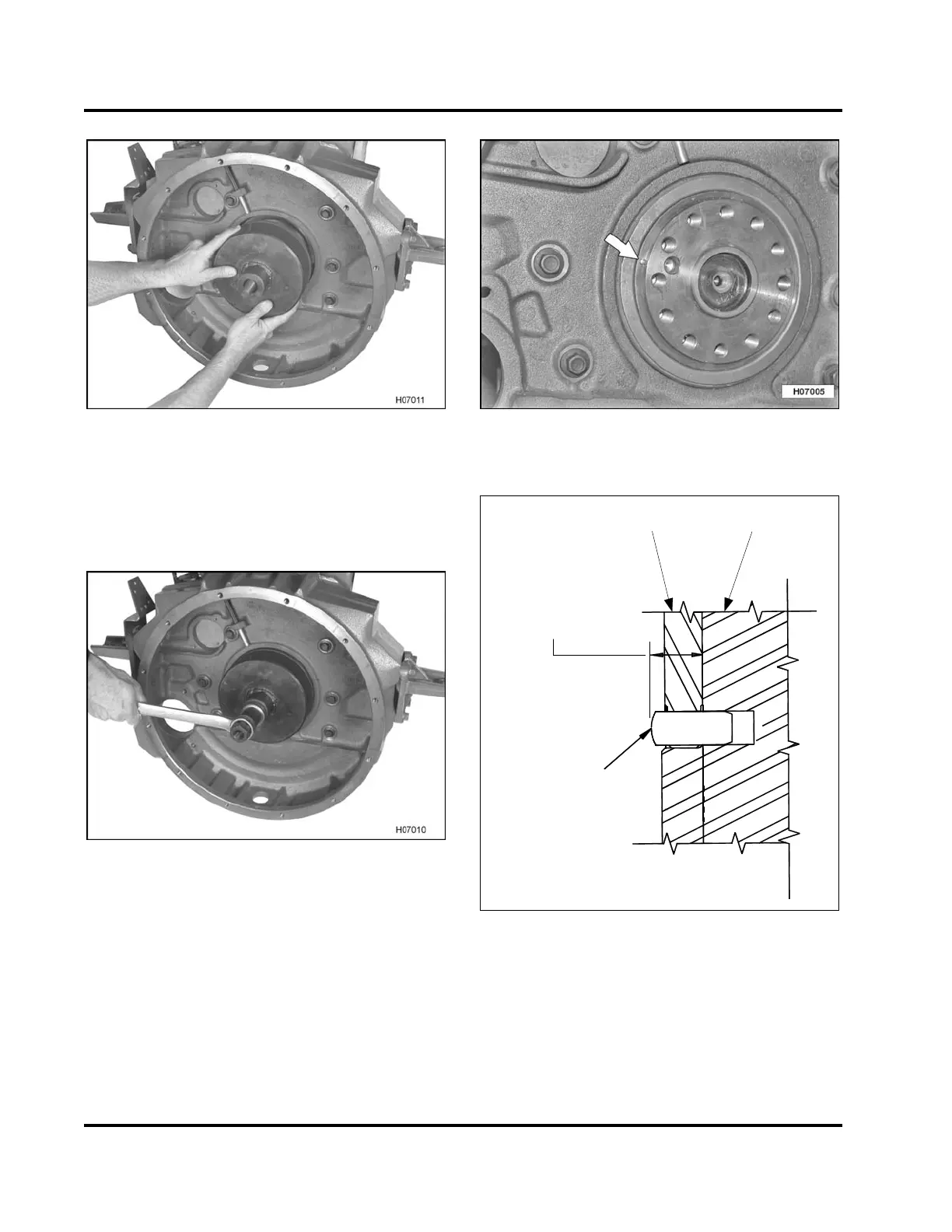

Figure 607 Installing rear oil seal installer onto
base
5. Place oil seal installer up to steel face of seal and
gently push by hand into flywheel housing as far
as possible.
Figure 608 Installing the rear oil seal
6. Put washer and forcing nut onto shaft and tighten
until rear oil seal bottoms out in flywheel housing.
The seal will be placed at the correct location
(depth).
Crankshaf t Timing Disk
NOTE: Alignment dowel pin convex end must
protrude out of crankshaft (Figure 583).
Figure 609 Crankshaft timing disk alignment
dowel
(0.300 in)
1
2
3
H07032
7.6 mm
Figure 610 Crankshaft timing disk alignment
dowel d etails
1. Crankshaft timing disk
2. Crankshaft
3. Alignment dowel (convex end)
EGES-265-2
