368 FLYWHEEL A ND F LYWHEEL HOUSING

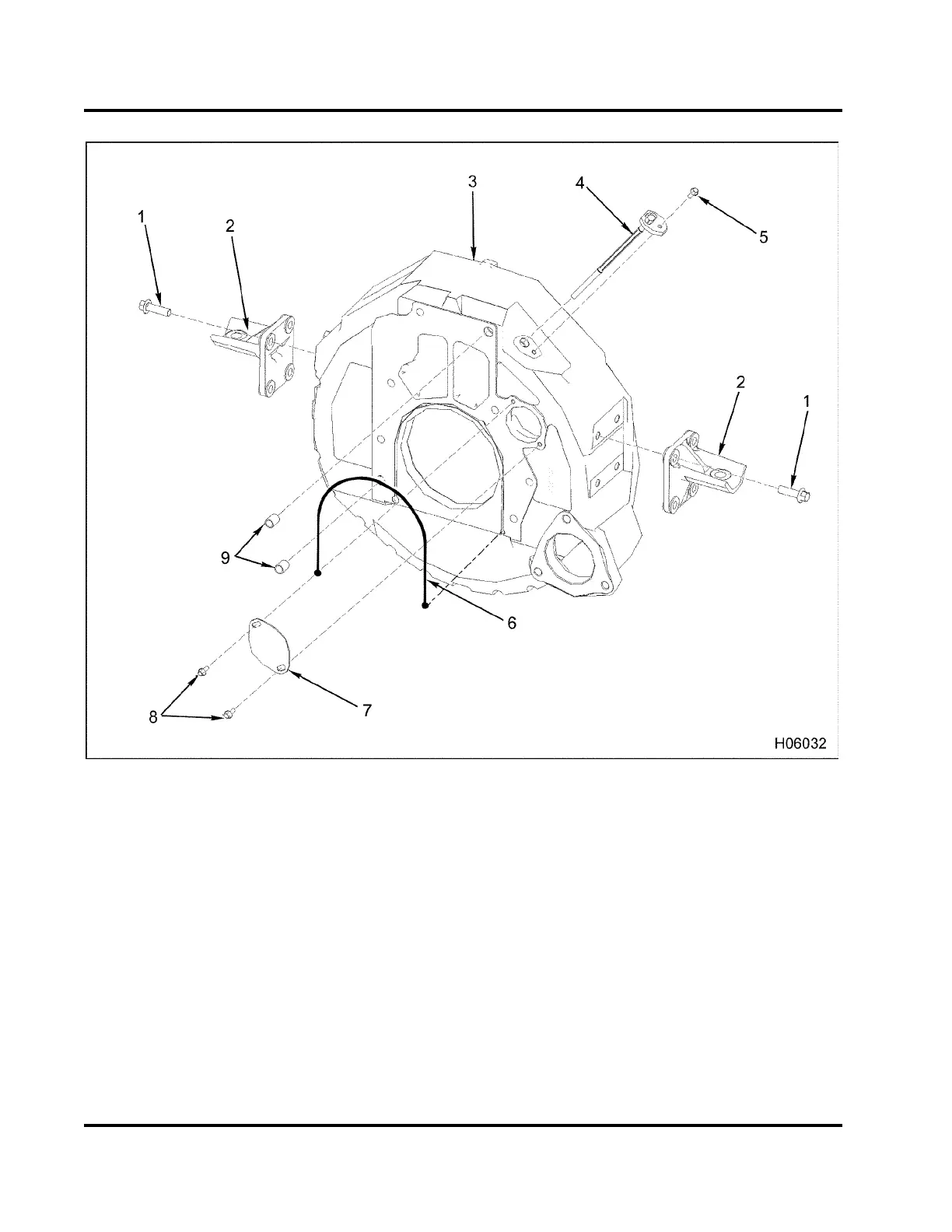

Figure 583 Flywheel ho
using and related parts
1. Bolt, M12 x 40 (8)
2. Rear engine mountin
g bracket
(2)
3. Flywheel housing
4. Crankshaft Positi
on sensor
(CKP)
5. Bolt, M6 x 16
6. Flywheel housing se
al
7. Cover plate
8. Bolt, M6 x 16 (2)
9. Hollow dowel (2)
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
