ENGINE SYSTEMS 53
Diamond Logic® Engine Brake
System
The Diamond Logic® engine brake system is available
for all engine displacements.
Engine Brake Components

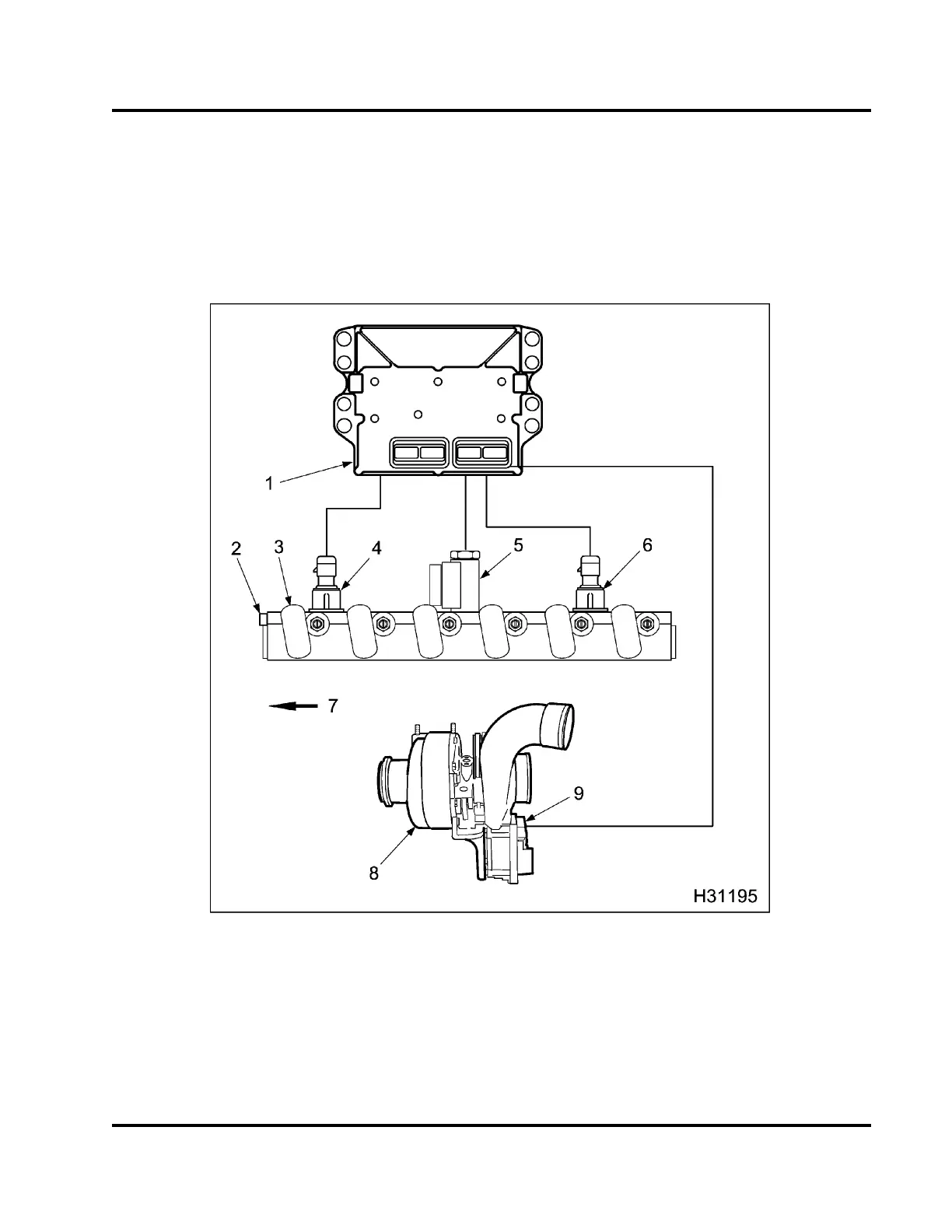

Figure 46 Diamond Logic® engine brake system
1. ECM
2. Brake pressure relief valve
3. High-pressure oil rail
4. Brake Control Pressure (BCP)
sensor
5. Brake shutoff valve assembly
6. Injection Control Pressure (ICP)
sensor
7. Front of engine
8. Variable Geometry Turbocharger
(VGT)
9. Turbocharger control module
EGES-265-2
