FRONT COVER AND RELATED COMPONENTS 195

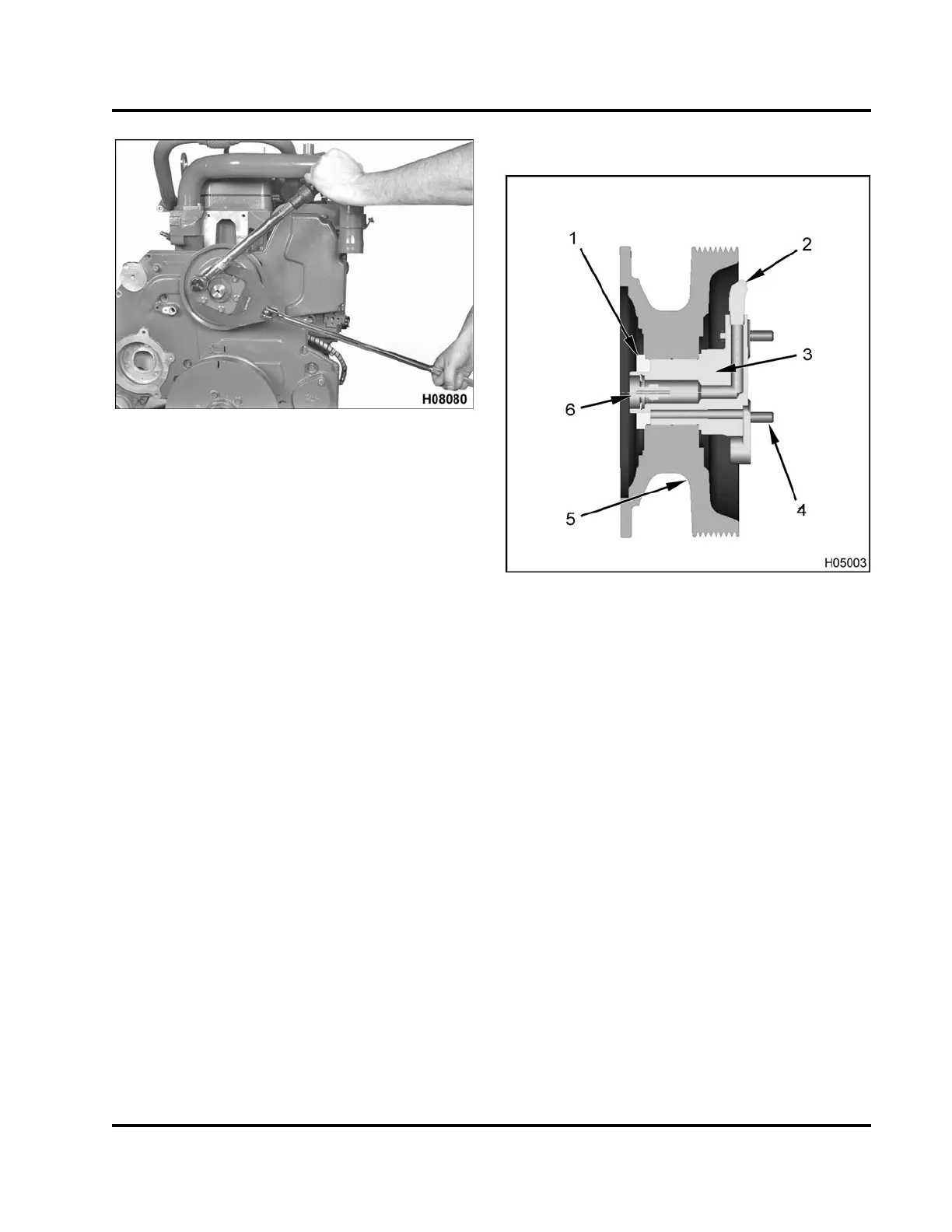

Figure 269 Torquing the fan drive pulley bolts
4. Install six M8 x 20 hex flange bolts to the fan pulley
and tighten to the standard torque value (General
Torque Guidelines, page445).
Horton DriveMaster
Figure 270 Horton DriveMaster (low mount
version)
1. Bearing retainer nut assembly (shoulder relief faces
engine)
2. Air channel inlet
3. Bracket assembly
4. Bolt, M8 x 30 (4)
5. Fan pulley
6. Air cartridge (Note: Horton service part only)
1. Install bracket assembly and four M8 X30 hex
flange bolts . Torque bolts to the standard torque
value (General Torque Guidelines, page445).
2. Slide fan pulley onto bracket with clutch mounting
flange facing front.
3. Install bearing nut, making sure bearing nut
shoulder relief is facing towards engine.
4. Tighten bearing retainer nut to the special torque
(Table 20).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
