234 POWER CYLINDERS
Installation
Cylinder Sleeve Insta llation

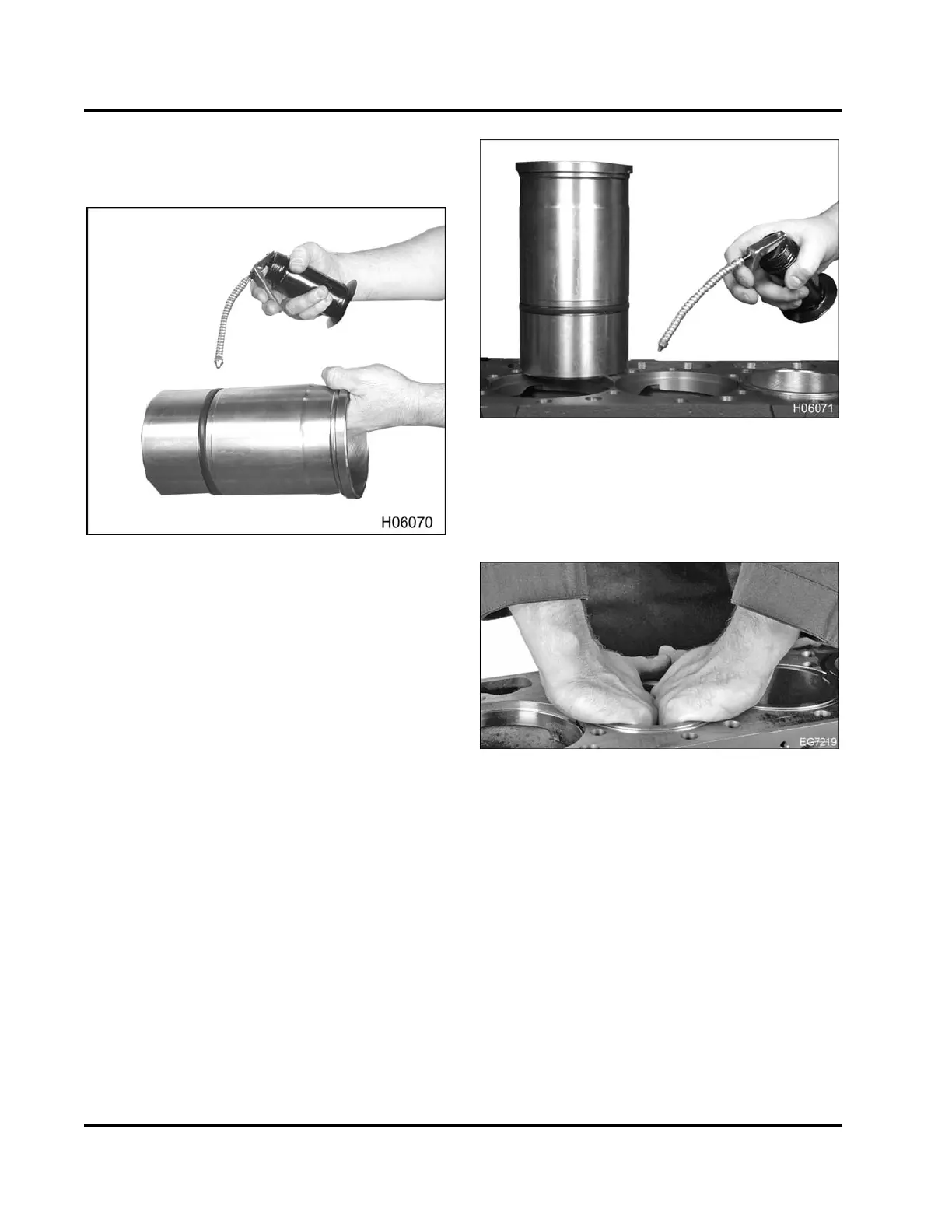

Figure 334 Lubricate cylinder sleeve crevice
seal
1. Lubricate the crevice seal with clean engine oil
and install into cylinder sleeve groove (without
twisting).
NOTE: Each cylinder sleeve has one crevice seal.
2. If required, ensure the proper shim(s) are
installed in the crankcase counterbore necessary
to bring the cylinder sleeve protrusion within
specifications.
3. Make sure the crevice seal is properly aligned in
the groove.
Figure 335 Lubrication of cylinder sleeve bore
4. Apply clean engine oil to the lower crankcase
counterbore and crevice seal bore, then carefully
install the cylinder sleeve.
Figure 336 Installation of cylinder sleeve
5. After installation, check cylinder sleeve protrusion
(Checking Cylinder Sleeve Protrusion, page229).
6. Check cylinder sleeve bore dimensions and
sleeve taper per specifications (Table 32).
If the cylinder sleeve is not measuring up to
specifications, check for an improperly aligned
crevice seal.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
