86 INTAKE, INLET, AND EXHAUST M ANIF OLDS

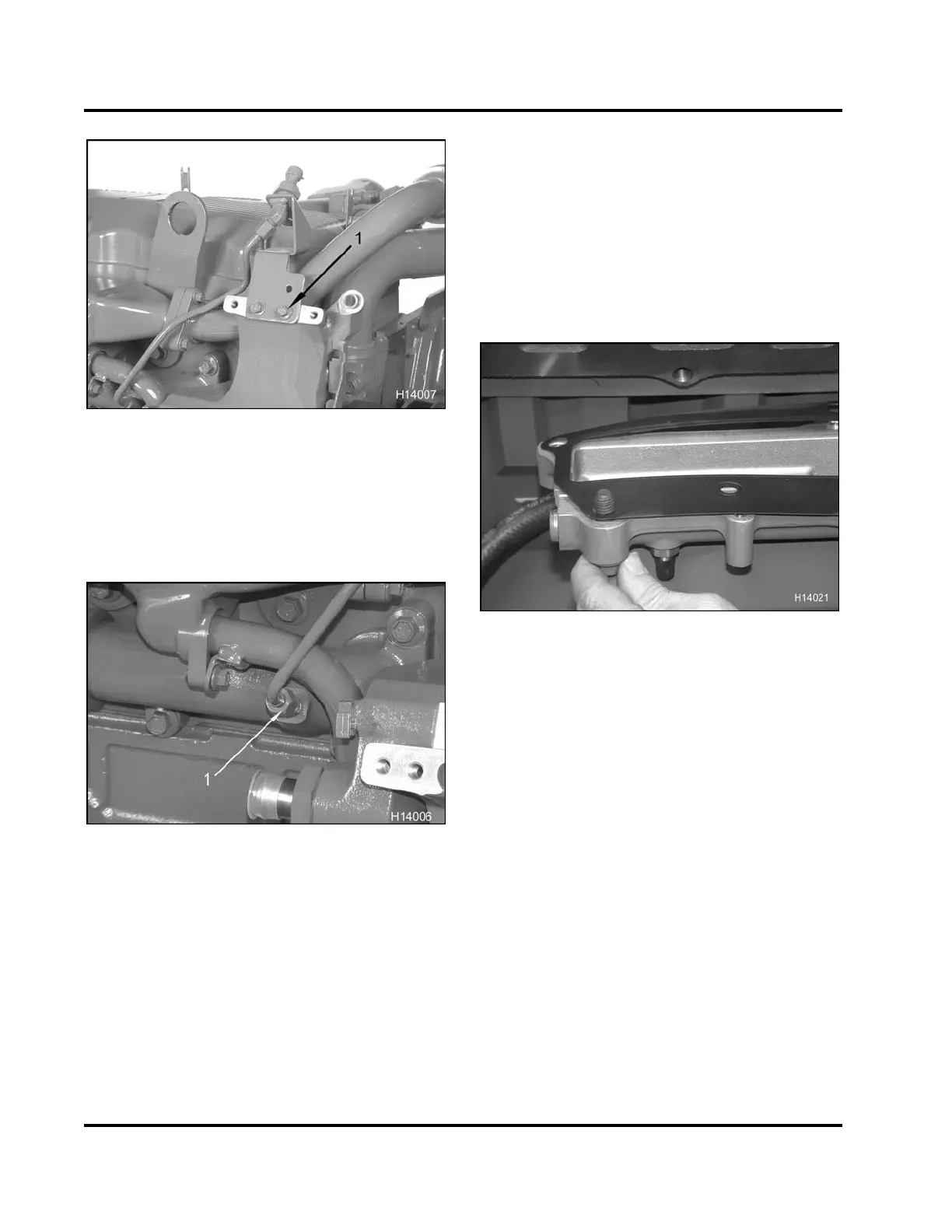

Figure 79 Installing EBP tubing bracket
1. EBP tubing bracket bolts, M8 x 20 (2)
5. Install EBP tubing bracket assembly and
bolts onto the water supply housing (Freon®
compressor bracket) and fi nger tighten.
Figure 80 Installing EBP tubing nut
1. EBP tubing nut
6. Torque tubing nut to the standard torque value
(General Torque Guidelines, page445).
7. Torque EBP tubing bracket bolts to the standard
torque value (General Torque Guidelines, page
445).
8. Install the EBP sensor connector.
Intake Manifold
Figure 81 Aligning intake gasket to manifold
1. Insert an intake manifold bolt (M10 x 35) into each
end of the intake manifold (both top holes). Place
intake manifold gasket over these two bolts to
ensure proper alignment between the manifold
and gasket.
2. Install the intake manifold and gasket to the
cylinder head by starting the two top end bolts by
hand.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
