Navistar INTERNATIONAL DT 466 - EGR System Components (Beginning Model Year 2004); Removal of EGR System Components

94 EGR COOLER AND TUBING
EGR System Components
(Beginning Model Year 2004)
Removal of EGR System Components

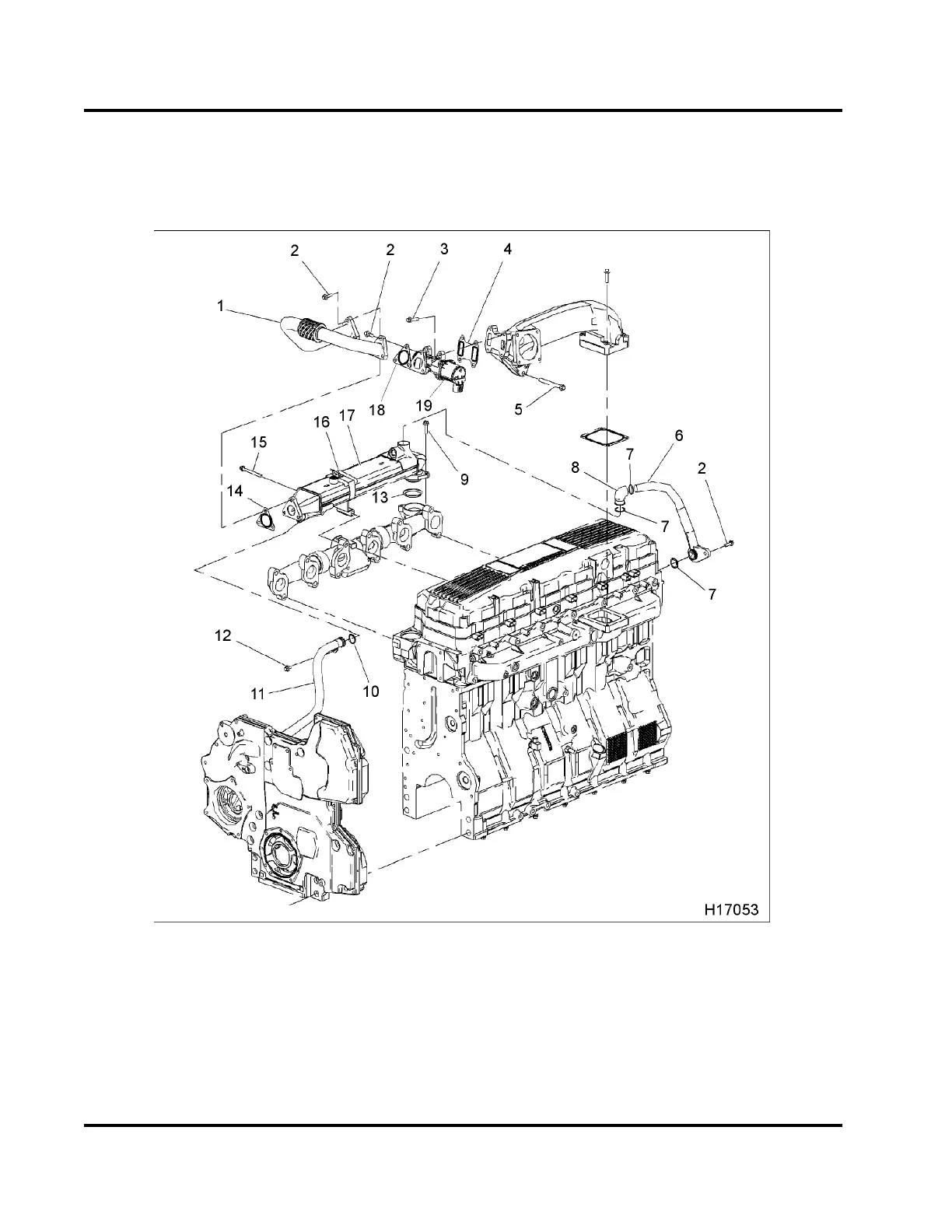

Figure 88 EGR system
1. EGR tube assembly
2. Bolt, M8 x 25 (7)
3. Bolt, M8 x 35 (4)
4. Gasket
5. Bolt, M10 x 90
6. EGR cooler return tube
7. O-ring (3)
8. EGR cooler return elbow
9. Bolt, M8 x 30 (2)
10. O-ring (2)
11. EGR cooler supply tube
12. EGR cooler supply tube retaining
bolt, M8 x 16
13. Gasket, hot side
14. Gasket, cool side
15. Bolt, M12 x 120
16. EGR cooler bracket clamp
17. EGR cooler assembly
18. EGR cooler assembly gasket
19. EGR valve assembly
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
