Navistar INTERNATIONAL DT 466 Service Manual

EGR COOL ER AND TUBING 95
Table 9 EGR Cooler – Applications
EGR Cooler
Length (inches)
Engine
Model
Rated Brake
Horsepower
(bhp)
11.5 DT 466 225 and below
DT 466 245 and above
17.0
DT and HT
570
295 and below
21.0 DT and HT
570
300 and above
GOVERNMENT REGULATION: Engine
fluids (oil, fuel, and coolant) may be a hazard
to human health and the environment.
Handle all fluids and other contaminated
materials (e.g. filters, rags) in accordance
with applicable regulations. Recycle
or dispose of engine fluids, filters, and
other contaminated materials according to
applicable regulations.
WARNING: To prevent personal injury or
death, read all safety instructions in the “Safety
Information” section of this manual.
WARNING: To prevent personal injury or
death, shift transmission to park or neutral, set
parking brake, and block wheels before doing
diagnostic or service procedures.
WARNING: To prevent personal inj
ury or
death, make sure that the engine h
as cooled
before removing components.
WARNING: To prevent personal injury or
death, do not let engine fluids stay on your skin.
Clean skin and nails using hand cleaner and wash
with soap and wat er. Wash or discard clo thing
and rags contaminated with engine fluids.
WARNING: To prevent personal injury or
death, wear safety glasses with side shields.
Limit compressed air pressure to 207 kPa (30 psi).

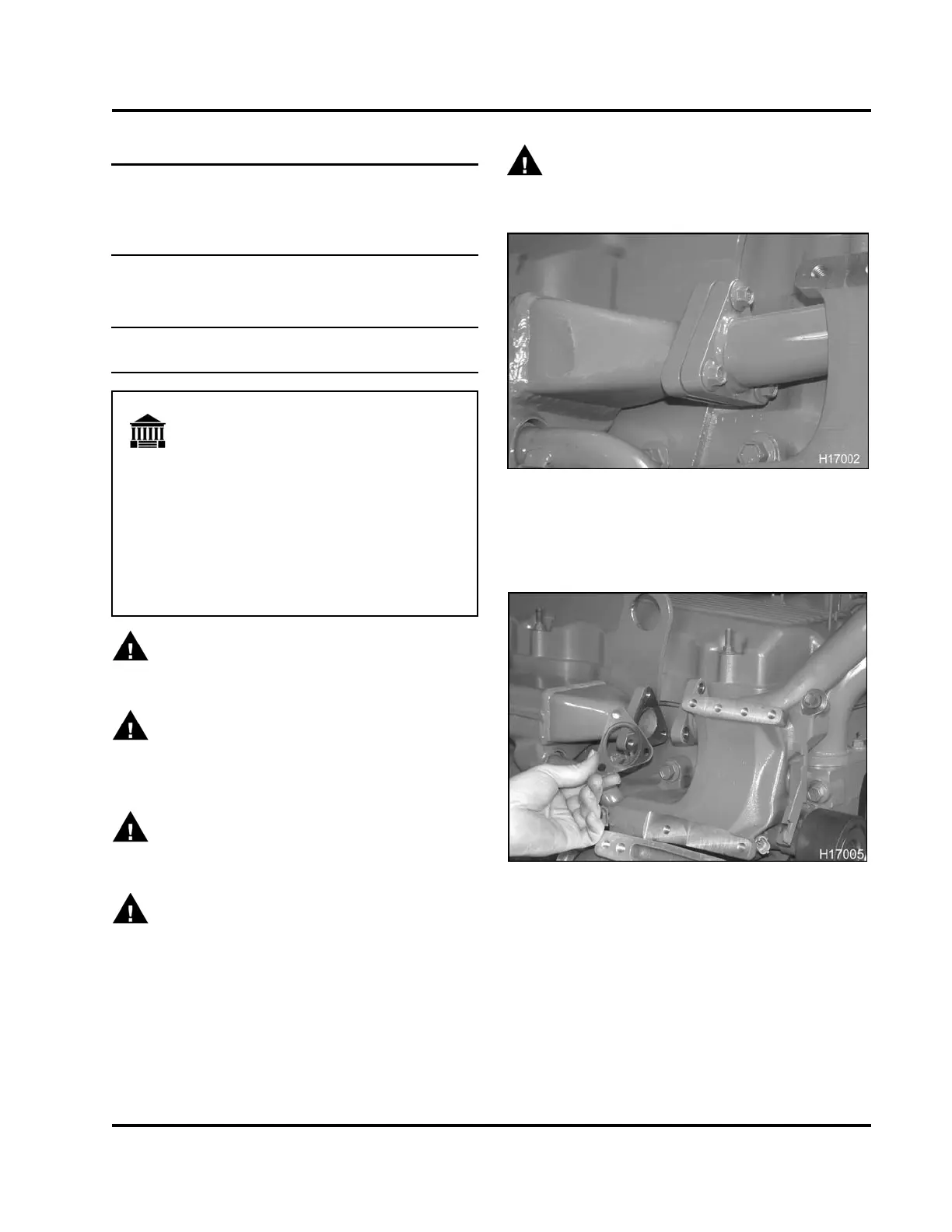

Figure 89 EGR tube assembly at EGR cooler
1. Remove three bolts (M8 x 25) from the EGR tube
assembly at the EGR cooler assembly.
Figure 90 Removing the
gasket
2. Pull tube assembly a
way and discard gasket.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
