360 FUEL SYSTEM

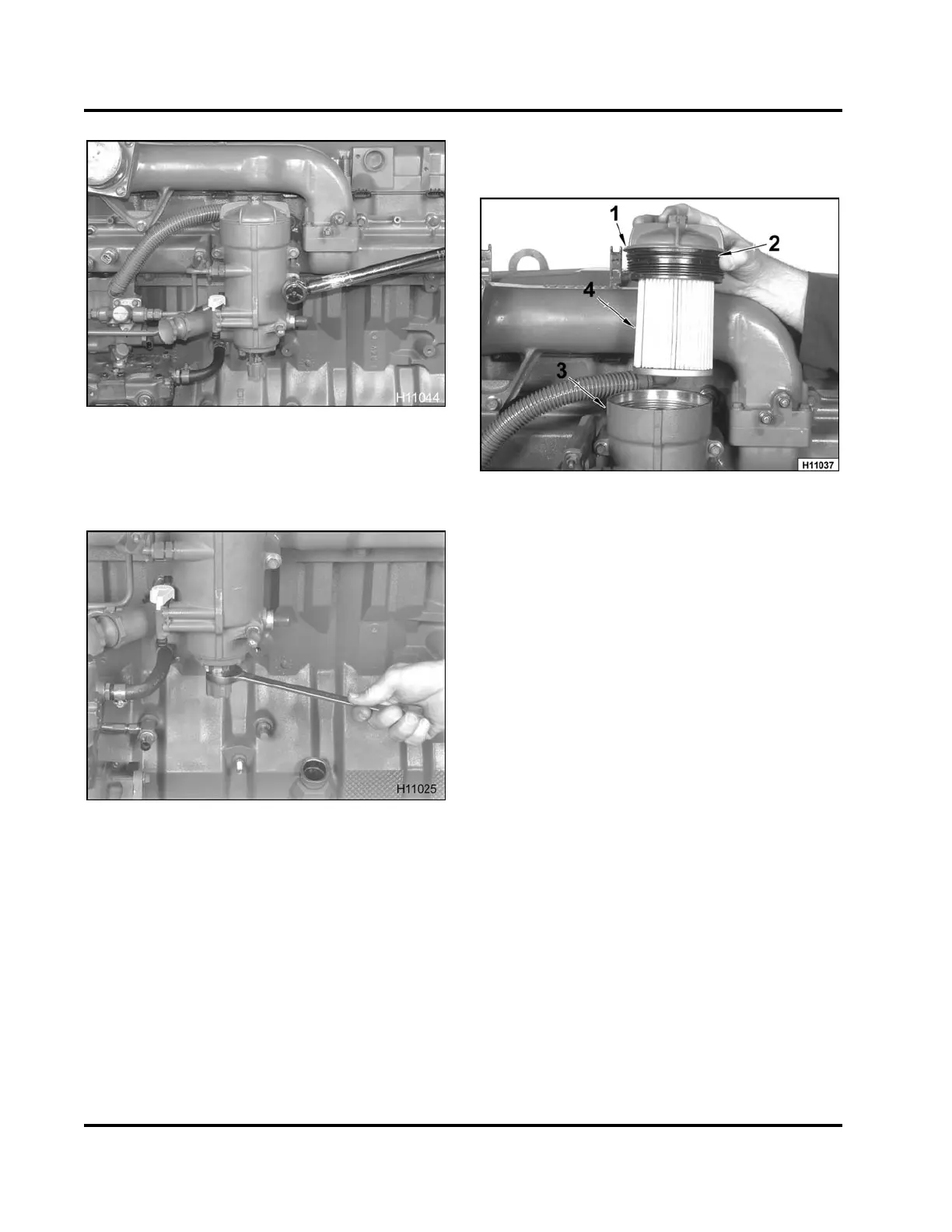

Figure 575 Fuel filter mounting bolts
5. Tighten mounting bolts to the special torqu
e value
(Table 47).
Figure 576 Installing the fuel strainer
6. If removed, install the fuel strainer into the filter
header with the open end of strainer facing the
bowl.
7. Coat fuel bowl threads and a new O-ring with
clean fuel. Thread fuel bowl into fuel filter header
assembly and torque to the special torque value
(Table 47).
Figure 577 Installing the fuel filte r
1. Housing cover
2. O-ring
3. Fuel filter housing
4. Fuel filter element
8. Install a new fuel filter element into the fuel filter
housing.
9. Place a new O-ring gasket onto housing cover.
10. Install a new fuel filter onto housing cover.
11. Lubricate housing cover threads and O-ring
gasket with diesel fuel.
12. Thread fuel filter and housing cover in as an
assembly. Torque to the special value (Table 47).
Low-pressure Fuel Supply Pump and Tubing
1. Apply clean engine oil to a new seal and place into
low-pressure fuel pump recess.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
