410 AIR COMPRESSOR, POWER STEERING PUMP, AND POWER
TAKE-OFF
Air Compressor
WARNING: To prevent serious personal
injury, possible death, or damage to the engine
or vehicle, do the following before removing
the air compressor because of its heavy weight
and possibly high temperature. Wait until the
air compressor cools down. Also, it is advised
to have two people remove the air compressor
and power steering pump combination from the
engine, especially in chassis.
H16004
1
2
3
4
5
6
1
2
3
1
2
1
9
10
7
8
1
2
10
o
3
o
43.5
o

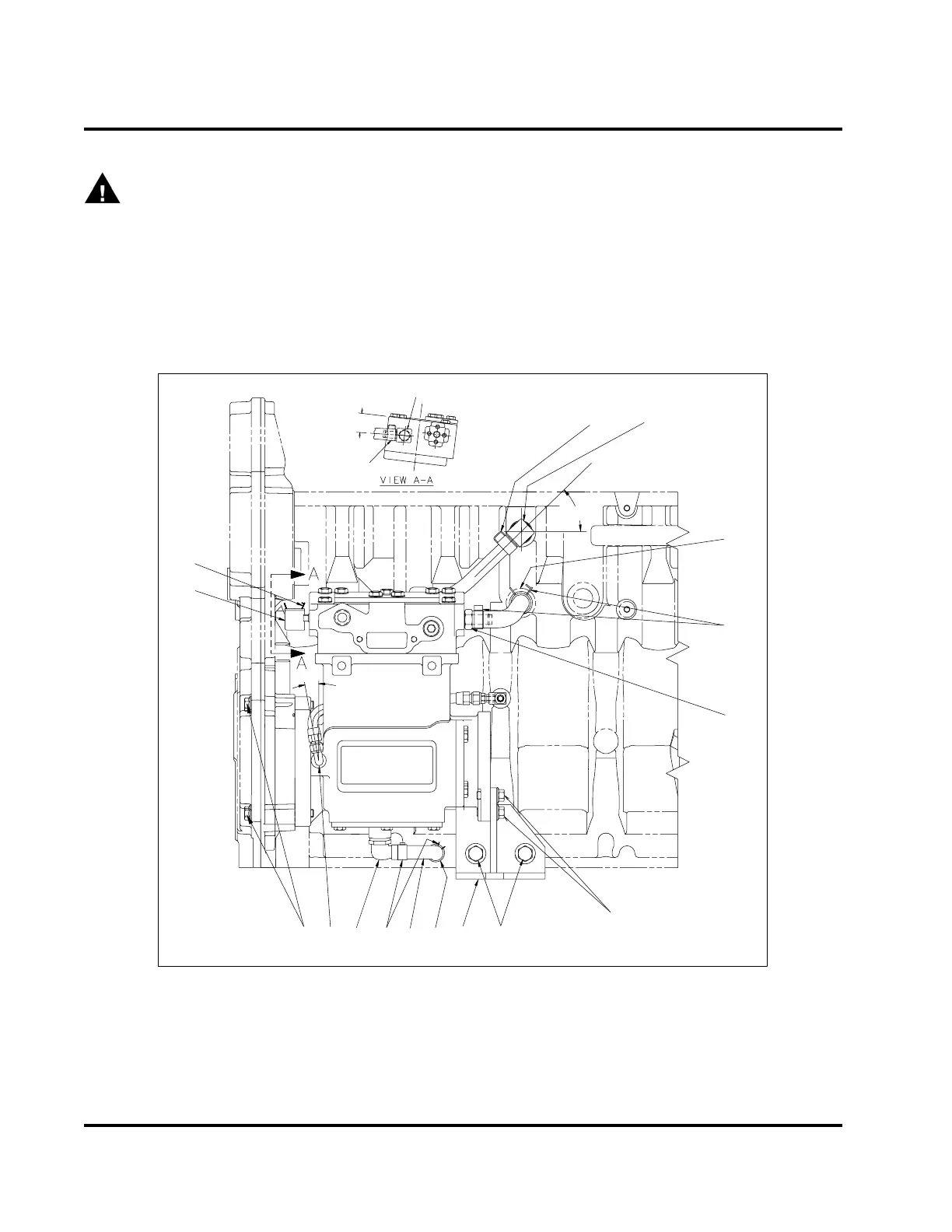

Figure 652 Air compressor mounting and connections
1. Hose clamps (6)
2. Elbow assembly, M18 (3)
3. Connector assembly, M18 (2)
4. Support bracket bolts (to
compressor), M10 x 25 (2)
5. Support bracket bolts (to
crankcase), M12 x 25 (2)
6. Air compressor support bracket
assembly
7. Fitting (NPTF), 3/8 x 1/2
8. Drain hose elbow
9. Elbow assembly, M10 (oil
supply)
10. Air compressor mounting bolts,
M12 x 80 (2)
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
