210 OIL PAN AND O IL SUCTION TUBE

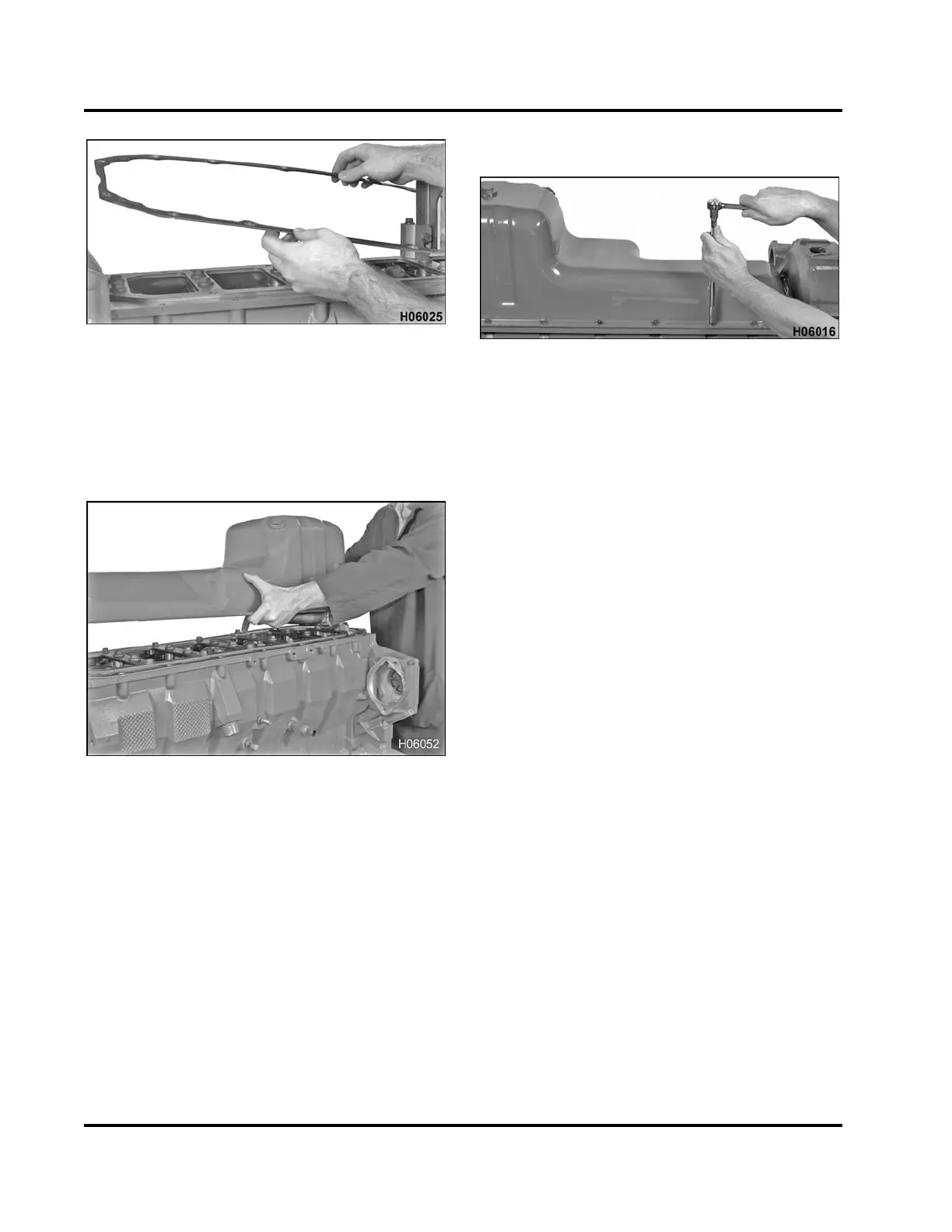

Figure 293 Installing the oil pan gasket
2. Before the RTV sealant dries (tack free), install
a new oil pan gasket on the crankcase mounting
surface. Make sure that the dowel on the gasket is
aligned with the hole on the crankcase mounting
surface.
Figure 294 Installing the oil pan
3. Install the oil pan onto the crankcase.
Figure 295 Installing oil pan mounting bolts
4. Install 18 oil pan mounting bolts (M8 x 24).
Tighten all bolts to the special torque value (Table
23).
300 Watt Oil Pan Heater (Optional)
An optional 300 Watt Oil Pan Heater is available for
service. See (1171848R1 300 Watt Oil Pan Heater
Kit, page495) for installation procedure.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
