168 FRONT COVER AND RELAT ED COMPONENTS
Vibration Damper, Damper Hub, and Wear Sleeve

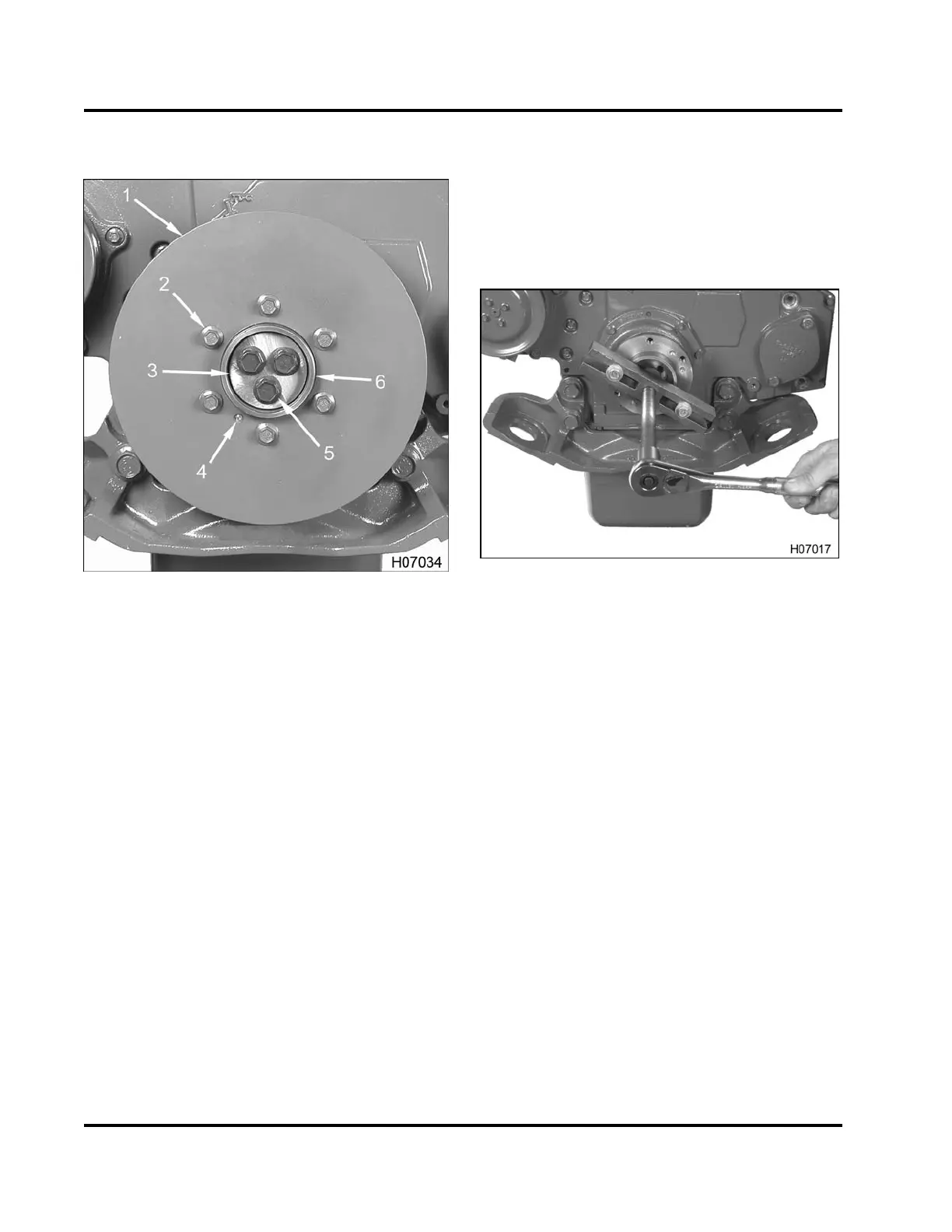

Figure 224 Vibration damper assembly
1. Vibration damper
2. Bolt, M10 x 16 (6)
3. Damper retaining plate
4. Dowel
5. Bolt, M12 x 40 (3)
6. Damper hub assembly
1. Remove six M10 x 16 bolts securing the vibration
damper to the damper hub assembly and remove
the vibration damper.
2. Remove and discard three M12 x 40 bolts
securing the damper retaining plate.
3. Remove and discard damper retaining plate.
Figure 225 Removing the damper hub assembly
4. Install two M10 x 80 bolts and washers through
H-bar puller (Table 21) and into the damper hub.
Install M10 x 80 bolt heads at equal lengths from
the vibration damper mounting surface.
5. Tighten H-bar center shaft to pull damper hub off
of crankshaft and remove damper hub.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
