350 FUEL SYSTEM
Disassembly
Fuel Filter Header Assembly

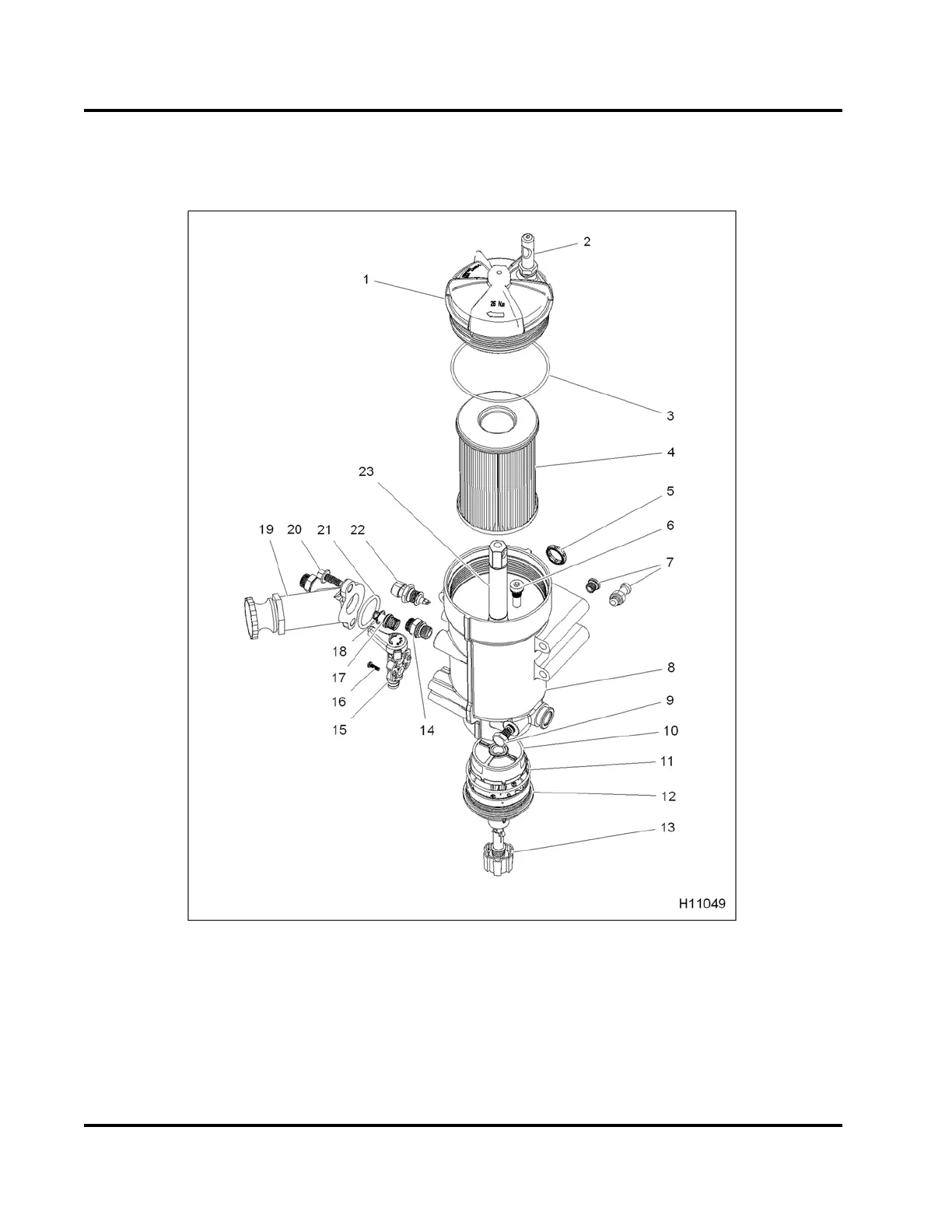

Figure 549 Fuel filter header assembly
1. Housing cover assembly
2. M12 port fitting (factory fill)
3. O-ring seal
4. Fuel filter element
5. O-ring seal
6. Fuel pressure regulator
assembly
7. Plug or EFP sensor (optional)
8. Fuel filter housing
9. M10 Plug assembly
10. Fuel strainer
11. Bowl O-ring seal
12. Fuel bowl (with heater option)
13. Drain valve
14. Fitting assembly, 3/8 tube
15. Water drain valve assembly
16. Self tapping screw (4)
17. Cartridge check valve
18. Retainer ring
19. Primer pump assembly
20. Bolt, M8 x 20 (2)
21. Primer pump seal
22. Water In Fuel (WIF) sensor
23. Stand pipe
