192 FRONT COVER AND RELAT ED COMPONENTS
7. Retighten three M12 x 40 damper bolts in
sequence to special torque (Table 20) several
times until each bolt has no movement.
Vibration Damper assembly
Three Rubber Vibration Damper Kits are available
for International® DT 570 and HT 570 Diesel
Engines. See (TSI-08-12-20 Rubber Vibration
Damper Replacement Kits, page480).
CAUTION: To prevent engine damage, verify damper
hub dowel pin is aligned with dowel hole of the
vibration damper assembly.

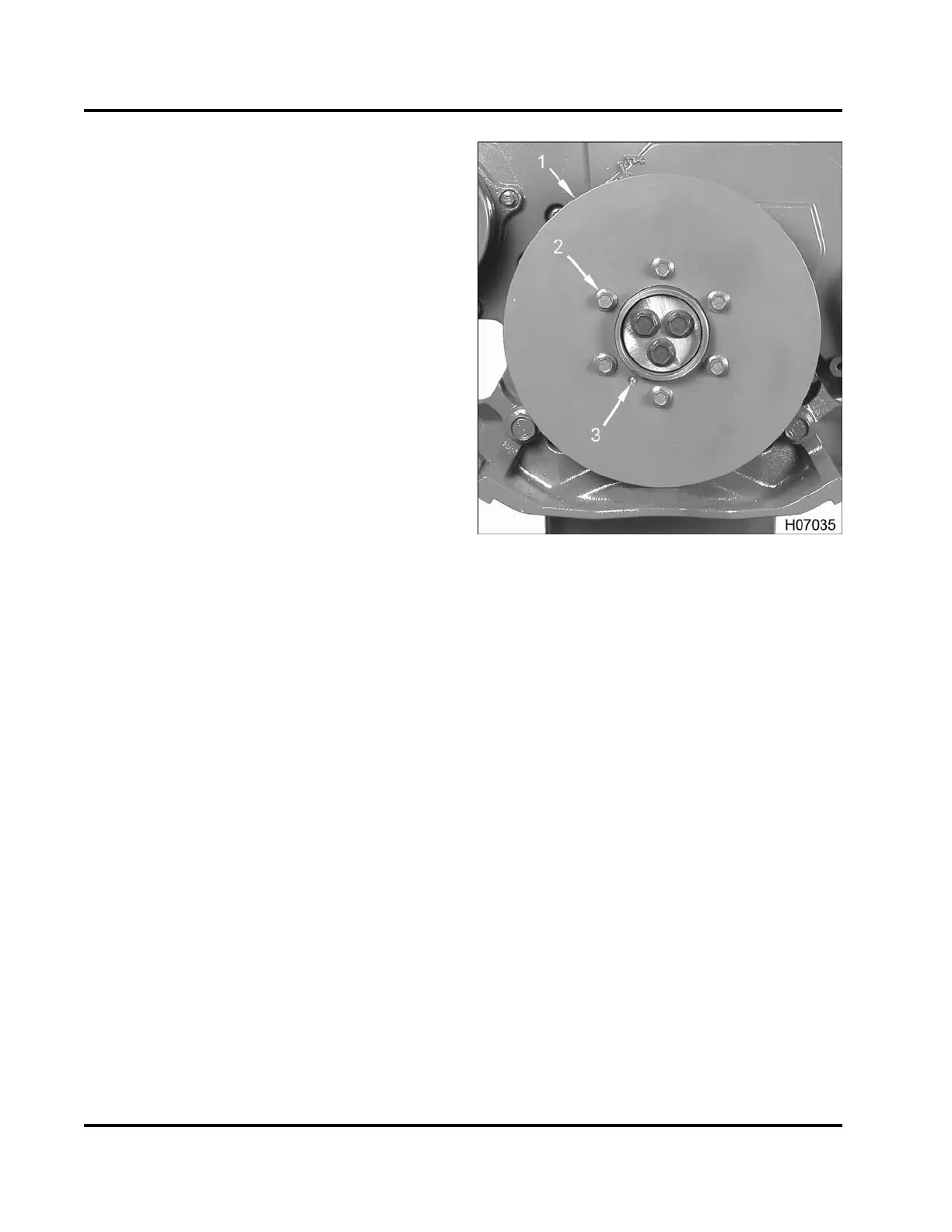

Figure 266 Vibration damper assembly
1. Vibration damper
2. Bolt, M10 x 16 (6)
3. Dowel pin
1. Align dowel hole in vibration damper with dowel
pin on damper hub and install six M10 x 16 bolts
finger tight.
2. Torque bolts to special torque (Table 20).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
