Navistar INTERNATIONAL DT 466 - Injection Control Pressure (ICP) System Components and High-Pressure Oil Flow

26 ENGINE SYSTEMS
Injection Control Pressur e (ICP) System
Components and High-pressure Oil Flow

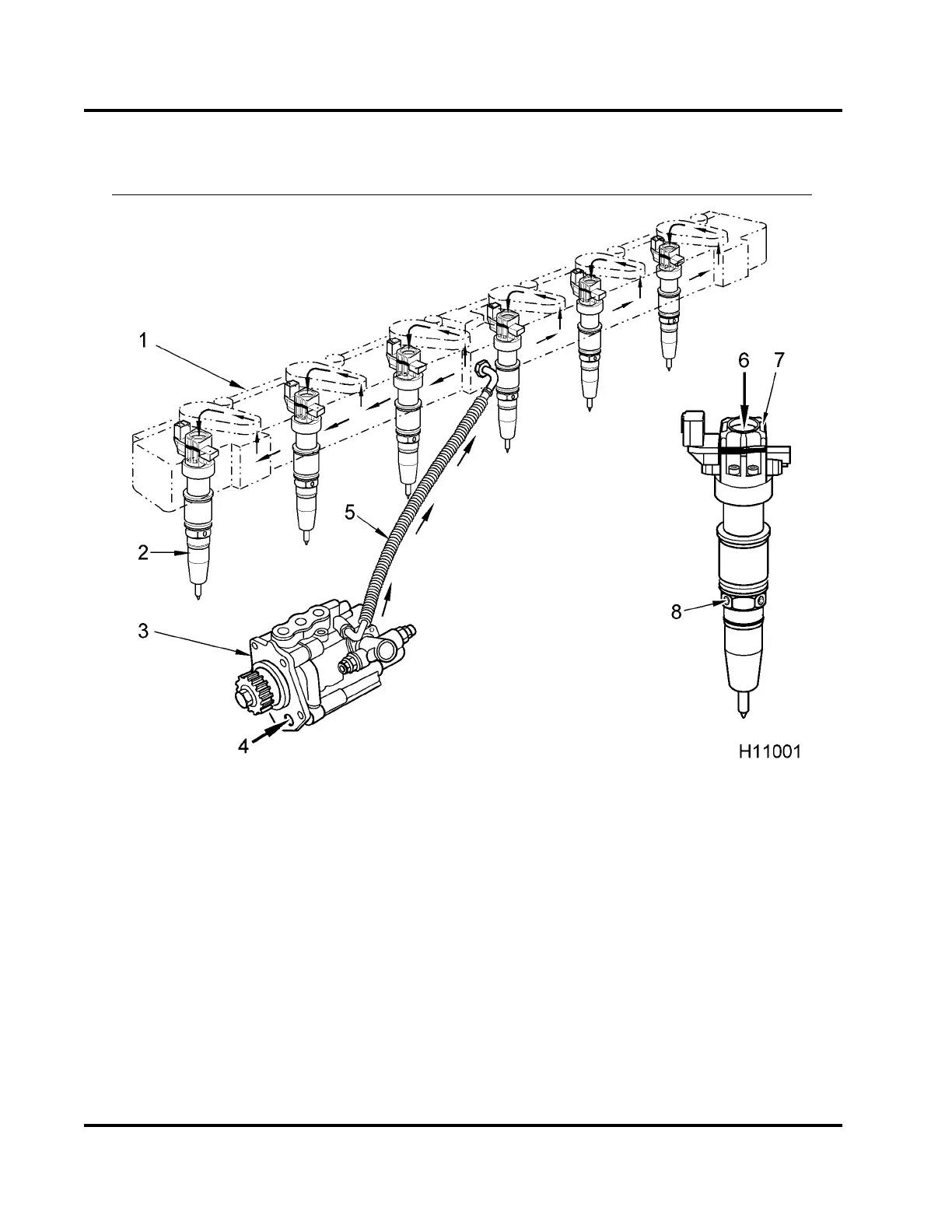

Figure 20 Injection Co
ntrol P ressure (ICP) system
1. High-pressure oil
manifold
assembly
2. Fuel injector
3. High-pressure pum
p assembly
4. High-pressure oil i
nlet (pump)
5. High-pressure oil ho
se
6. High-pressure oil
inlet (injector)
7. Oil exhaust port (2)
8. Fuel inlet (4)
EGES-265-2
