CRANKCASE, CRANKSHAFT, AND CAMSHAFT 255
5. Remove the nut (M10) securing the vent and drain
tube to the intake manifold.
6. Carefully pull breather assembly out of valve
cover.
7. Remove breather and tubing assembly and place
in solvent wash tank.
OilLevelGauge
1
2
3
4
5
6
7
H06082

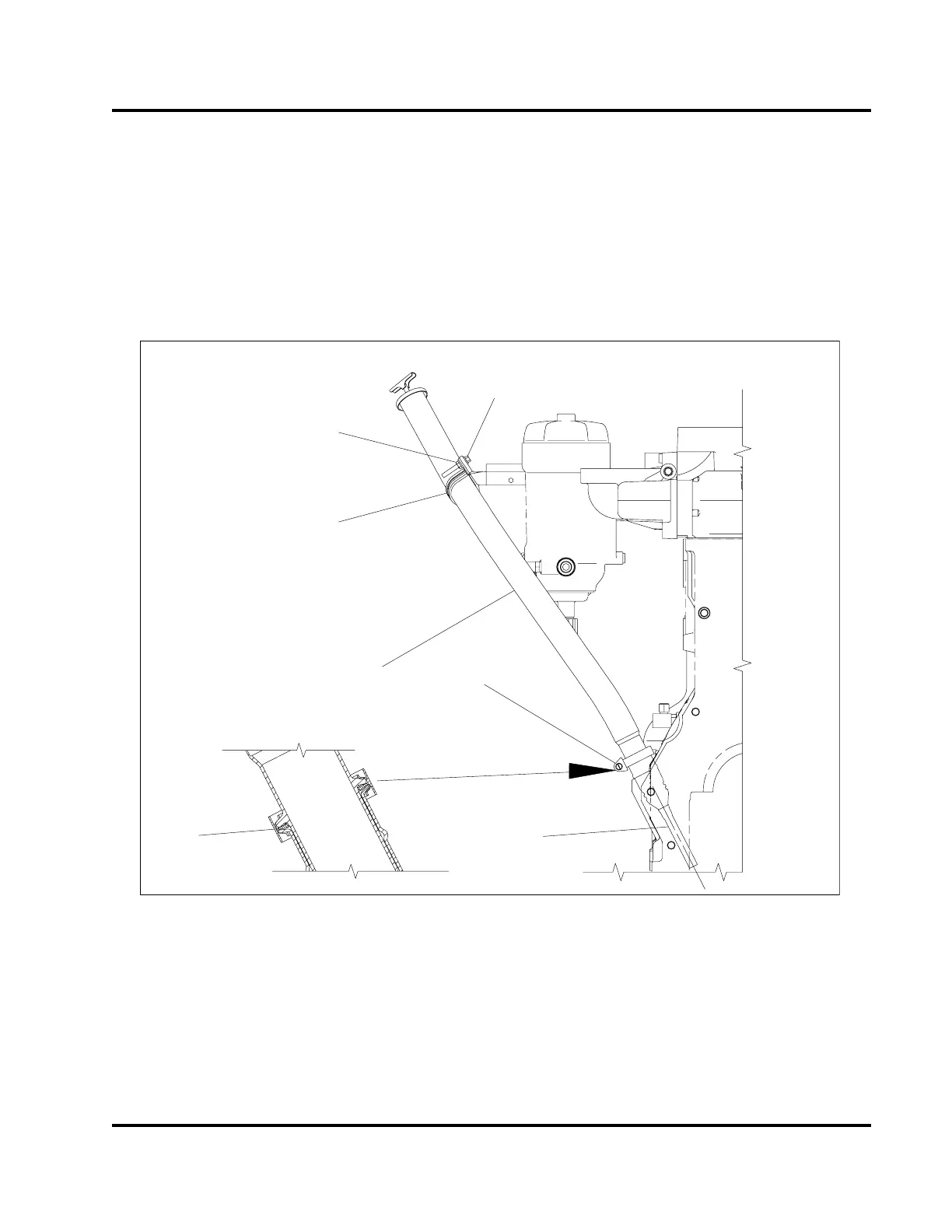

Figure 361 Oil level gauge assembly
1. Bolt, M6 x 40
2. Nut, M6
3. Cushioned clamp
4. Oil filler tube
5. Tube clamp
6. Oil level gauge tube
7. Oil dipstick tube seal
1. Remove the oil filler tube bolt (M6 x 40) and nut
(M6) at the fuel filter bracket.
2. Removethetubeclampatthecrankcaseand
discard oil dipstick tube seal.
3. If necessary, remove oil level gauge tube from
crankcase by using a brass drift and hammer.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
