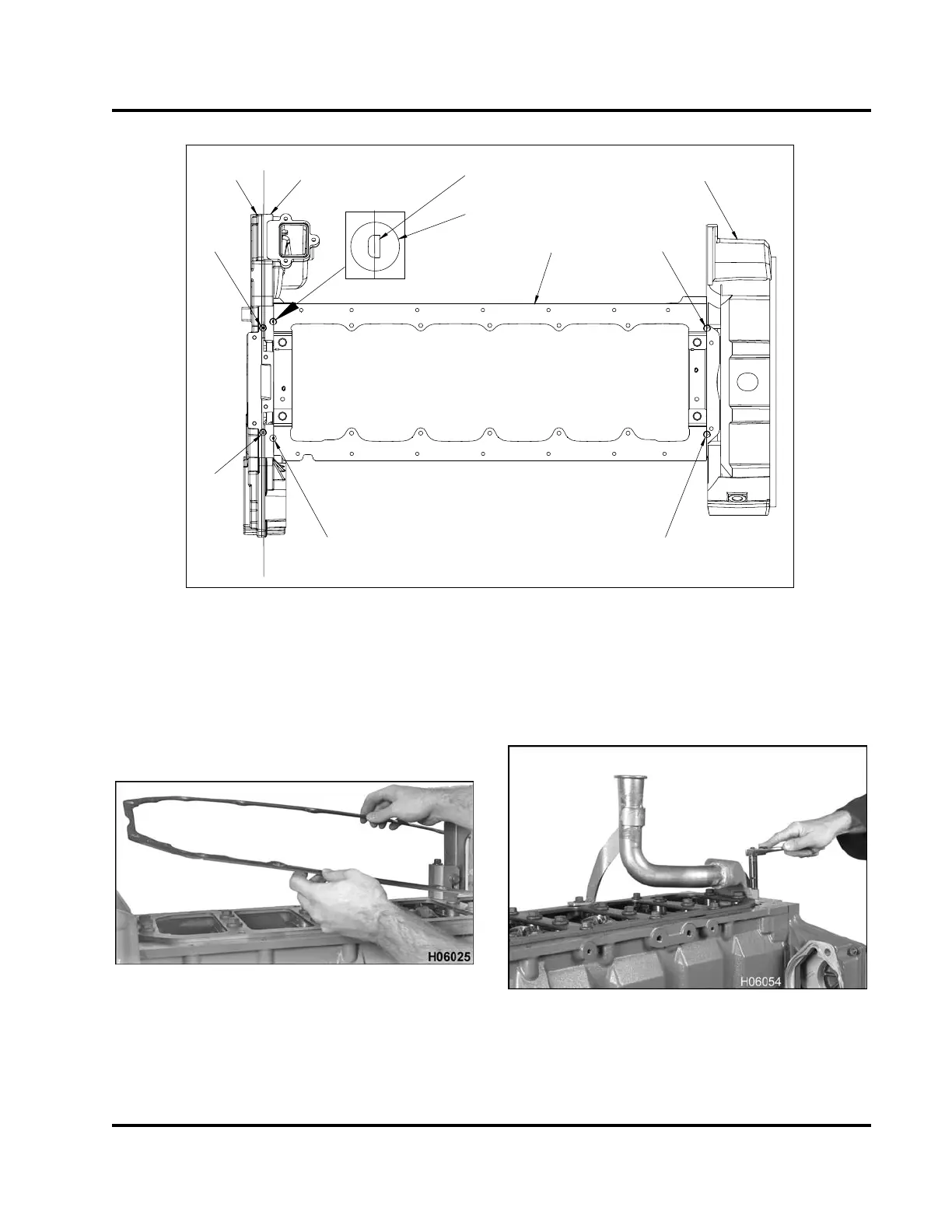

OIL PAN AND OIL SUCTION TUBE 207
12
3
4
54
6
4
4
4
4
H06031
(x 6)
Figure 286 RTV sealant locations
1. Front cover (front half)
2. Front cover (rear half)
3. Gasket
4. RTV sealant locations
5. Crankcase
6. Flywheel housing
3. Use a knife or scraper to cut through the RTV
sealant under the oil pan gasket at six locations
on the crankcase mounting surface.
Figure 287 Remo
ving the oil pan gasket
4. Remove the oil
pan gasket from the crankcase
mounting sur
face and discard.
Removing the Oil Suction Tube
Figure 288 Removing the oil suction tube
1. Remove two (M8 x 35) mounting bolts from the oil
suction tube.
EGES-265-2
